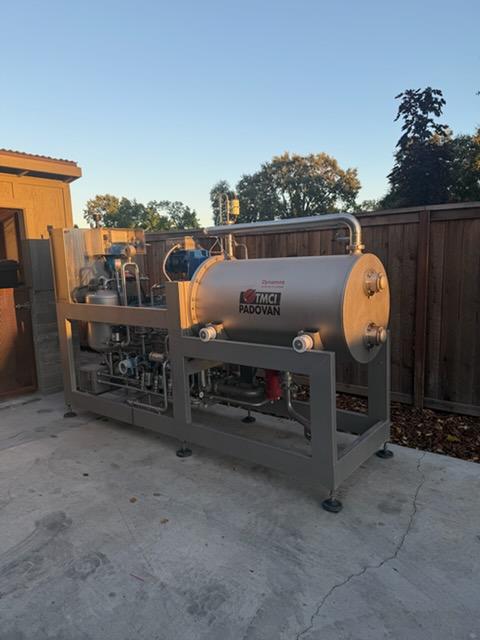

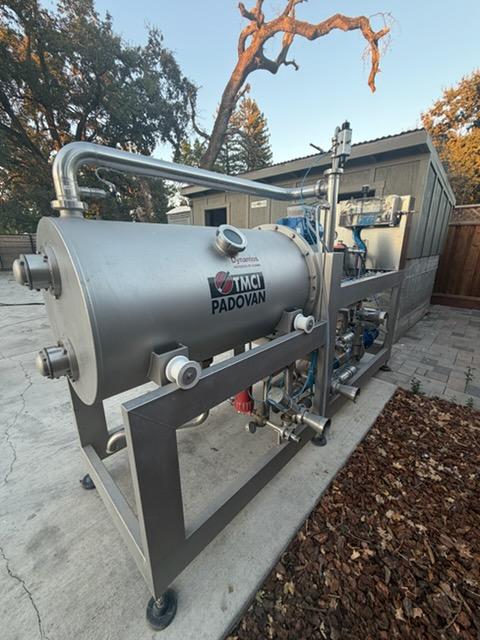

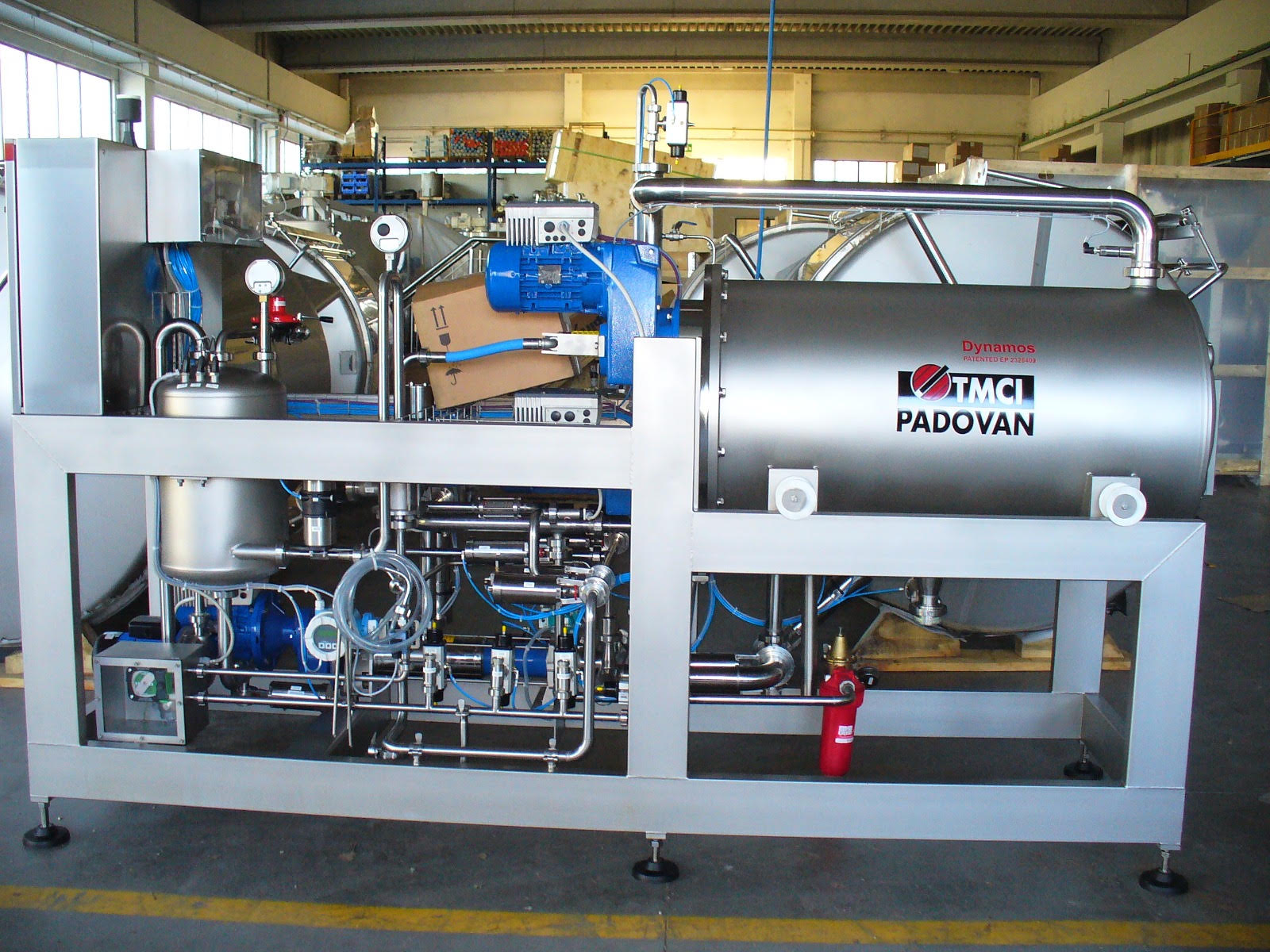

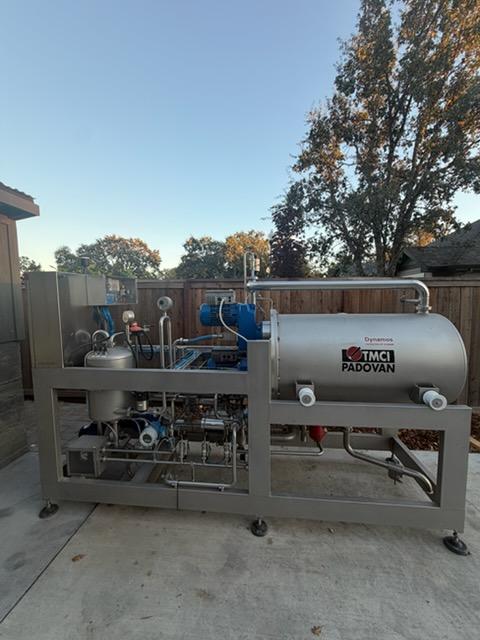

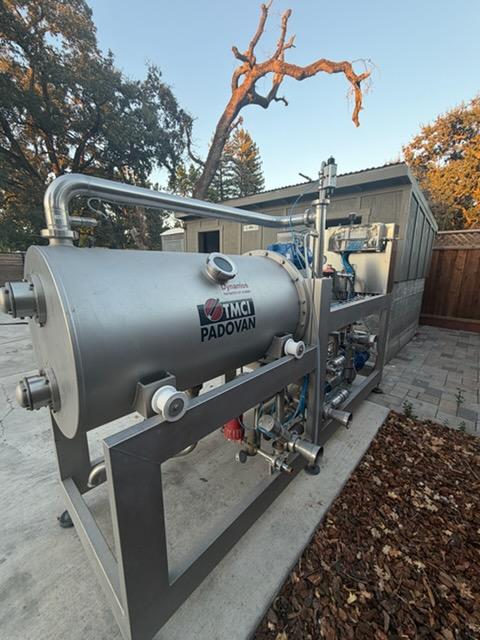

TMCI Padovan Dynamos 10 Dynamic Crossflow Filter, 2016 – 10 m² Ceramic Membrane Filtration System

Manufacturer: TMCI Padovan

Product line: Dynamos

Model/configuration: Dynamos 10, based on 10 m² stated membrane area

Year: 2016

System type: Fully automatic rotary dynamic crossflow filtration system

Primary service: High-solids filtration / clarification / concentration

Filtration surface area: 10 m²

Membrane construction: Ceramic filtration discs

Membrane material: Ceramic, typically aluminum oxide
or zirconium oxide

Nominal membrane porosity: 0.1 µm / 100 nm

Filtration mechanism: Rotary dynamic crossflow with hydraulic/pneumatic back-pulse cleaning

Typical application streams: Wine lees, red/white wine, grape must and juice, fruit juice, sugar syrups, vinegar, and certain dairy or beverage-process liquids.

Typical nominal throughput with lees: 25–100 L/m²/hr

Estimated throughput at 10 m²: 250–1,000 L/hr / approximately 66–264 gal/hr, depending heavily on product viscosity, solids concentration, membrane condition, temperature, and desired filtrate quality

Filtration-cycle duration: Up to 96 hours before cleaning under suitable operating conditions

Cleaning: Self-cleaning / back-pulse process; CIP-capable automatic configurations

Product-contact construction: Stainless steel; Dynamos is generally offered in AISI 304, with AISI 316 product-contact construction available as an option

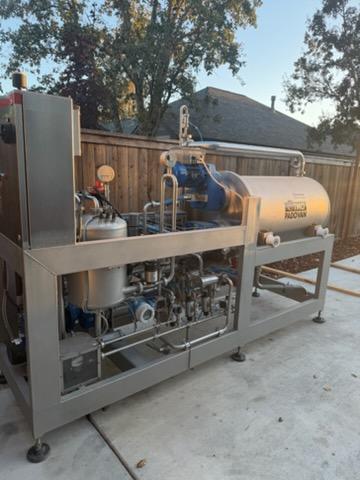

Pumping: Integrated product circulation/feed-pump system visible on skid

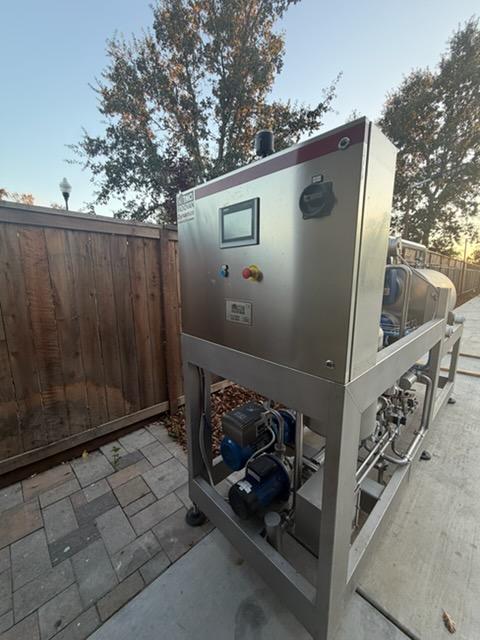

Process instrumentation: Integrated pressure indicators/transmitters, flow/control valves, pneumatic components, and local control panel

Electrical supply: 480 V, 60 Hz, 3-phase
