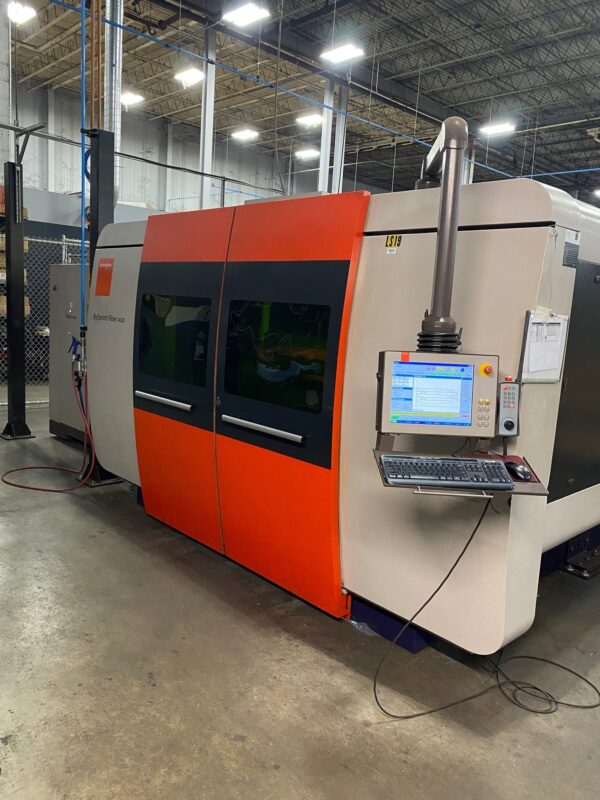

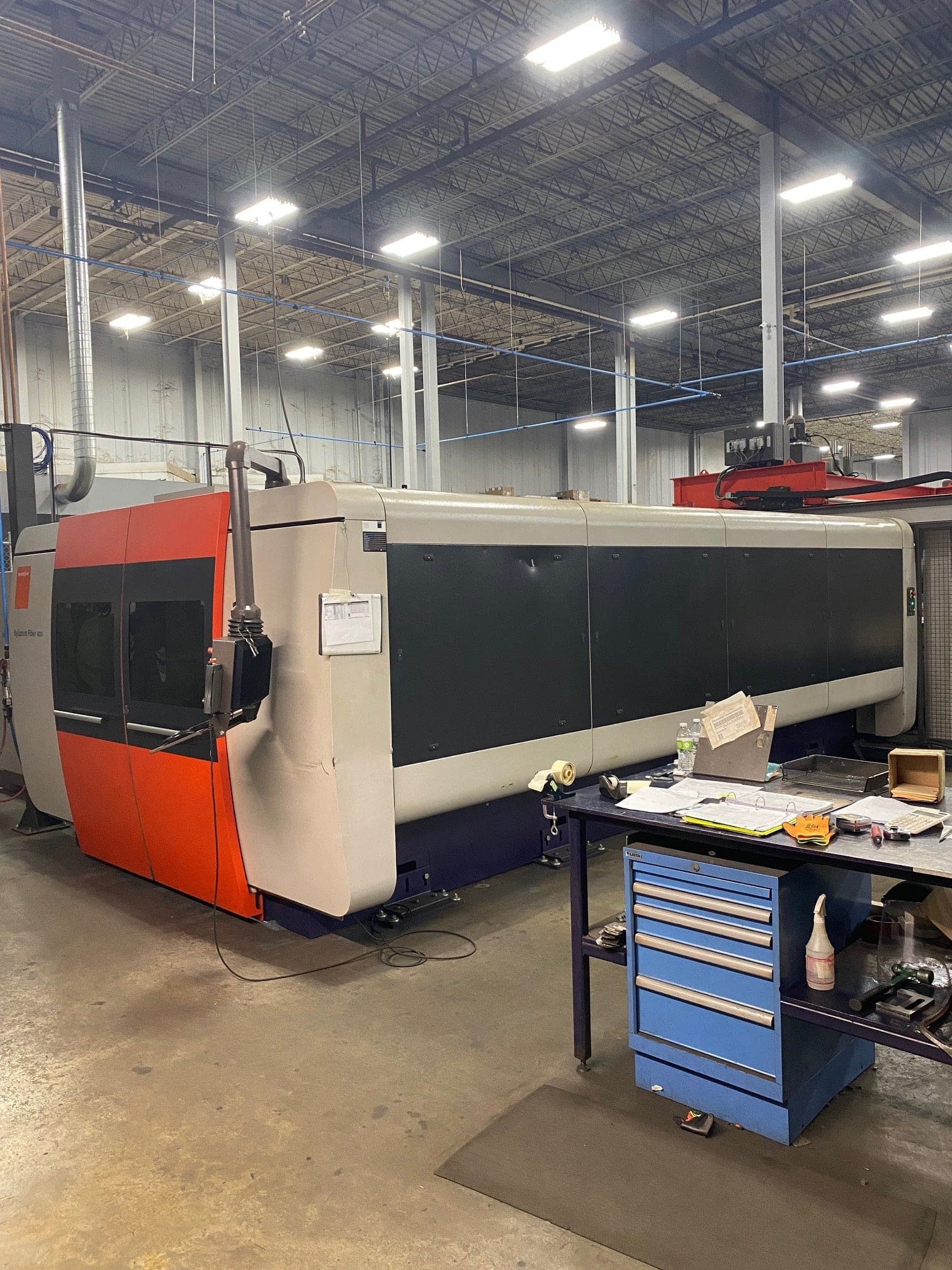

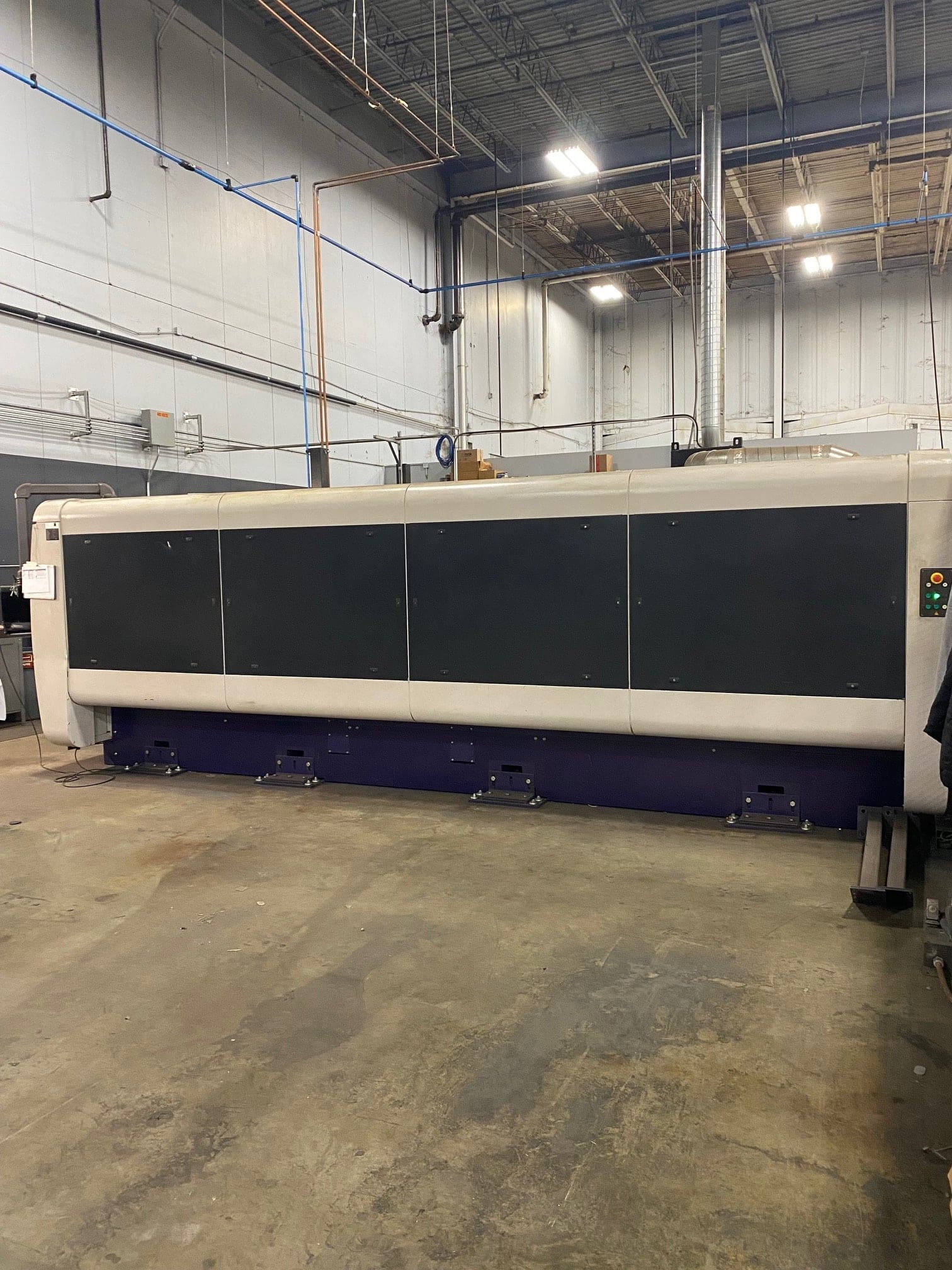

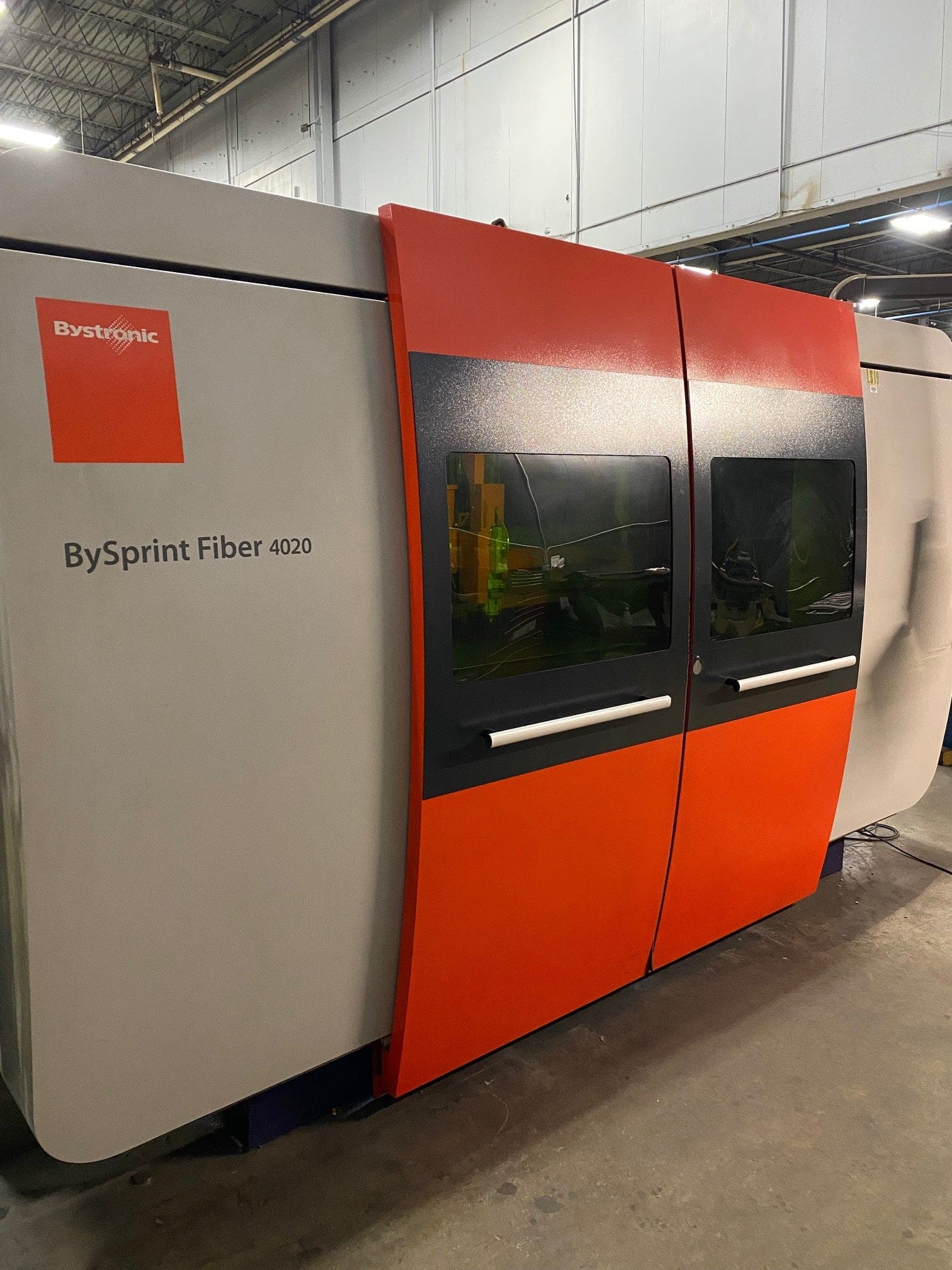

4000 Watt Bystronic Bysprint 4020 Fiber Laser, 2013 – 80″X160″ Table – Pre-Removal Price
$250,000.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:

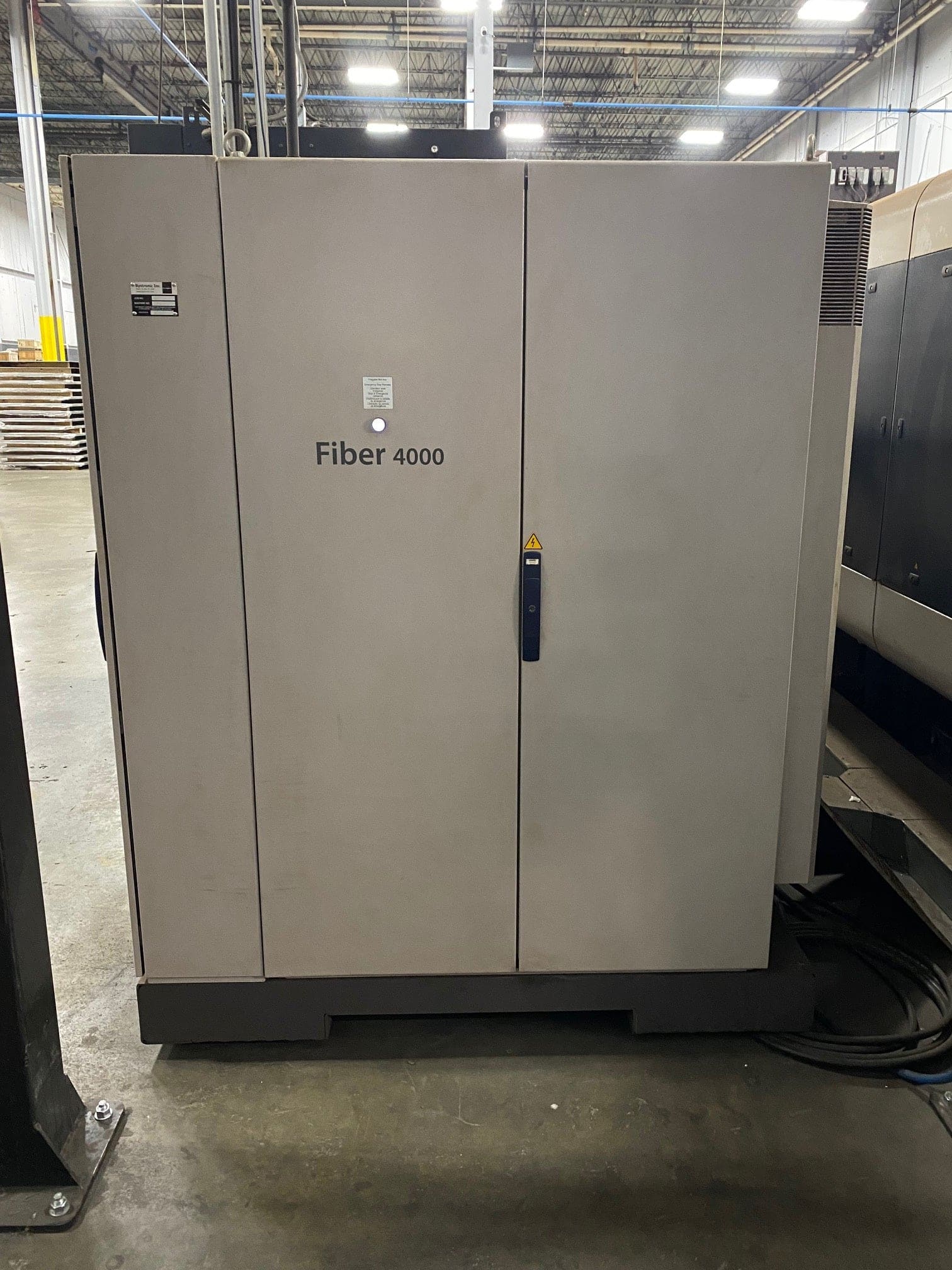

Fiber 4000 Watt
Range: 400-4000
Cutting Area –
X: 160″
Y: 80″
X: 2.75″
Nominal Sheet Size –
X: 157″
Y: 78″
Maximum Positioning Speed Parallel Axis X,Y: 3937 Inch/Min
Maximum Simultaneous Positioning Speed: 5511 Inch/Min
Positioning Accuracy Pa*: +-0.004″
repeatability Ps*: +-0.002″
Maximum Workspace Weight: 3,484 Lbs
Max Sheet Thickness:
Steel: 0.75″
Stainless Steel: 0.625″
Aluminium: 0.625″
Brass: 0.312″
Copper: 0.312″
Machine Dimensions:
Length: 541″
Width: 262″
Height: 101
Weight: 33,069 Lbs
Machine Comes with The Following:

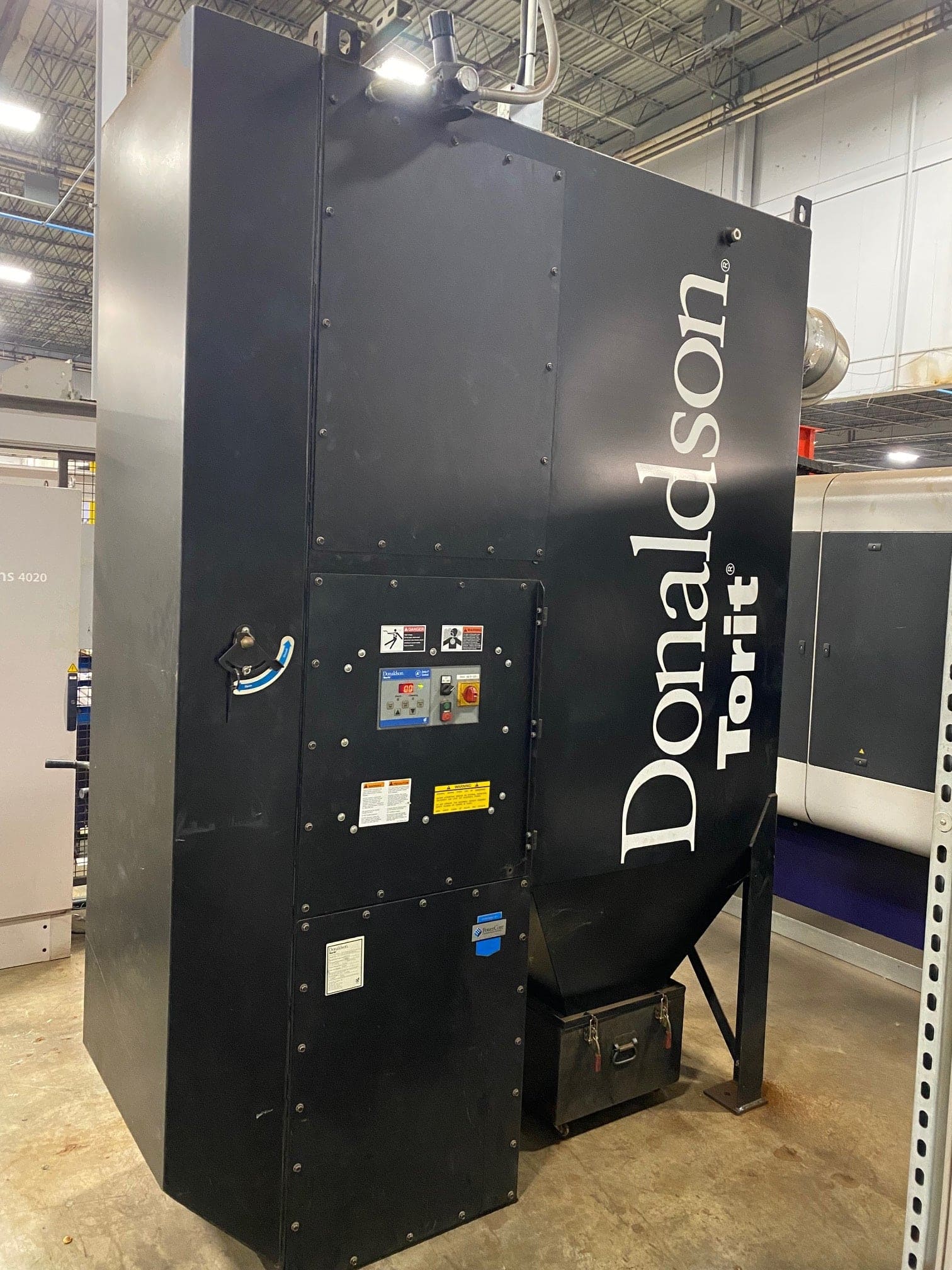

Donaldson Torit TG 6 dust collector
Dust Collector Duct Work
Service Unit (gas and air)
EF Chiller
Light Barriers
Electrical Manuals
Operator Manuals
Maintenance Records
