7000 Watt Mazak Optiplex Nexus 3015 S7 Fiber Laser, 2022 – 5′ x 10′ Table
$420,000.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:

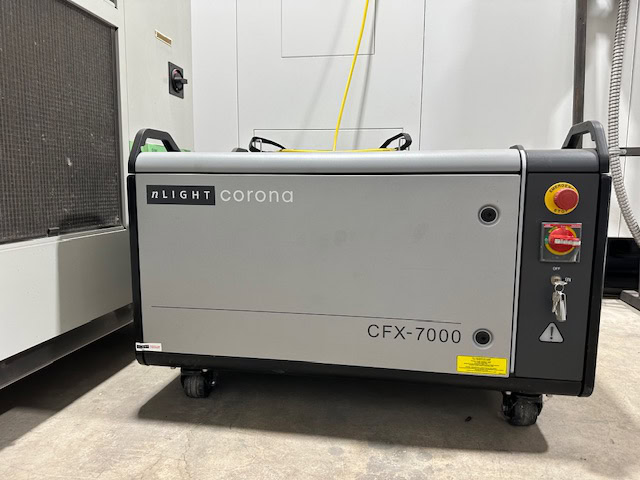

Laser: 7kW nLight Corona CFX-7000 fiber laser.
Control: Mazatrol PreviewG CNC control.
Sheet Size: 60.04″ x 120.08″ (5′ x 10′)
Travel:
X-axis: 122.04″
Y-axis: 62.20″
Z-axis: 5.91″
Positioning Accuracy:
X,Y axis: 0.002″/19.68″
Z axis: 0.0004″/3.94″
Repeatable Accuracy: 0.0012″ (X,Y, and Z axes)
Rapid Travels: 2,362 IPM (X, Y, and Z axes)
Work Table Height: 35.43″
Maximum Load Capacity: 2,050 lbs.
Install Dimensions: 330″ W x 170″ L
Machine Unit Dimensions: 119.5″ W x 392.1″ L x 95.3″ H
Machine Unit Weight: 28,330 lbs
CNC Type: MAZATROL PreviewG
Material Thickness:
Mild Steel: Up to 1″.
Stainless Steel: Up to 1″.
Aluminum: Up to 0.750″.
