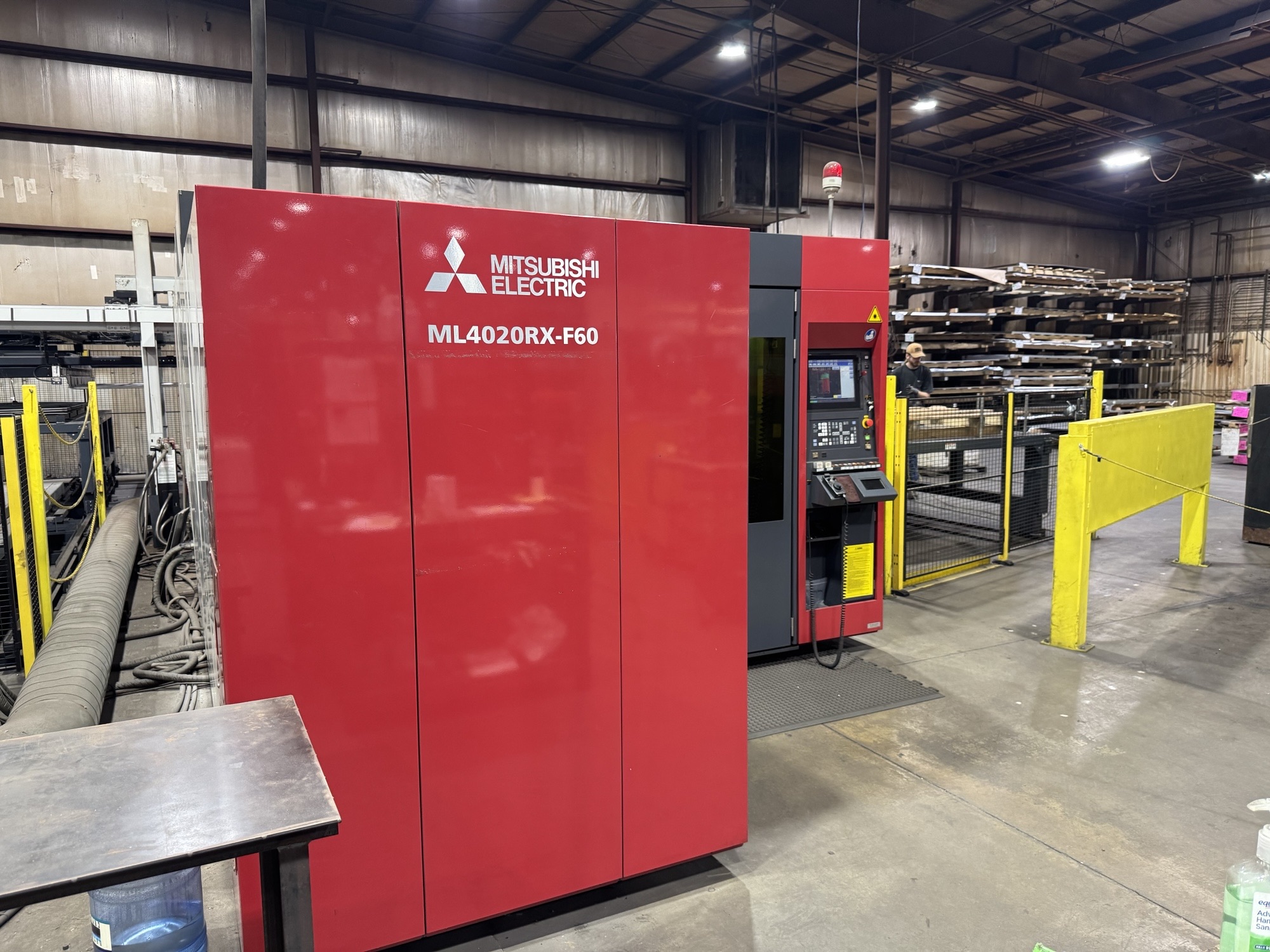

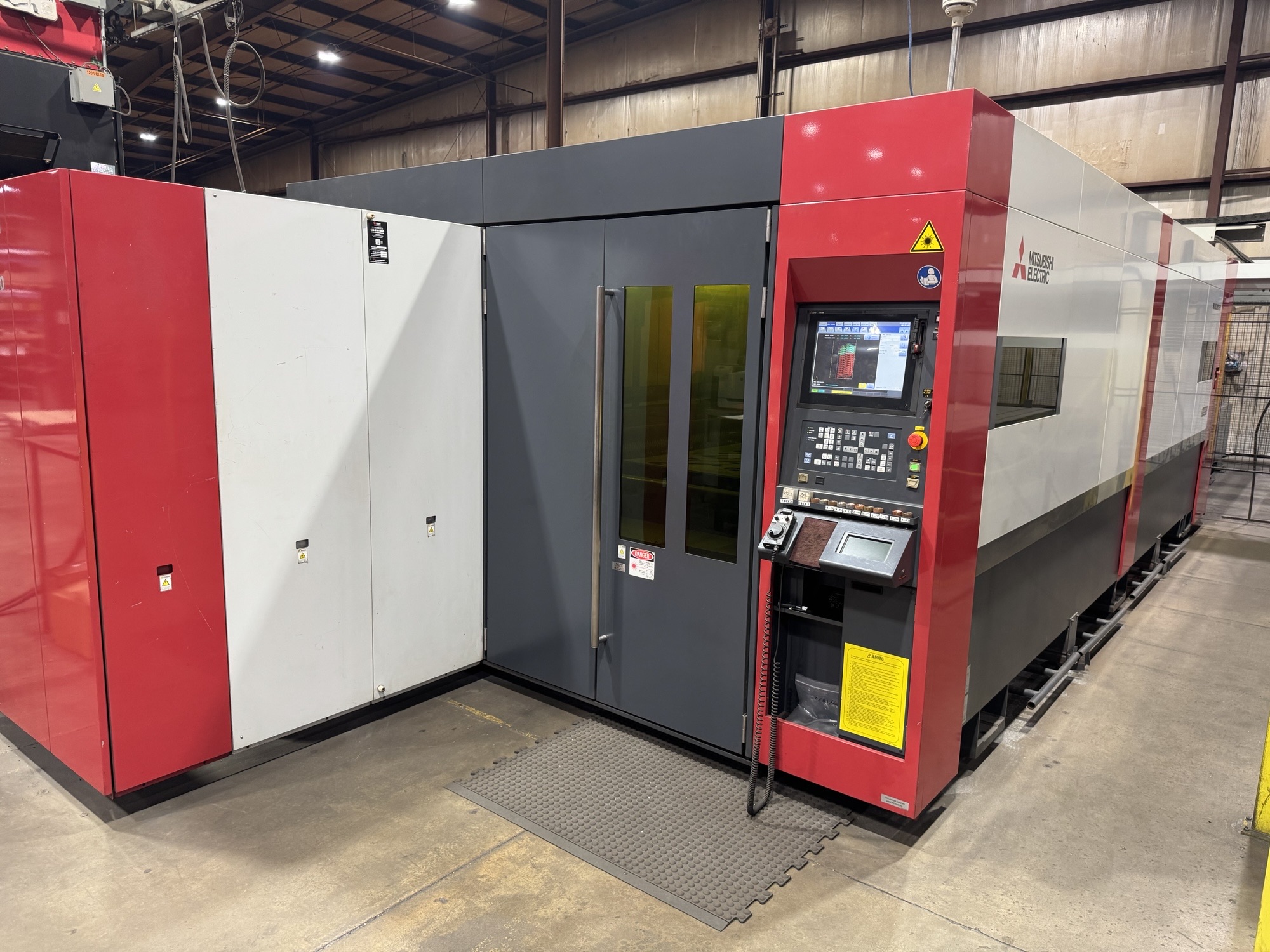

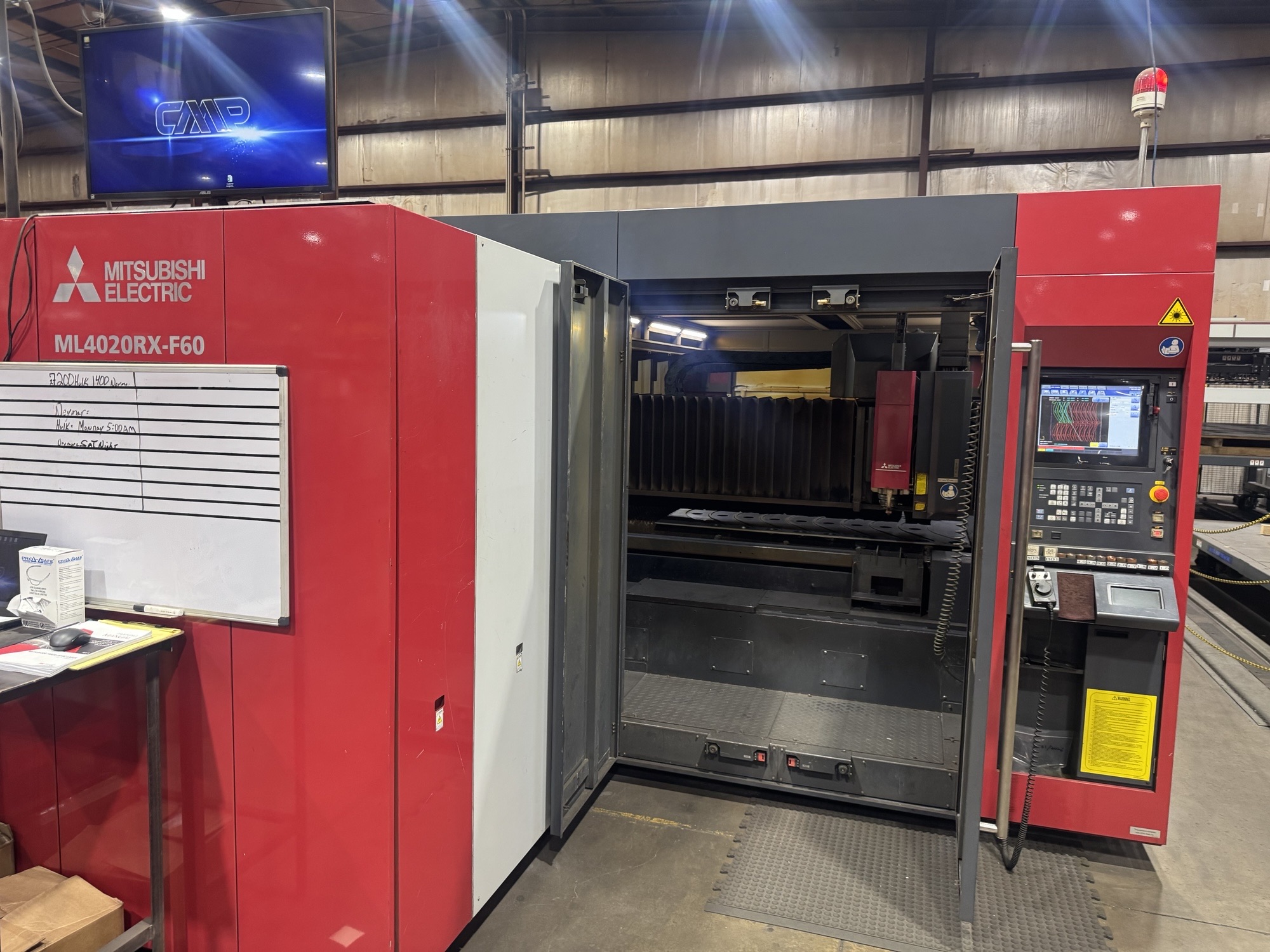

8,000 Watt Mitsubishi ML4020RX-F60 Fiber Laser, 2020 – 6’x12′ Table, Dust Collector, Chiller, Pallet Changer

The Mitsubishi ML4020RX-F60 is a high-production 4m x 2m fiber laser cutting system designed for processing large-format sheet metal with high-speed, precision cutting. The RX-F platform features Mitsubishi Electric control, a Zoom Head processing head, automatic pallet changing, and an 8 kW fiber laser source.

Laser Power: 8,000 Watts
Model: ML4020RX-F60
Machine Series: RX-F
Machine Design: Flying Optics
Control: Mitsubishi Electric Full-Touch Screen
Processing Head: Zoom Head
Laser Source: 8 kW Fiber Laser

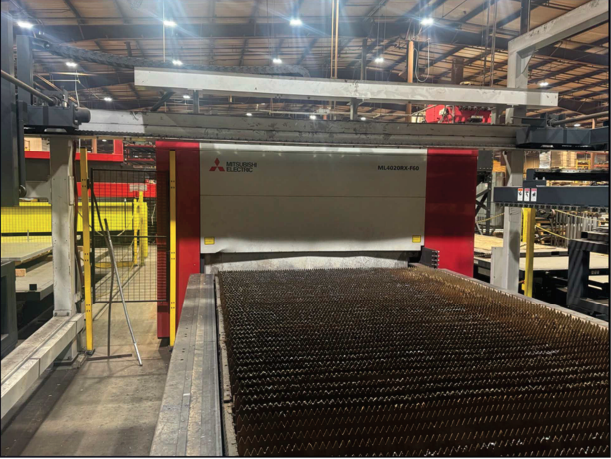

Table Size: 6′ x 12′
Maximum Sheet Size: 159.4″ x 81.1″
Maximum Workpiece Weight: 3,638 LBS.
X-Axis Travel: 161.4″
Y-Axis Travel: 82.7″
Z-Axis Travel: 5.9″
Rapid Traverse: Up to 459 IPM / 140 M/min
Maximum Processing Feed Rate: Up to 2,756 IPM / 70 M/min
Positioning Accuracy: ±0.002″ / 500 mm
Repeatability: ±0.0004″
Drive System: Intelligent AC Servo

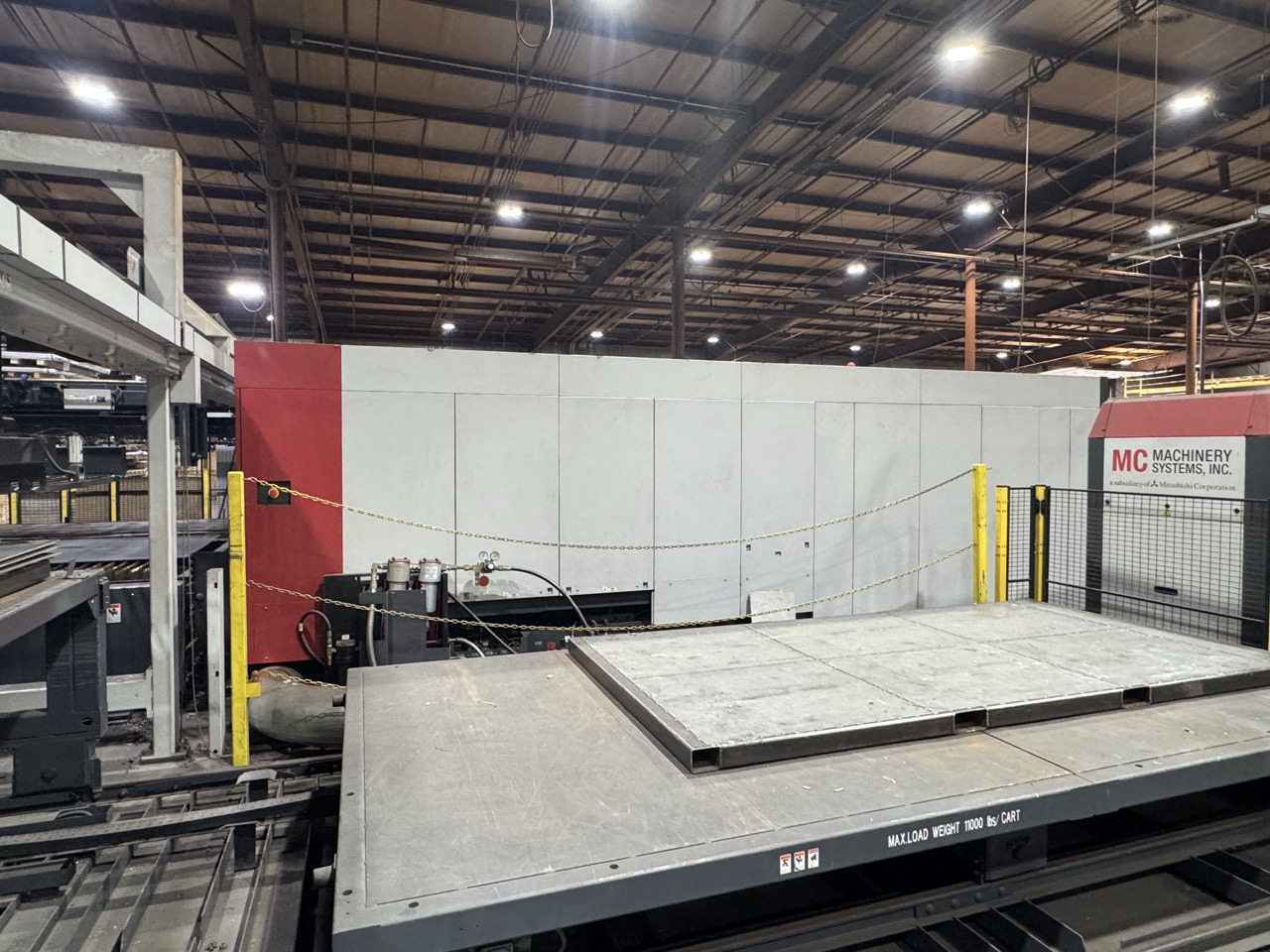

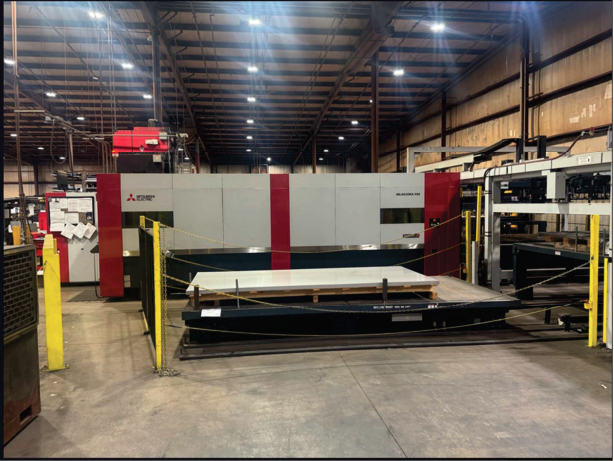

Pallet Changer: Automatic Dual Pallet Changer
Approx. Pallet Changer Weight: 11,000 lbs
Approx. Machine Weight: 33,000 lbs

Discharge Hours – 18,219
