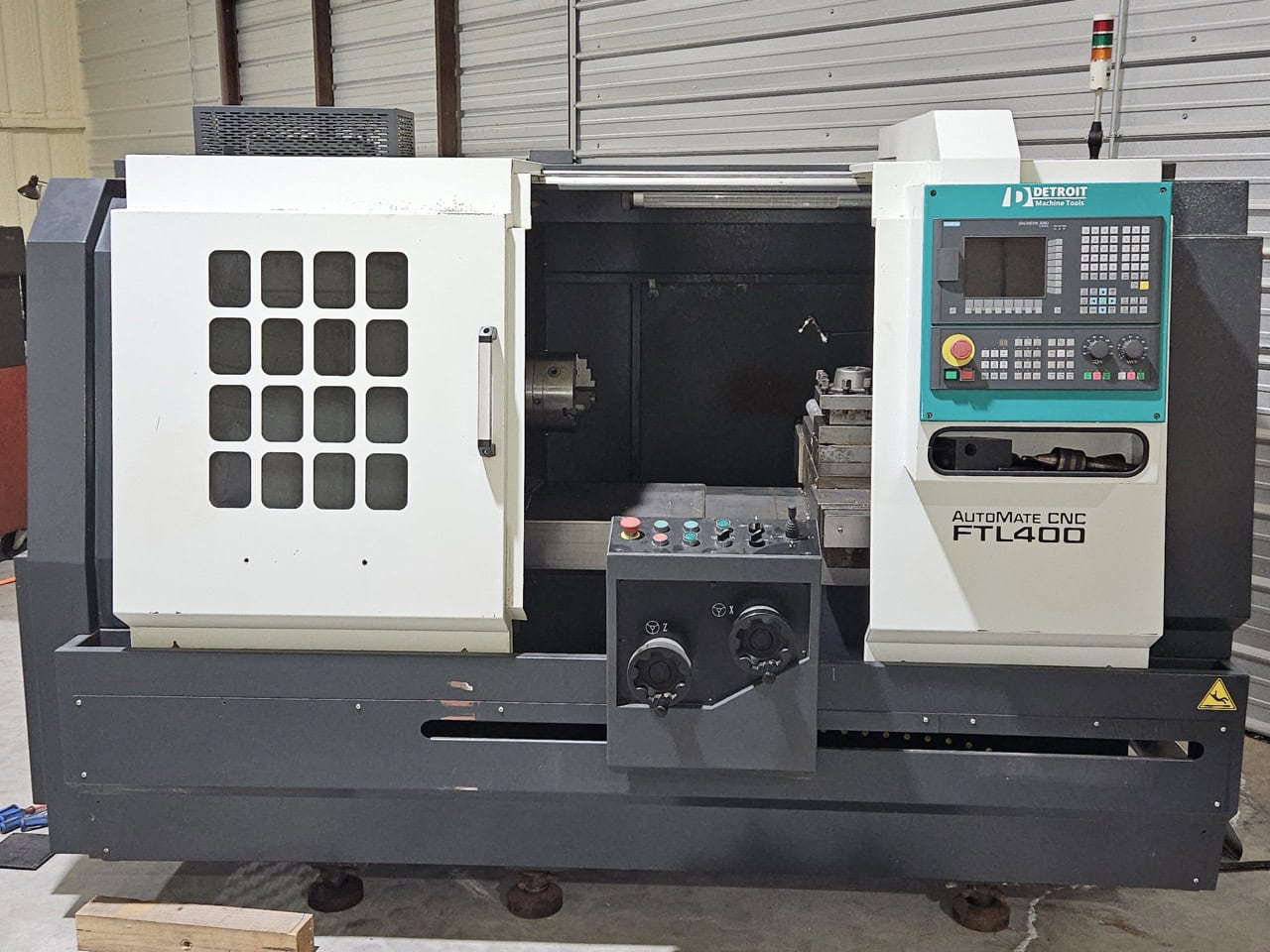

Automate CNC Flash FTL400 Lathe, 2016 – Tailstock

Max Swing Over Bed: 20”
Max Swing Over Carriage: 6.5″ over gang plate, 9” with gang plate removed
Max Length of Workpiece: 33” center to center
Machine Repeatability: .0002”
X Axis: 11”
Z Axis: 28”
X-Axis Rapids: 750 IPM
Z-Axis Rapids: 750 IPM
Max Cutting Speed: 315 IPM
Spindle Power: 7.5 HP
RPM Range: 50-2000
Spindle Bore: 2.44”
Spindle Nose Taper: A2-6
Chuck Type: 8” Manual 3-Jaw Chuck
Type: Manual
Quill Travel: 4”
Quill Taper: MT4
Machine Weight: 5500 Lbs
Machine Dimensions: 105” x 63” x 70″
Shipping Weight: 5850 Lbs
Coolant Capacity: 17.2 Gal
Hydraulic Capacity: 13.2 Gal
Power (Standard): 220V 3 Phase Power
Amperage Requirements: 31.5 Amp
