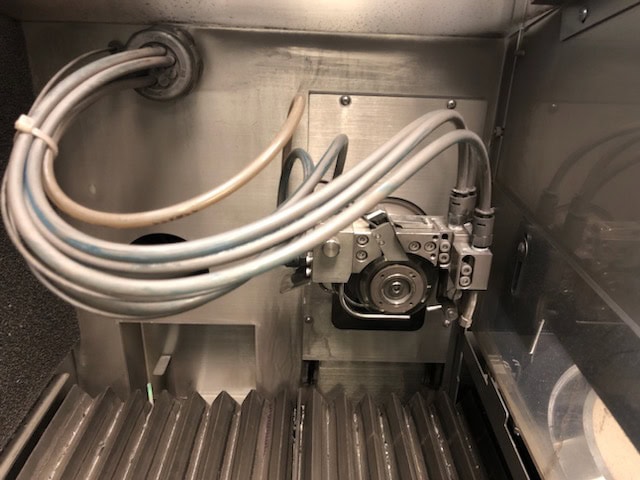

DISCO DAD3240 Dicing Saw, 2018
$74,900.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
-Max. workpiece size: ฮฆ8 inch / Square die 200mm
-X-axis:
-Cutting range: 210 mm
-Cutting speed: 0.1 ๏ฝ 600 mm/s
-Y-axis:
-Cutting range: 210 mm
-Index step: 0.0001 mm
-Z-axis:
-Max. stroke: 32.2 mm
-Moving resolution: 0.00005 mm
-ฮธ-axis:
-Max. rotating angle: 320ยฐ
-Spindle:
-Rated output: 1.8 kW
-Rated torque: 0.29 Nยทm
-Rotation speed range: 6,000 ๏ฝ 60,000 minโปยน
-Dimensions: 25.59″ ร 37.40″ ร 62.99″
-Weight: Approx. 1,168 pounds
