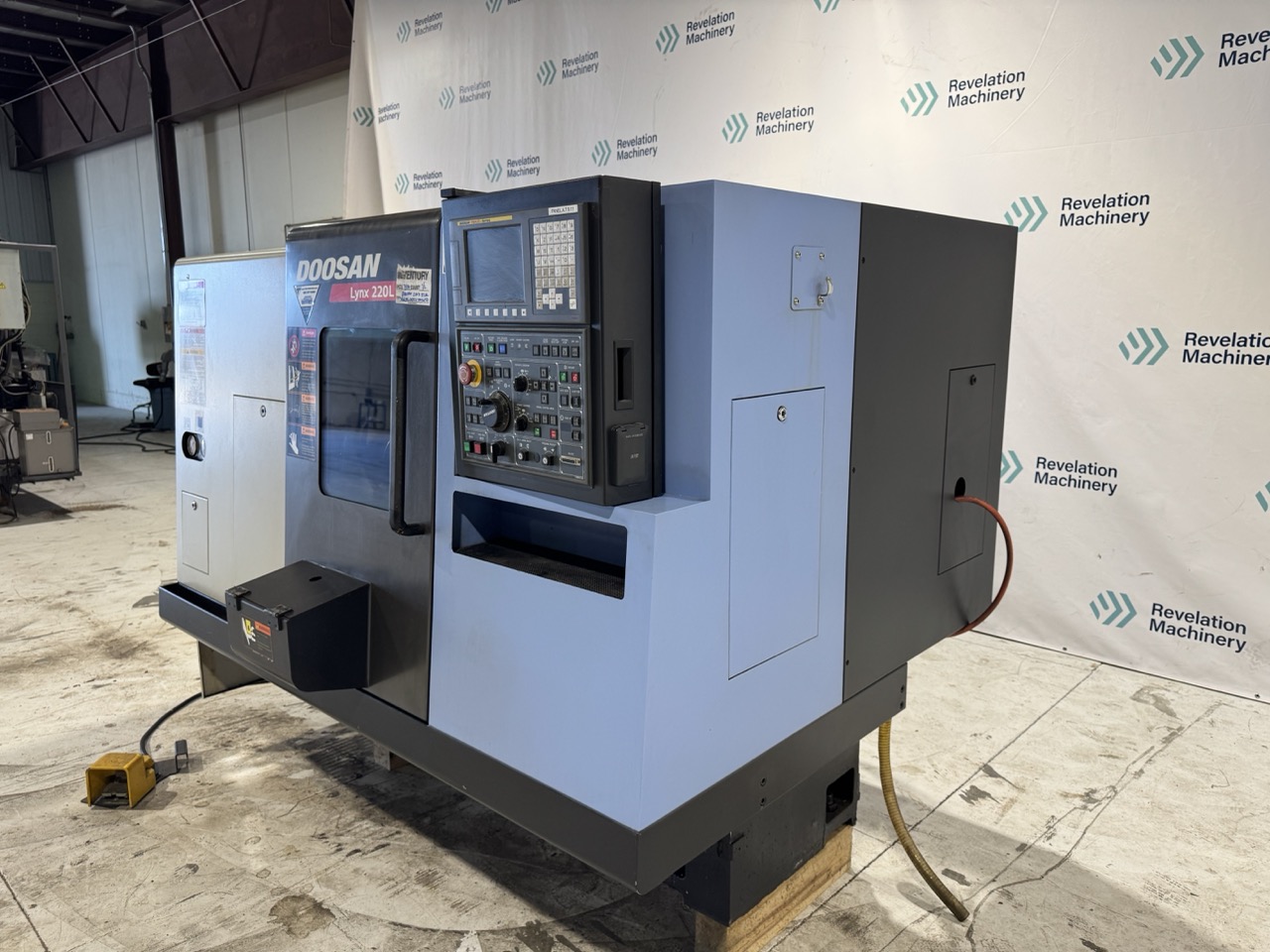

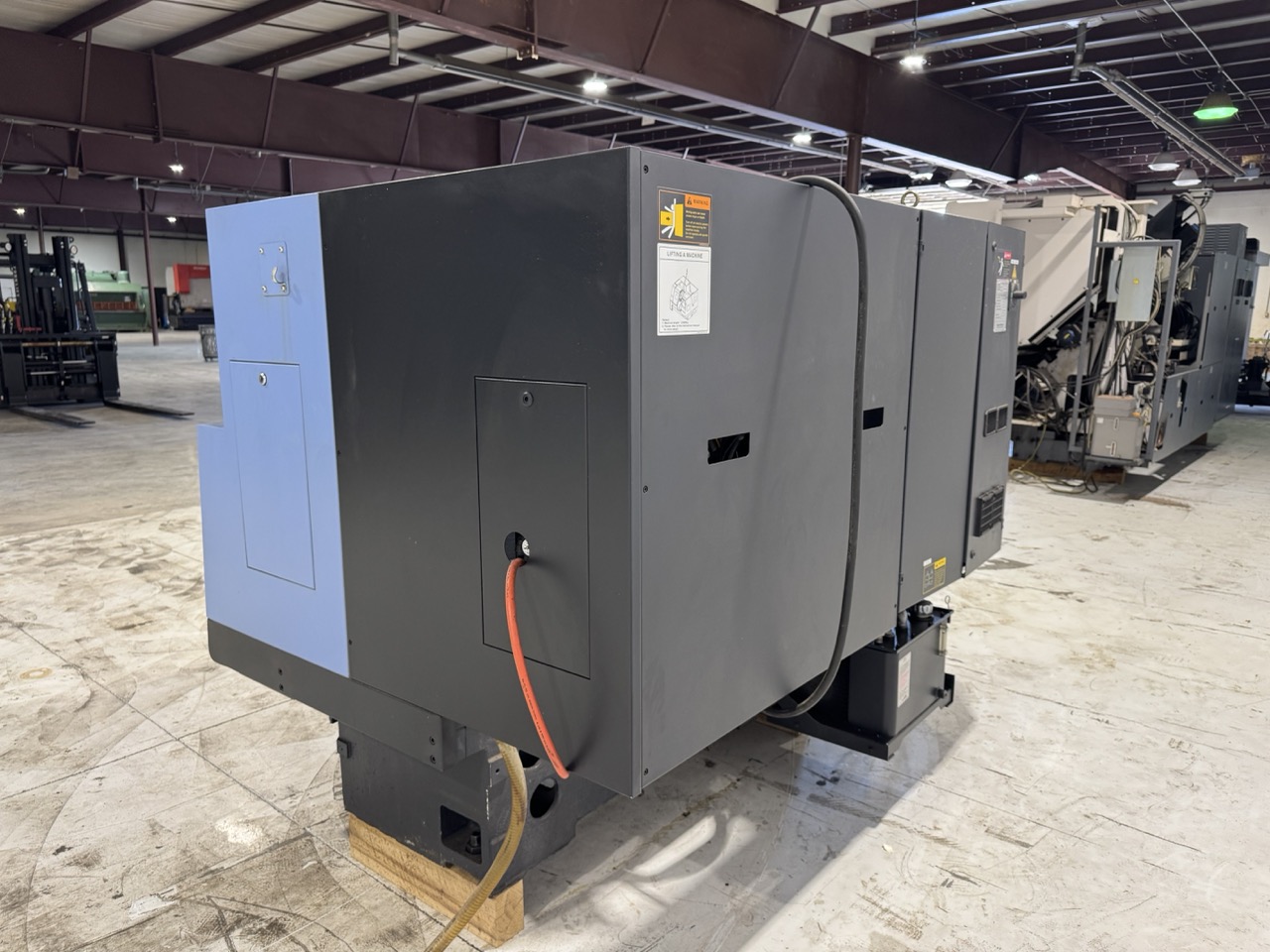

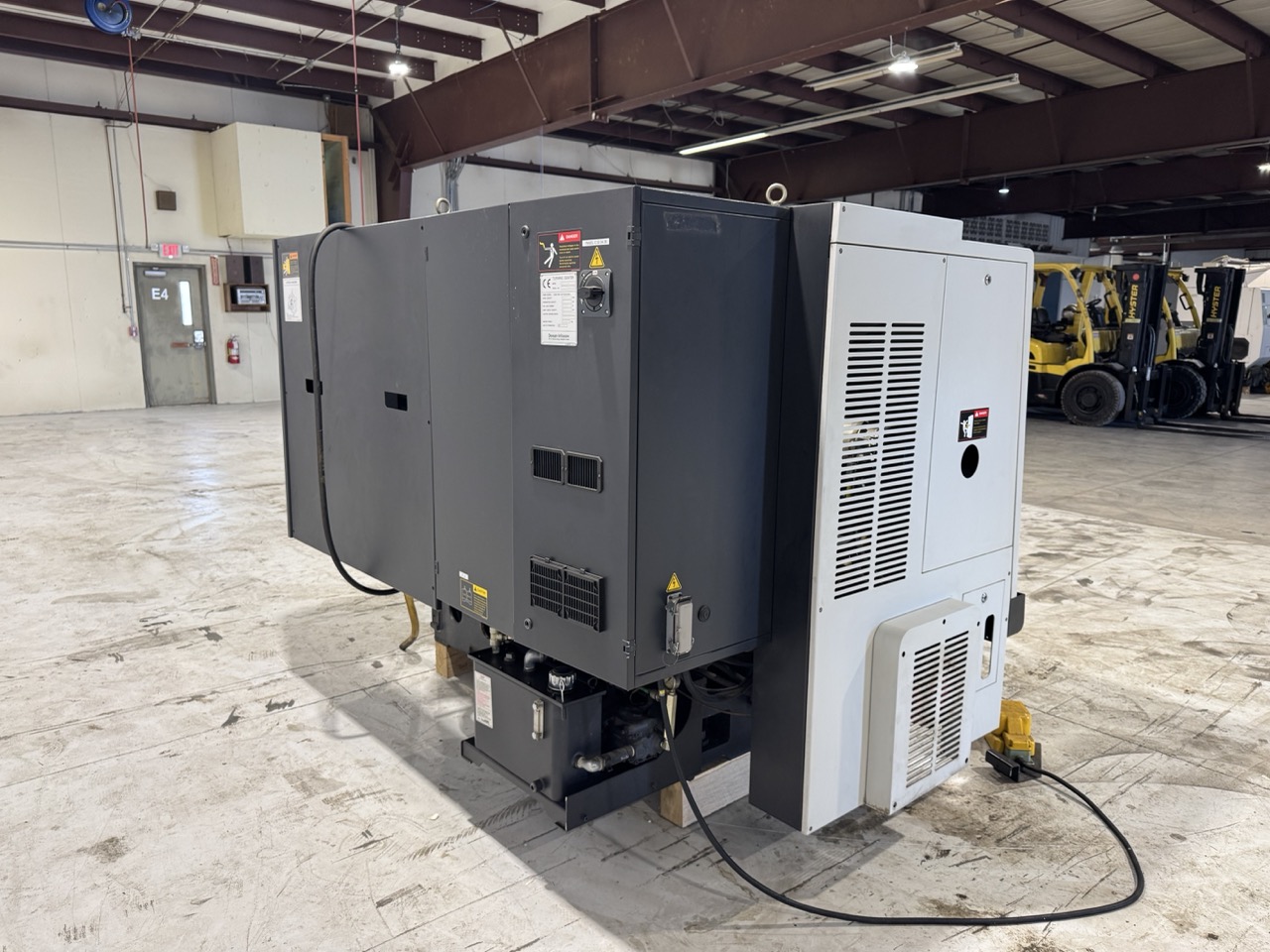

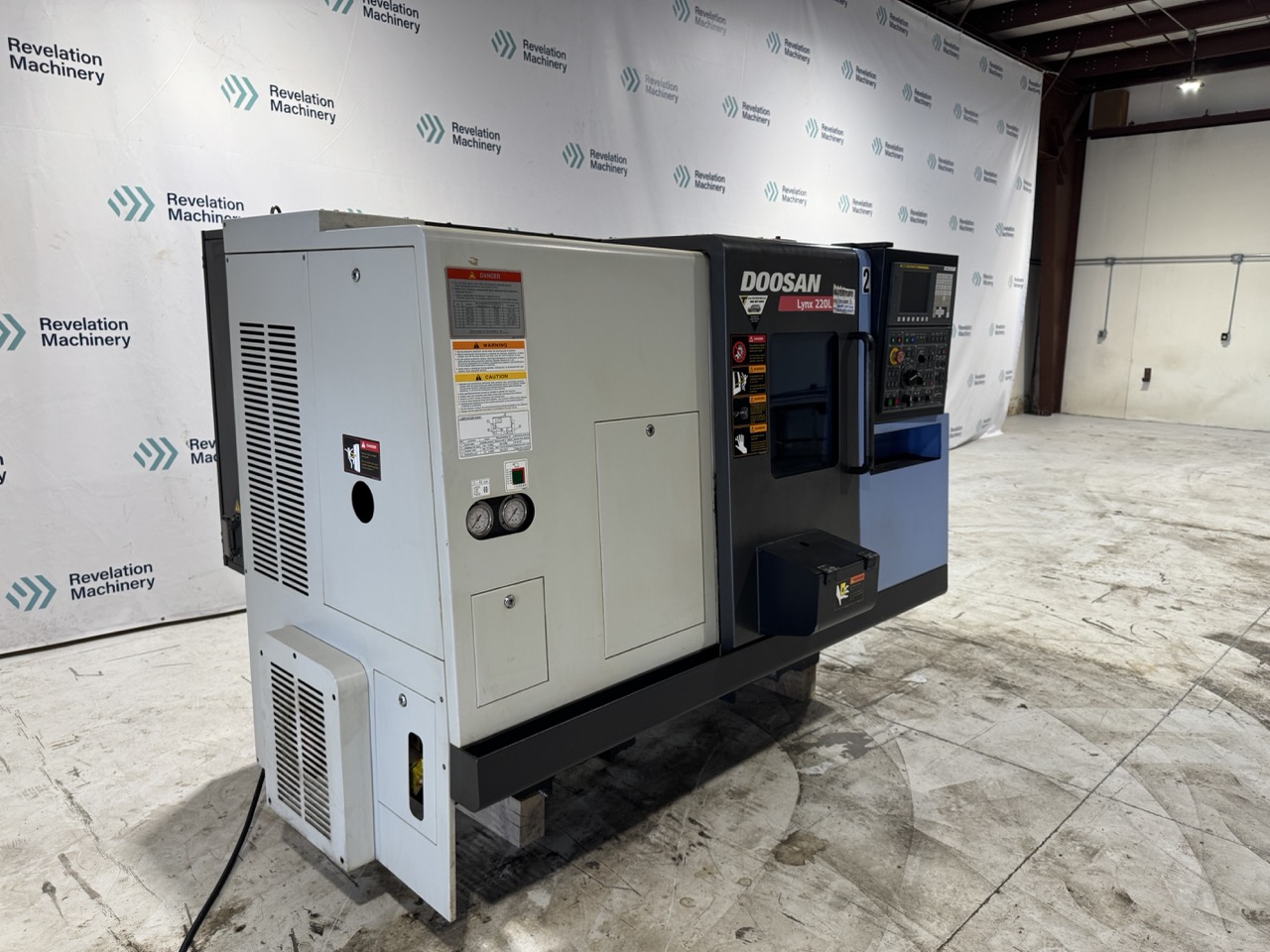

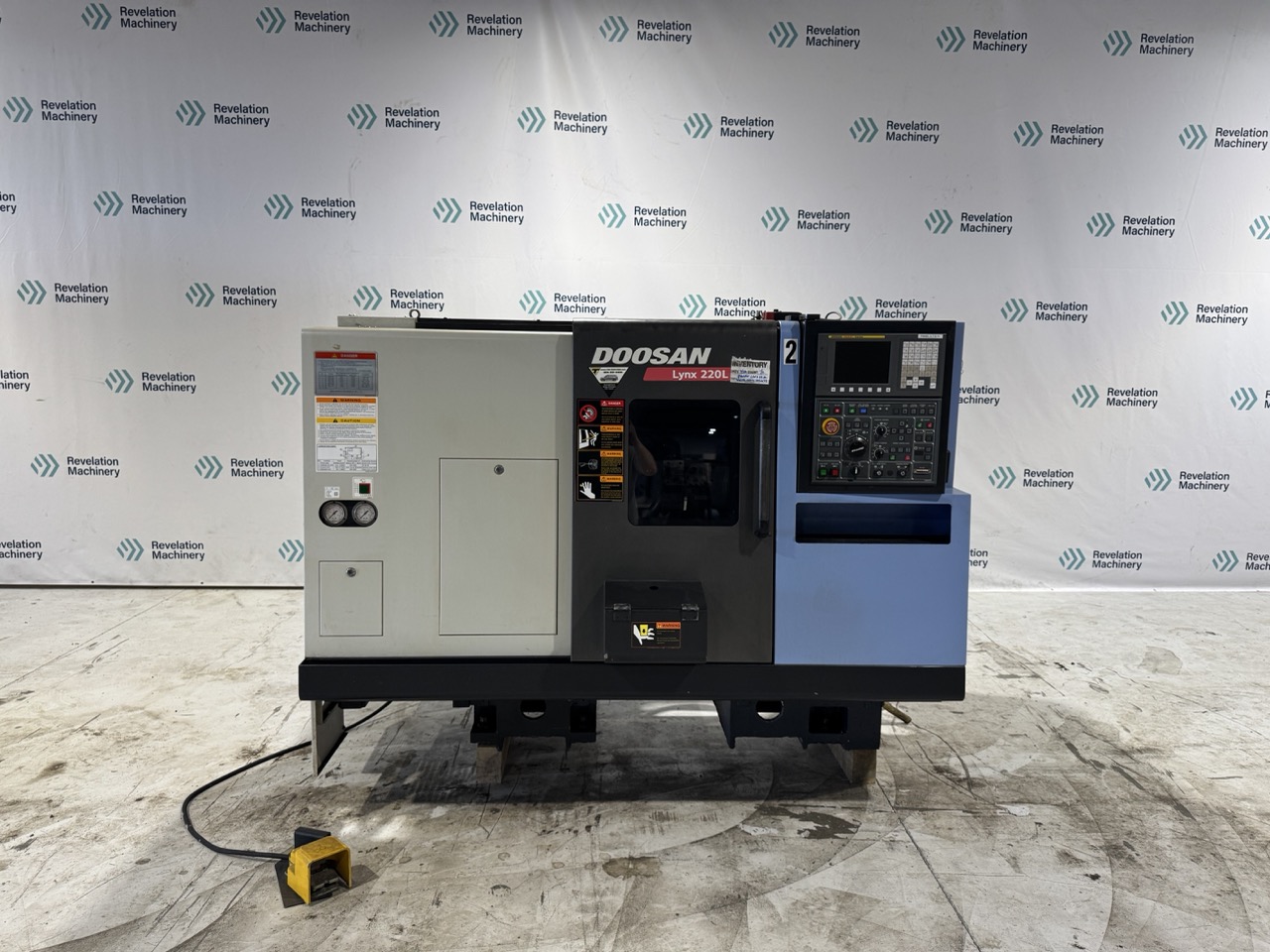

Doosan Lynx 220LC CNC Turning Center Lathe, 2013 – Chip Conveyor

Chuck Size 8″ (3-jaw)
Max Turning Diameter 12.6″
Max Swing Over Bed 20.1″
Max Turning Length / Distance Between Centers 20.7″
Bar (or Spindle Bore) Capacity ~2.6″–2.66″ (bar / bore)
Spindle speed: ~4,000 RPM typical;
Spindle motor: 20 HP
Spindle Nose / Bore: A2-6 / ~3.0″ big-bore

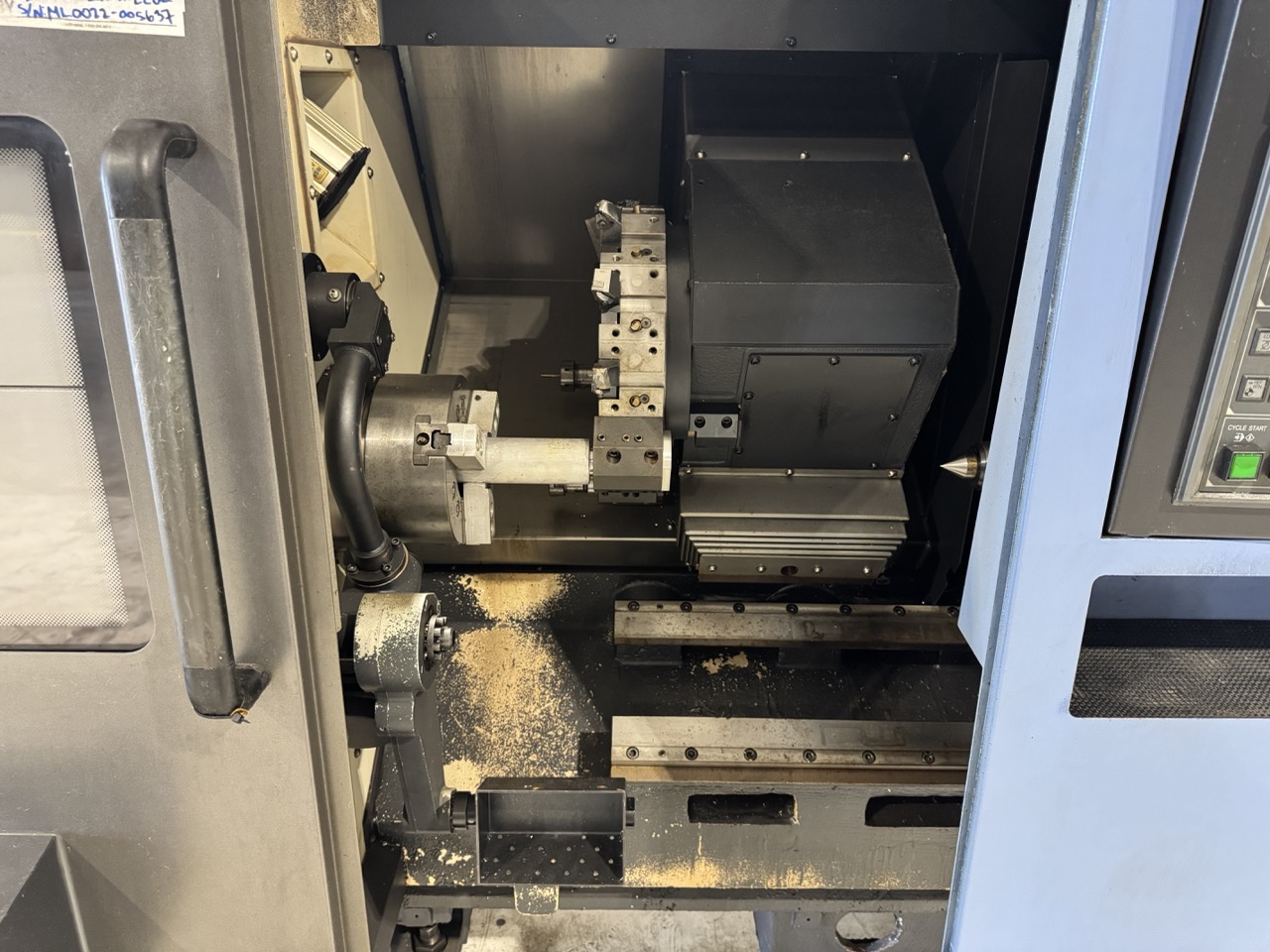

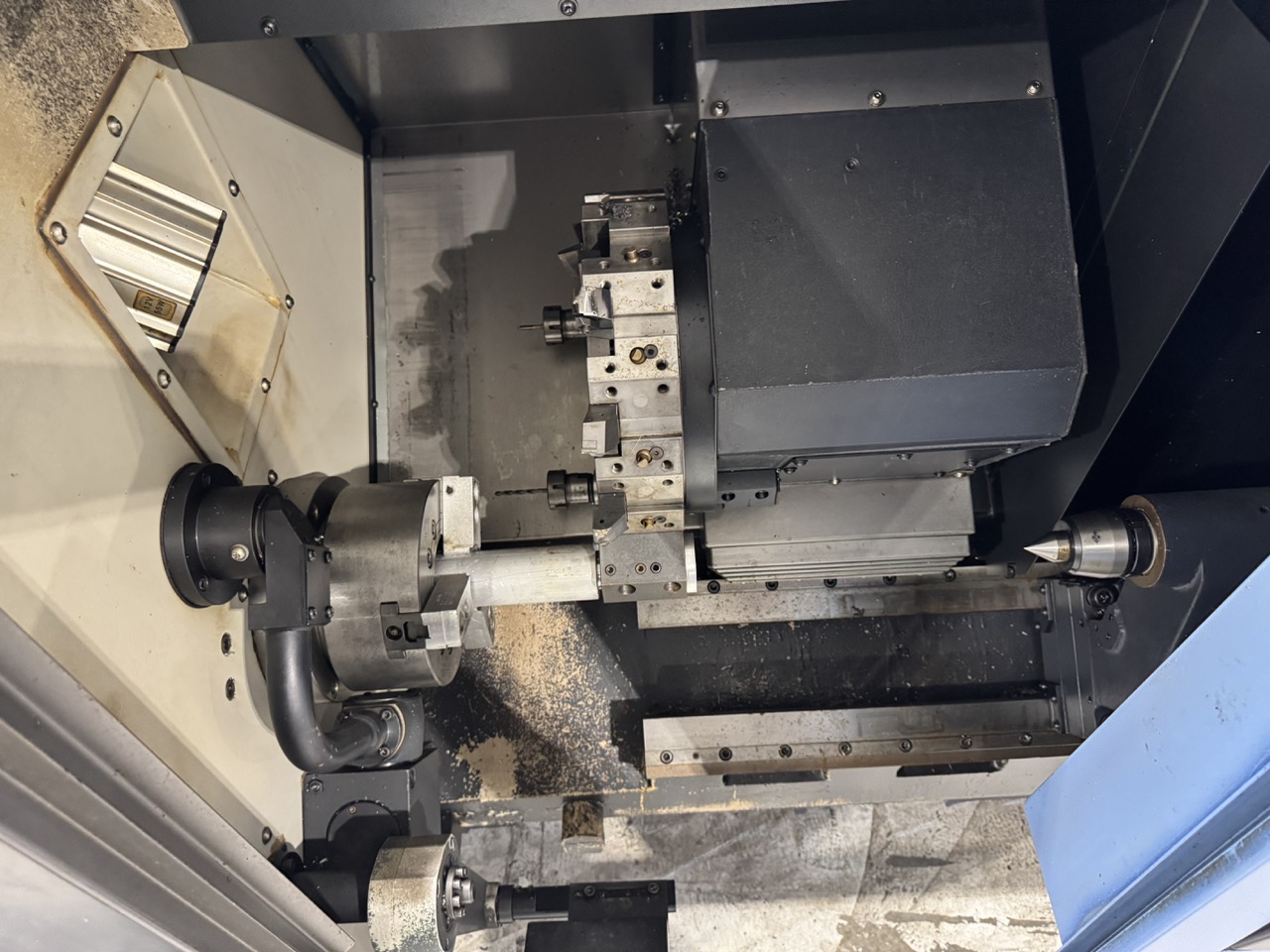

Turret: 12-station turret
Travels: X-axis ~ 6.9″;
Z-axis ~ 21.6
Rapid Traverse: ~1,181 IPM (X-axis) / ~1,417 IPM (Z-axis)

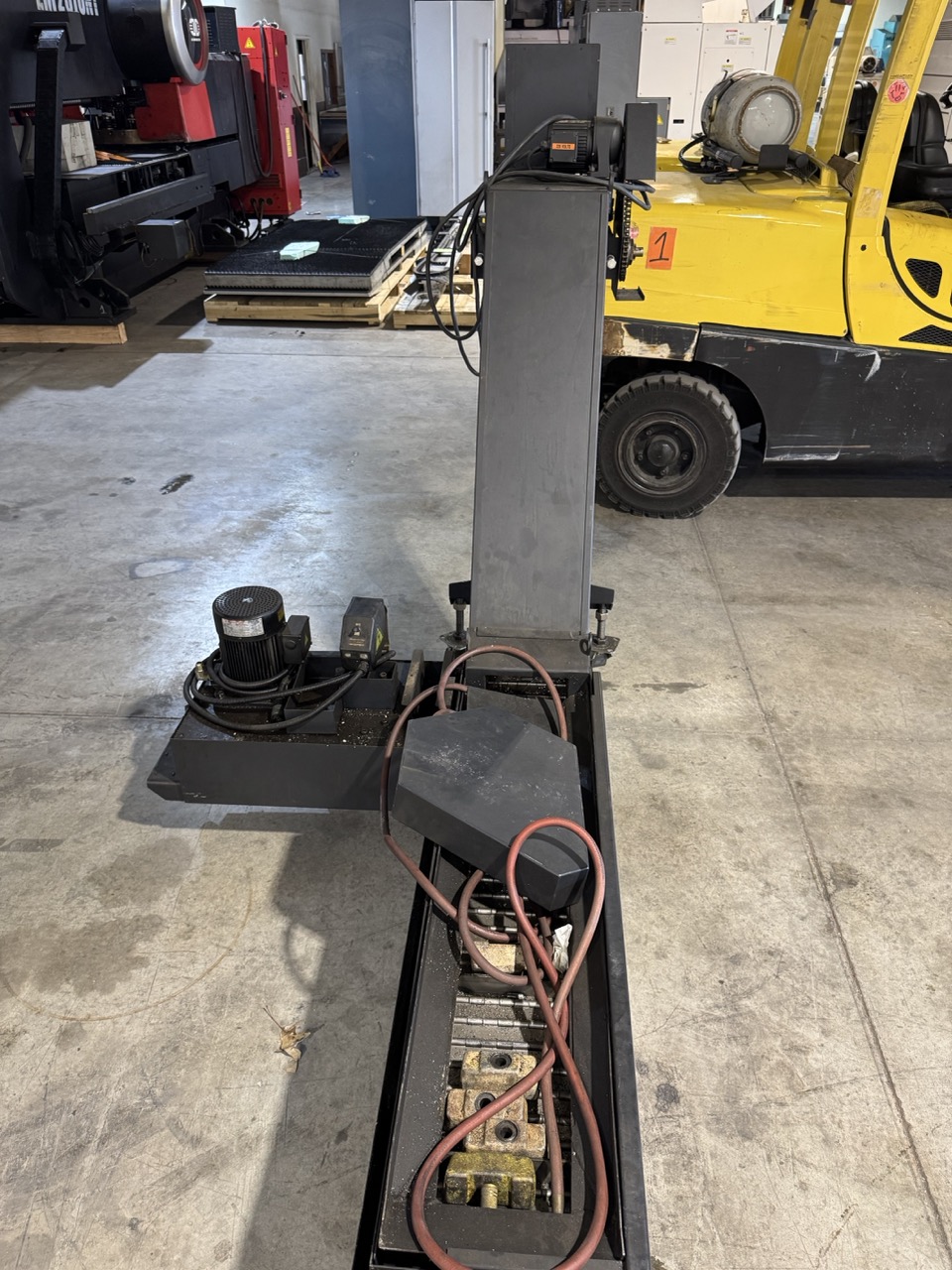

Hennig Chip Conveyor
