Elumatec SBZ-130 4-Axis Machining Center, 2007- 40′ Bed


Request a Quote to Instantly See Pricing

Machine Type:
SBZ 130

3-axis profile machining center
Designed for economical and efficient machining of aluminum, steel and stainless steel profiles
All operations, such as routing, drilling and tapping, are performed while the profile bar is stationary to protect the profile surfaces

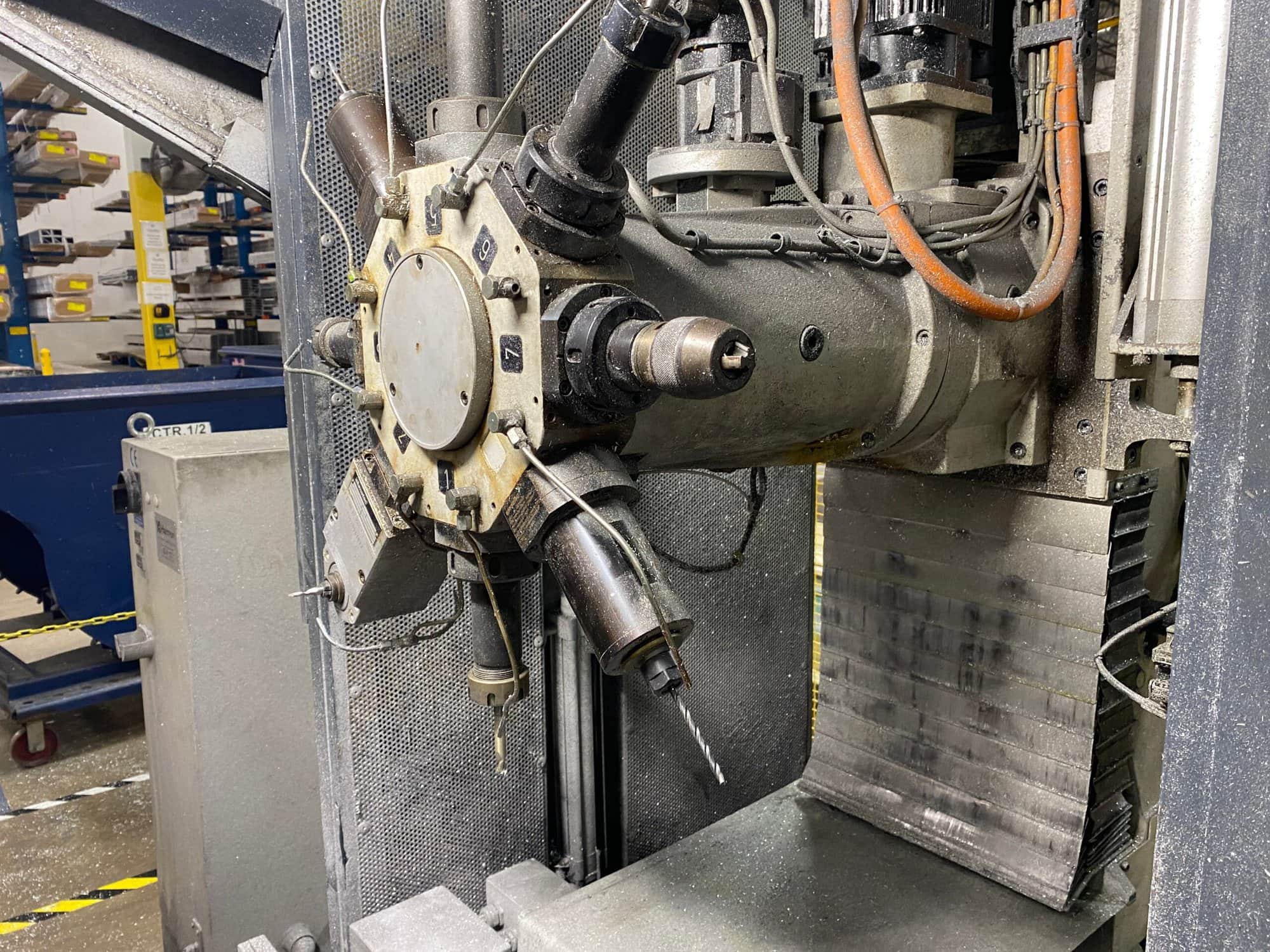

The on-board turret head ensures that tool changing times are kept very short, thereby optimizing machining cycles
The turret head can be equipped with eight tools or four angle routing heads
Automatic clamp positioning enables the machine to position the material clamps
3-axis controller
The tool spindle is designed as an additional axis
Angle heads for lateral and profile end machining
Max. machining length with profile end machining: 37′
Max. machining length without profile end machining: 38′
Dims: Length 46 Ft. x Width 7 Ft. x Height 8 Ft.
Approx. weight: 20,000 lbs.
480V/3 Phase

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
