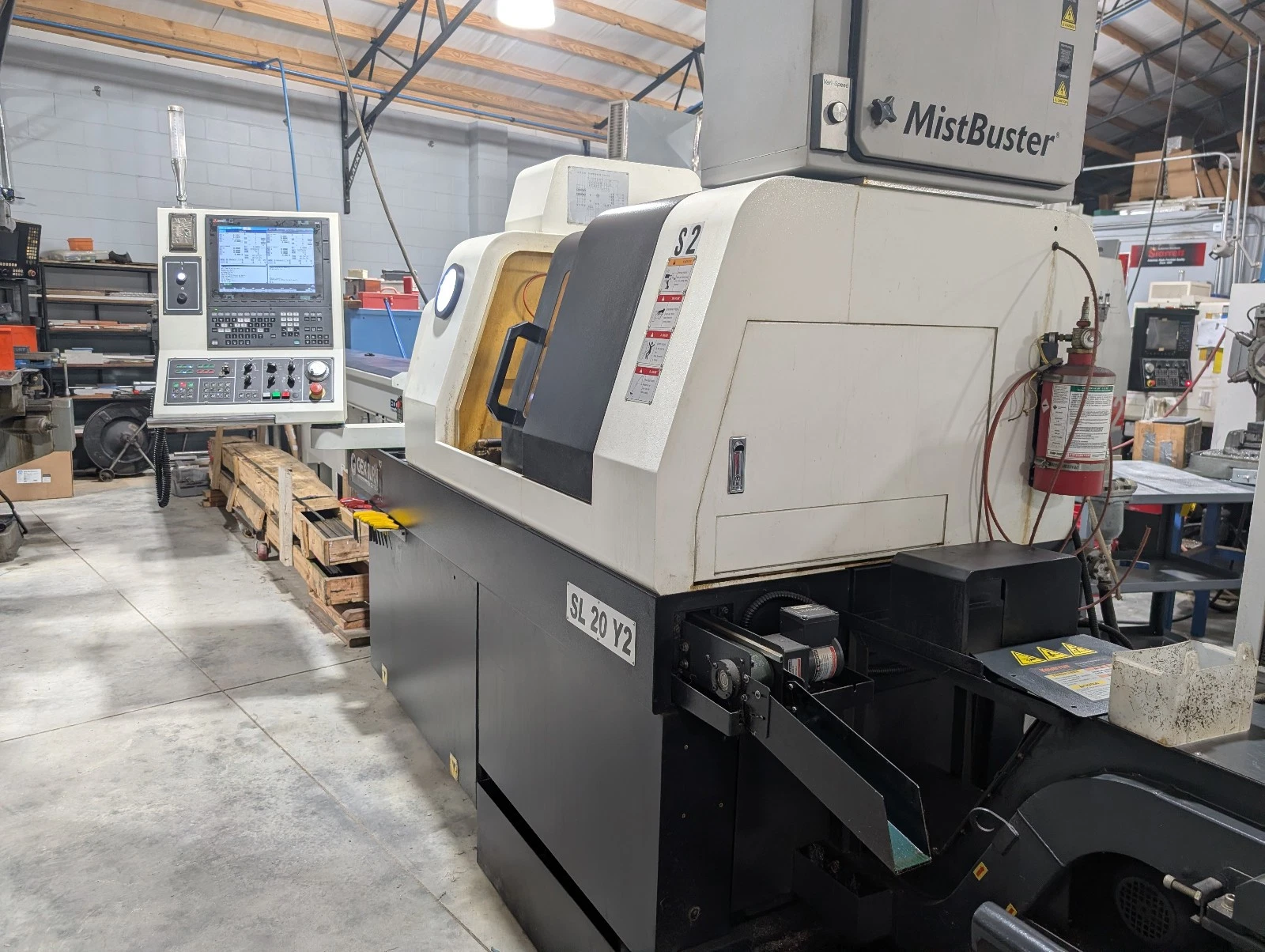

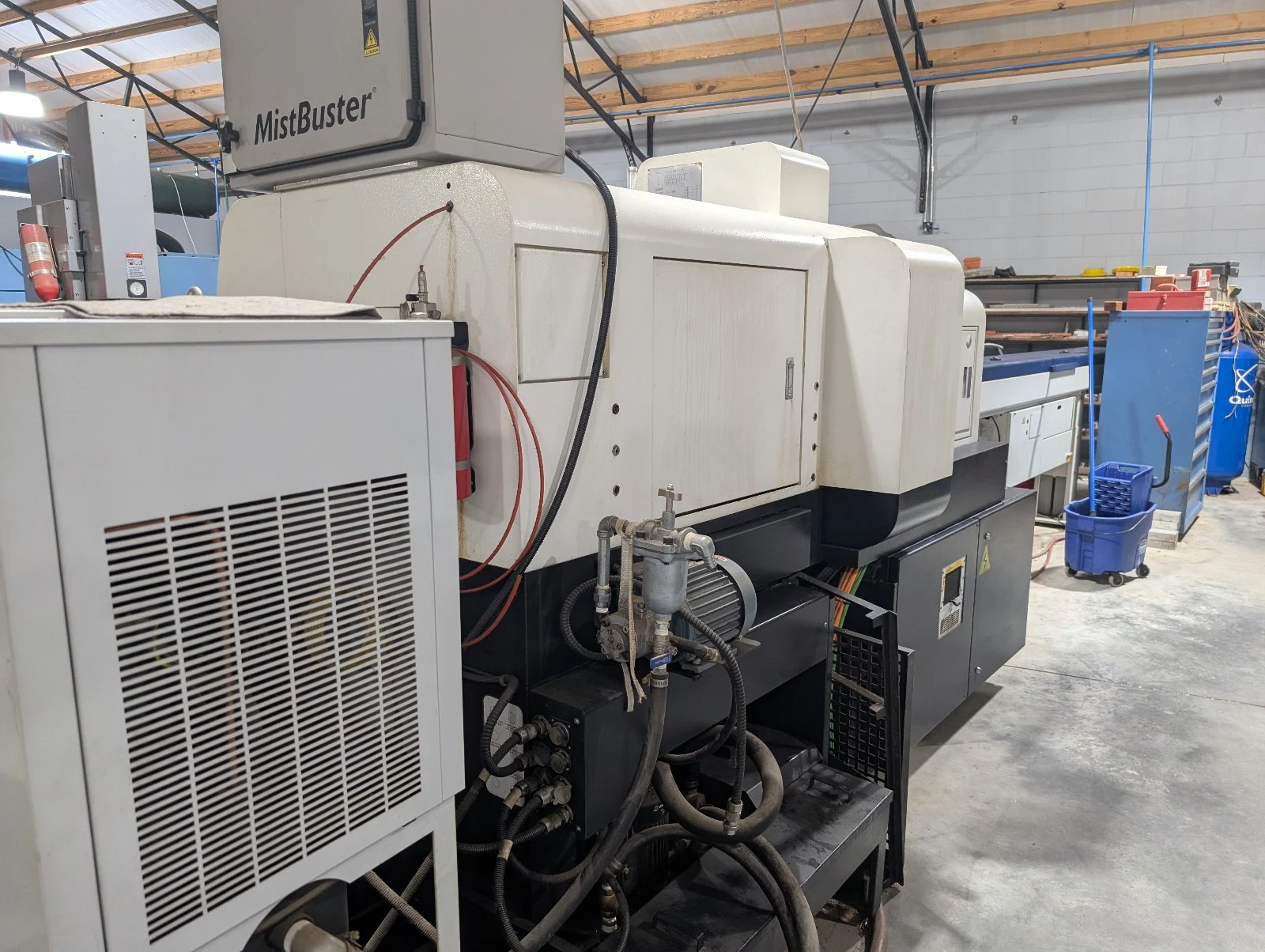

Ganesh SL-20Y2 CNC Swiss Machine, 2019 - Bar Feeder
Ganesh SL-20Y2 CNC Swiss Machine, 2019 - Bar Feeder - Image 2
Ganesh SL-20Y2 CNC Swiss Machine, 2019 - Bar Feeder - Image 3
Ganesh SL-20Y2 CNC Swiss Machine, 2019 - Bar Feeder - Image 4
KB
55126413962

Ganesh SL-20Y2 CNC Swiss Machine, 2019 – Bar Feeder

$99,950.00

Ganesh SL-20Y2 CNC Swiss Machine, 2019 - Bar Feeder
Ganesh SL-20Y2 CNC Swiss Machine, 2019 - Bar Feeder - Image 2
Ganesh SL-20Y2 CNC Swiss Machine, 2019 - Bar Feeder - Image 3
Ganesh SL-20Y2 CNC Swiss Machine, 2019 - Bar Feeder - Image 4

Request a Quote to Instantly See Pricing

Call Now

Machine Type: Swiss-Type Lathes
Make: Ganesh
Model: SL-20Y2
Year: 2019
Machine Location: Upon Request
Stock #: 413962

Bar Capacity: 0.787″
Max Turning Length: 7.48″
Max Turning Diameter: 2.36″
X-Axis Travels: 6.3″
Y-Axis Travels: 7.8″
Z-Axis Travels: 8″
Max Spindle Speed: 10,000 RPM
Number of Axis: 8
Electrical: 220V, 3-Phase

Machine Dimensions: 118″ x 55″ x 78″
Machine Weight: 5,954lbs

Equipped With
Mitsubishi CNC Control

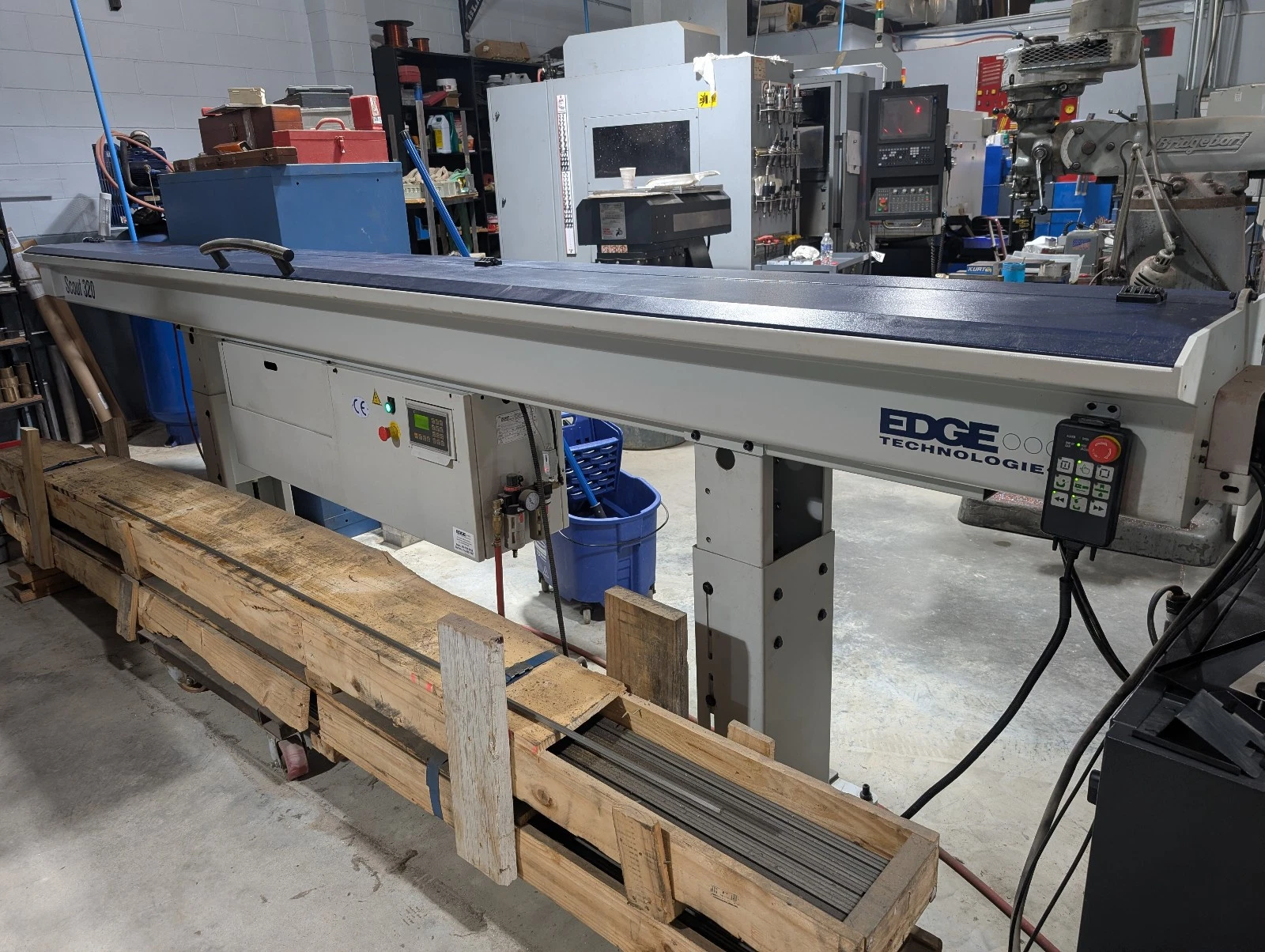

Edge Scout 320 Bar Feeder

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
