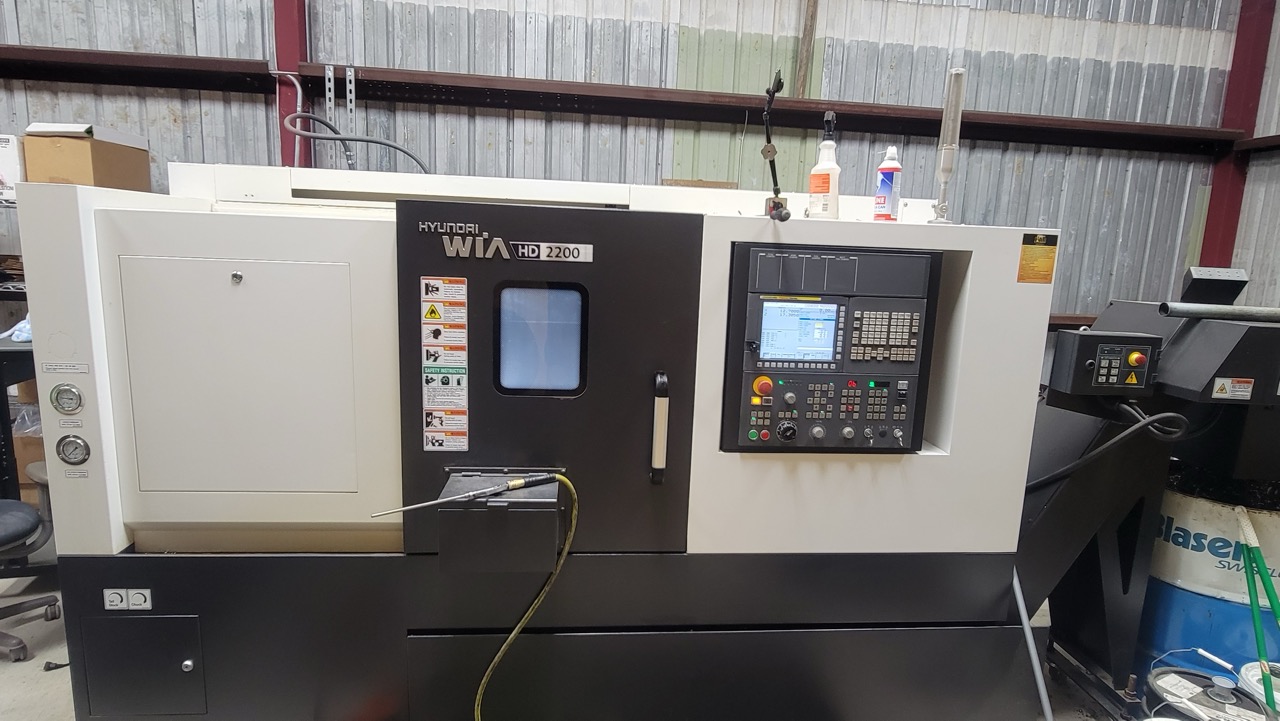

Hyundai Wia HD 2200 CNC Lathe, 2018 – 8″ Chuck, Rigid Tapping, Chip Conveyor

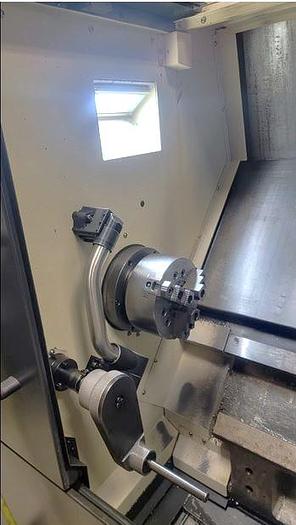

Chuck Size: 8″ 3 Jaw Hydraulic Chuck
Maximum Swing 21.67″
Maximum Turning Diameter: 15″
Maximum Machining Length: 22.2″
Maximum Bar Capacity: 2.6″
X-Axis Travel: 8.5″
Z-Axis Travel: 22.8″
Spindle Nose: A2-6″
Spindle Bore: 2.99″
Spindle Speeds: 4,000 RPM
Spindle Motor: 24.8 HP
Spindle Torque: 152 ft./lbs.
Number of Tool Positions: 12 Station Turret
Rapid Traverse Rates X/Z: 944/1181 IPM
Tailstock Quill Taper: MT #4
Quill Diameter: 2.6″
Tailstock Travel: 22.8″
Quill Travel: 3.1″
Approx. Dimensions: 115″ x 65″ x 71.7″ (155.8″ Length with Conveyor included)
Approx. Weight: 10,000 lbs

Equipped With:

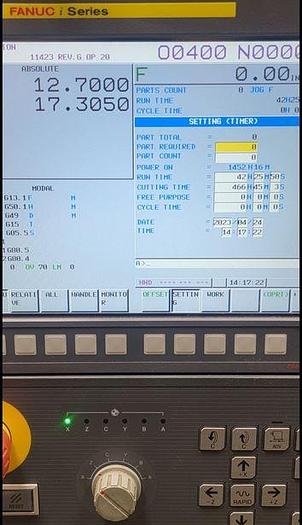

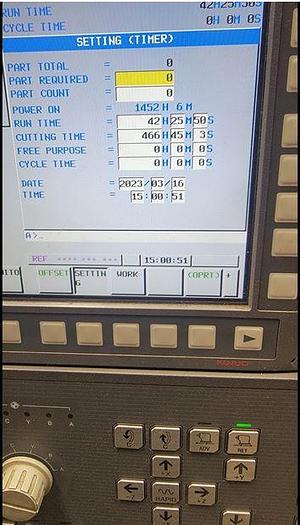

Fanuc i Series CNC Control
Parts Catcher
Tool Presetter
Chip Conveyor
Tailstock
Rigid Tapping

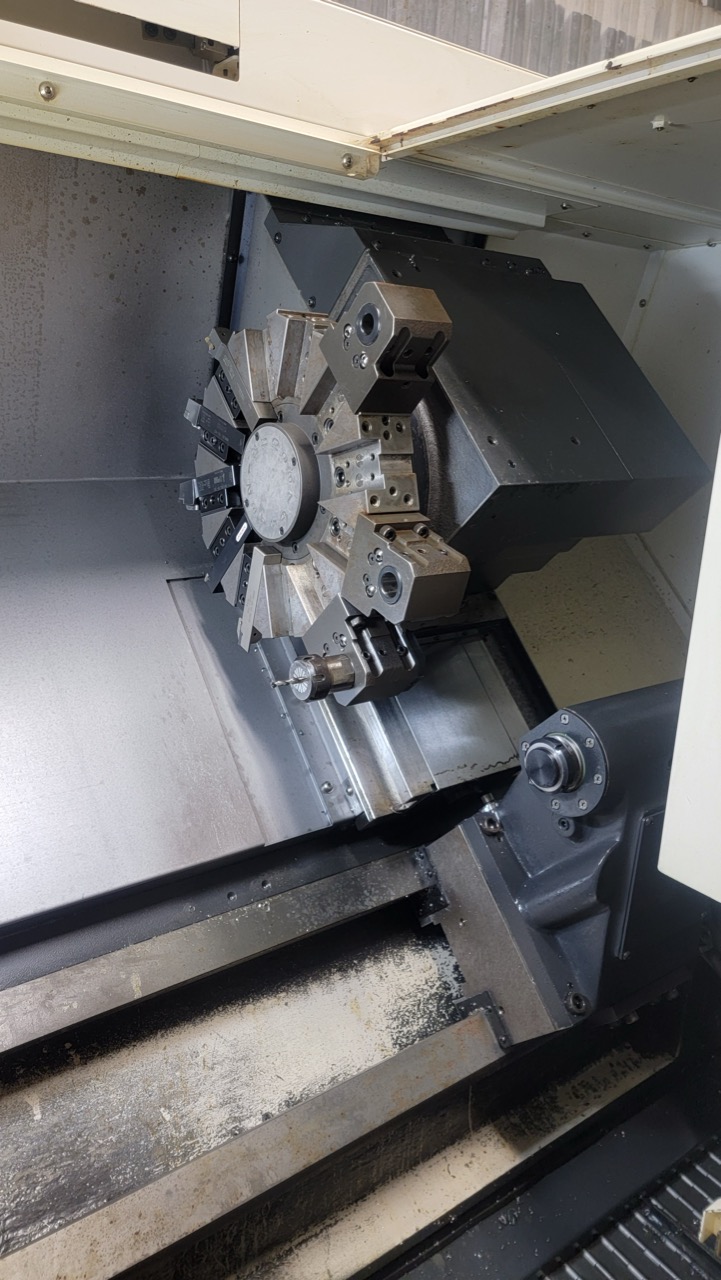

12 Station Servo Driven Turret
Boxed Guideways for Heavy Cutting
Conversational Guide i
45 Degree Slant Bed Design
Coolant System with Tank & Pump
USB Port Interface
RS 232 Port Interface
