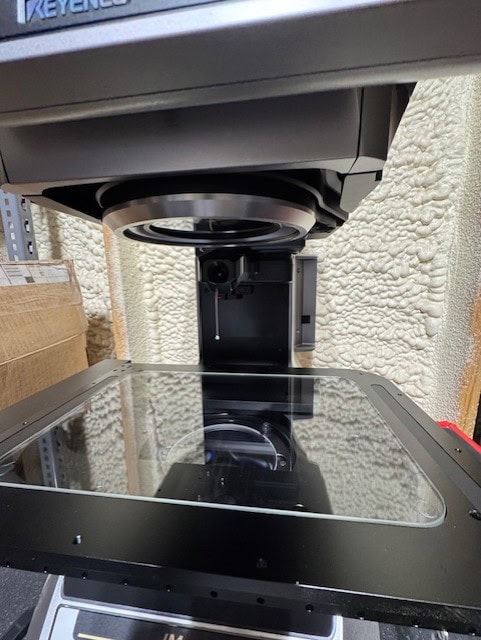

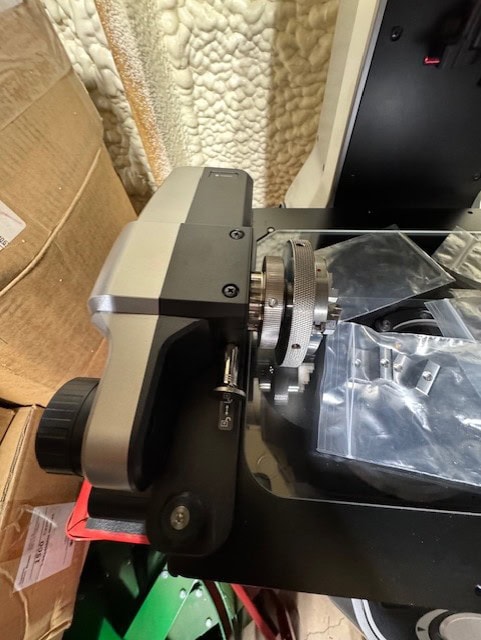

Keyence IM-8030 Image Dimension Measurement System, 2023

Stage Size: 300 × 200 mm (11.81″ × 7.87″)
Measurement Modes:

Wide-Field: 300 × 200 mm

High-Precision: 225 × 125 mm

Image Sensor: 1″ 20-megapixel monochrome CMOS

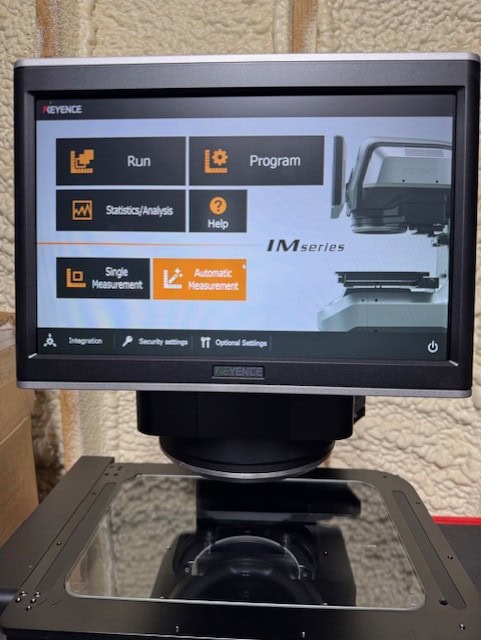

Display: 12.1″ LCD Monitor (1280 × 800 WXGA)
Lens: Double telecentric lens

Measurement Accuracy (±2σ):

Wide-Field: ±(2.8 + 0.02D) μm

High-Precision: ±(1.4 + 0.04D) μm

Repeatability:

Wide-Field: ±1 μm (no stage movement)

High-Precision: ±0.5 μm (no stage movement)

XY Stage Movement Range: 200 × 100 mm (electric)
Z Stage Movement Range: 75 mm
Stage Load Capacity: 7.5 kg

Light Probe:

Diameter: ø3 mm

Measuring Force: 0.015 N

Accuracy: ±(8 + 0.02L) μm

Repeatability: ±2 μm

Connectivity:

LAN (RJ-45: 10/100/1000BASE-T)

USB 3.1: 4 ports (rear)

USB 2.0: 4 ports (2 front, 2 rear)

DVI-D Monitor Output

Illumination:

Telecentric transparent illumination

Ring and slit ring (multi-angle, electric)

Hard Drive: 500 GB
Power Requirements: 100–240 VAC ±10%, 50/60 Hz
Power Consumption: 430 VA or less
Operating Temp: +10 to 35°C
Weight: Approx. 33 kg (72.8 lbs)

Last Calibrated: 9/19/2023

Full Data Sheet Available By Request
