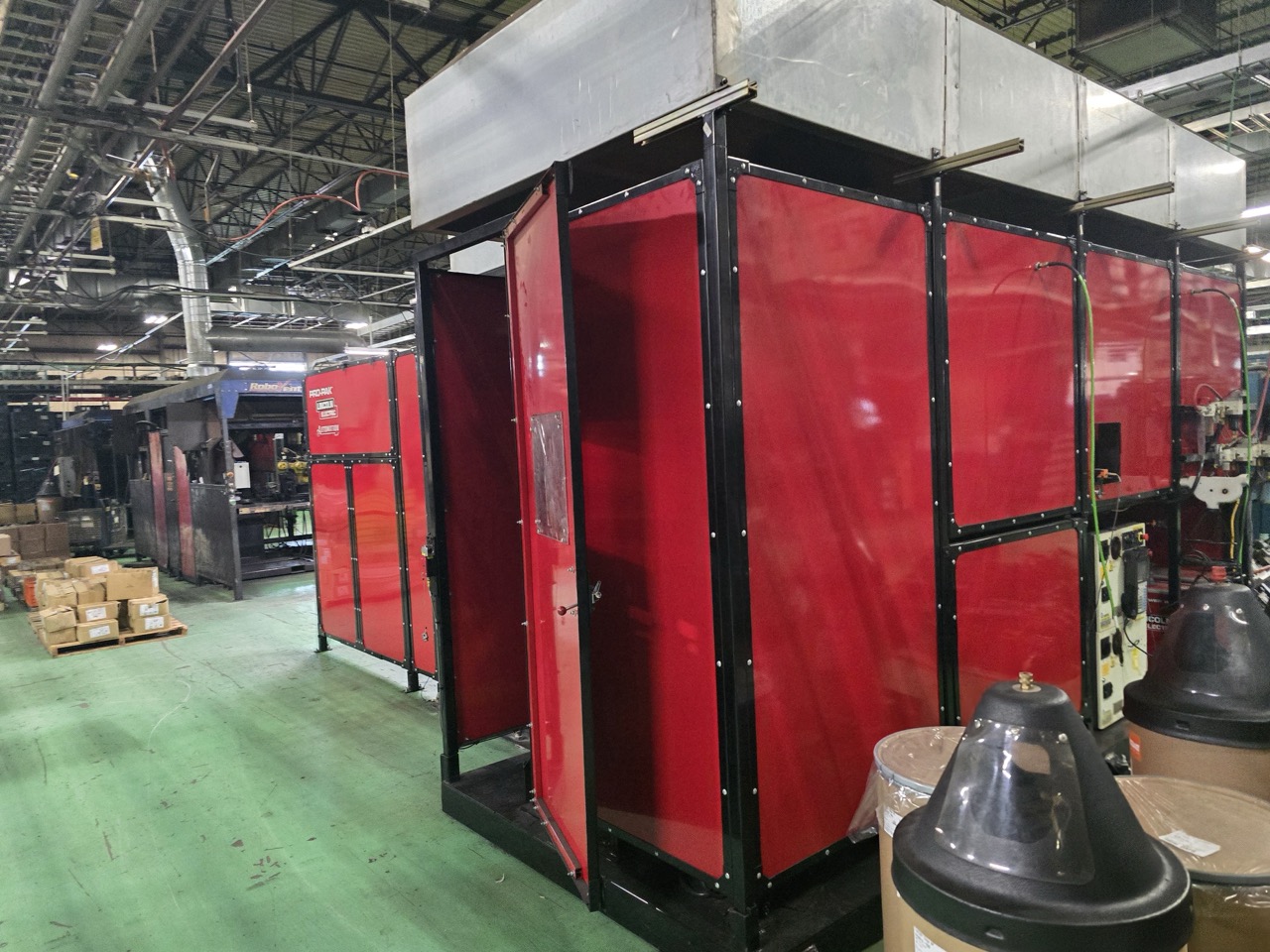

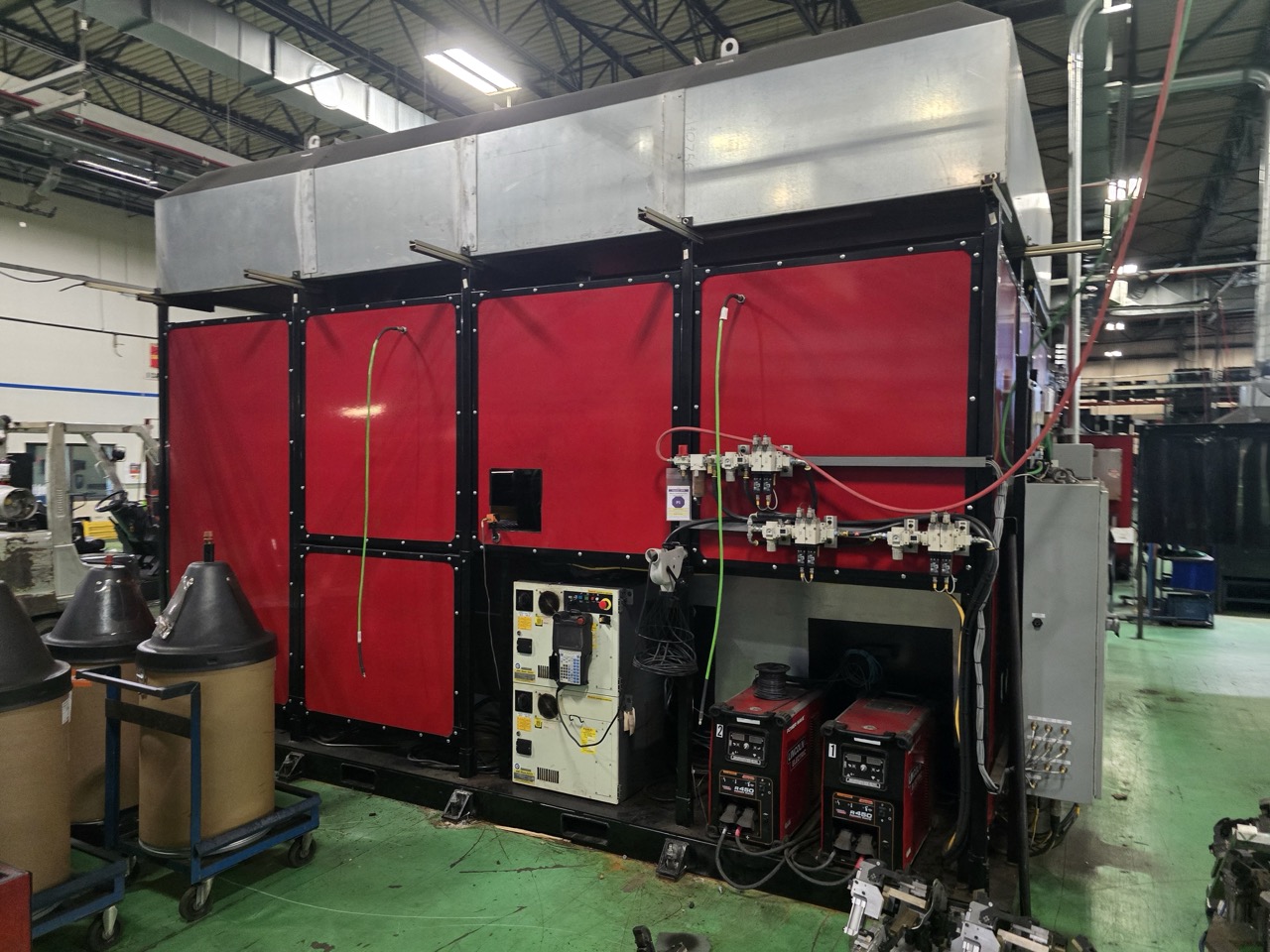

Lincoln Electric Pro-Pak FW Ferris Wheel Robotic Welding System, 2024 – FANUC Robot Cell, 3,306-Lb Payload

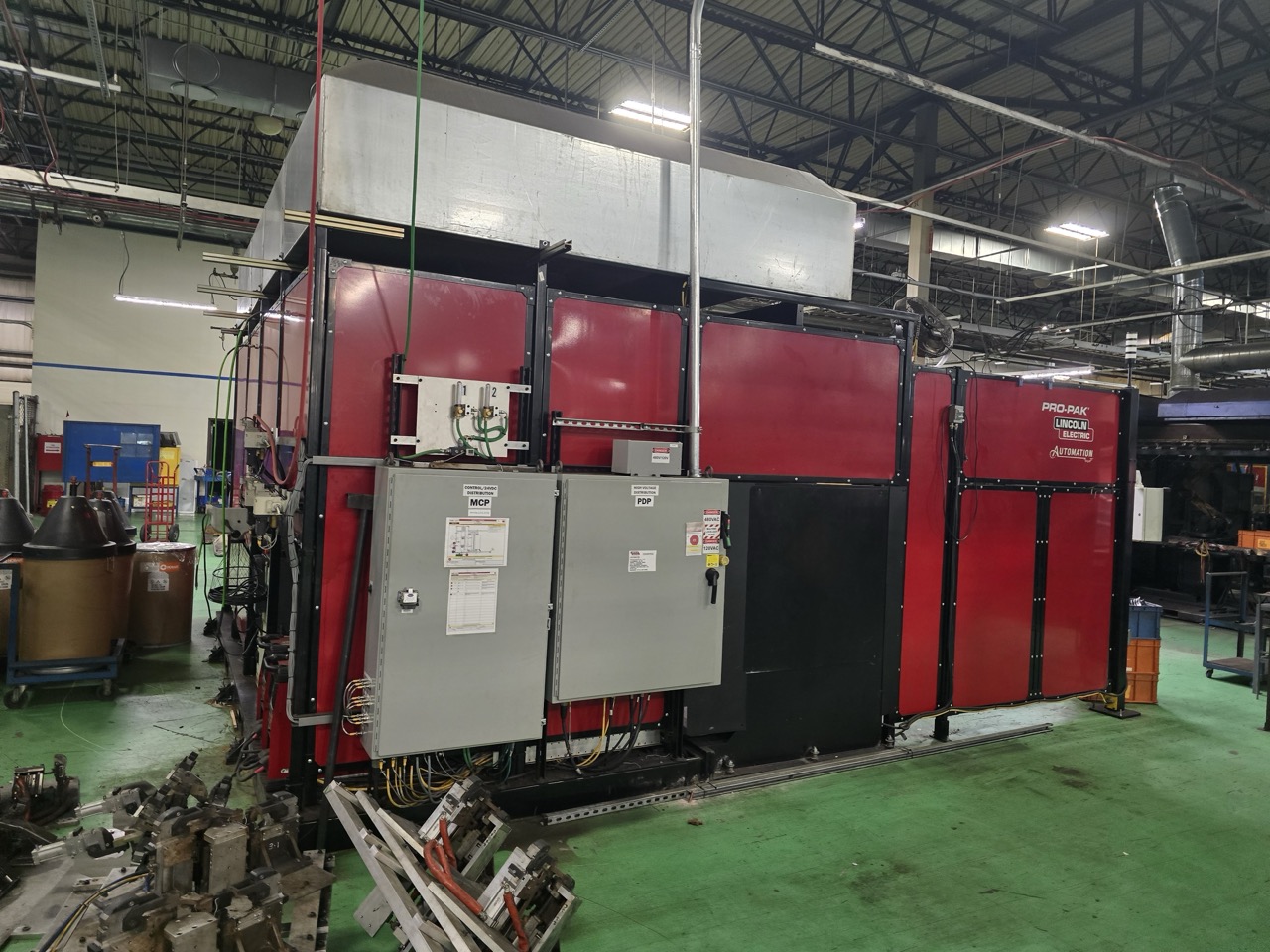

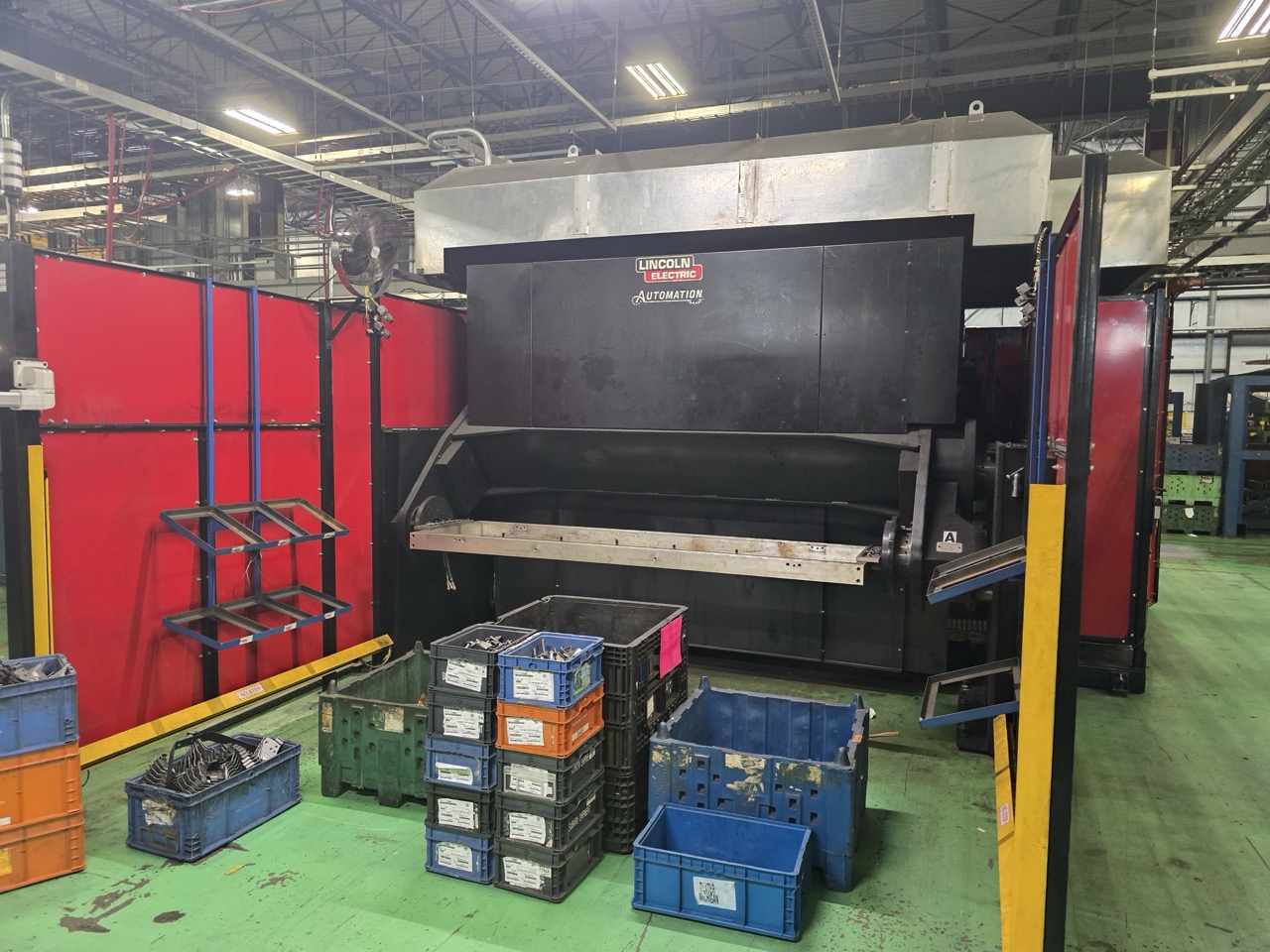

2024 Lincoln Electric Pro-Pak FW high-production robotic arc welding cell featuring a servo-driven ferris-wheel positioner, FANUC robotic welding technology, Power Wave R450 welding power source, and dual work zones designed for continuous loading and welding of large, heavy fabrications.

Manufacturer Lincoln Electric Automation
Model Pro-Pak FW
Year 2024
System Type Ferris-wheel robotic arc welding cell
Welding Process Robotic GMAW/MIG arc welding
Work-Zone Design Two-sided ferris-wheel indexing positioner
Positioner Rotation 180° indexing
Maximum Payload 3,306 lb. / 1,500 kg per axis
Maximum Tool Diameter 49.2 in. / 1,250 mm
Available Tool-Bed Lengths 2.0, 2.5 or 3.0 meters
Primary Axis 180° Sweep Time Approximately 3.5 seconds
Satellite Axis 180° Sweep Time Approximately 2.5 seconds
Sweep Diameter Approximately 2.69 meters / 106 in.
Robot Configuration Single, dual, triple or four-robot capability, depending on configuration
Robotic Arm FANUC robotic welding arm with controller
Welding Power Source Lincoln Electric Power Wave R450
Wire Feeder Lincoln Electric AutoDrive 4R100
Welding Torch Magnum PRO Robotic 550 welding gun
