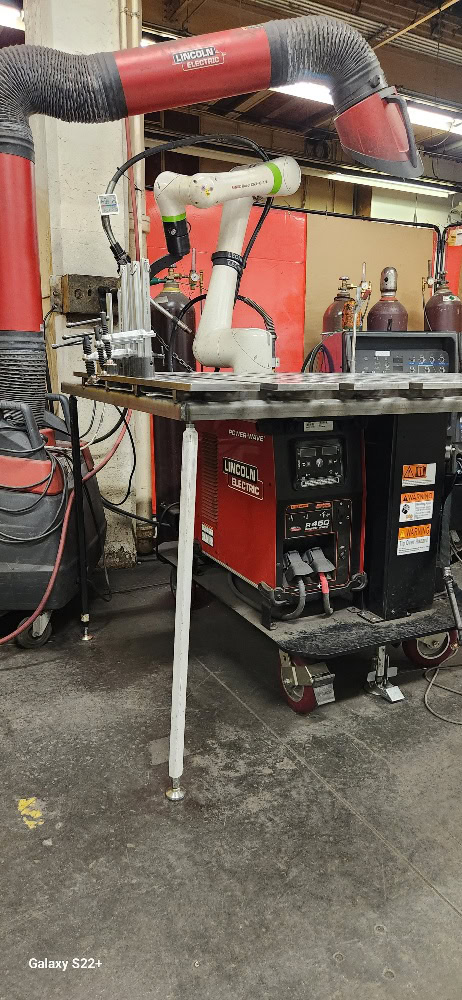

Lincoln Fab-Pak Guru Robotic Weld Cell, 2021 – FANUC CRX‑10iA/L Upgrade w/ R‑30iB Plus Controller

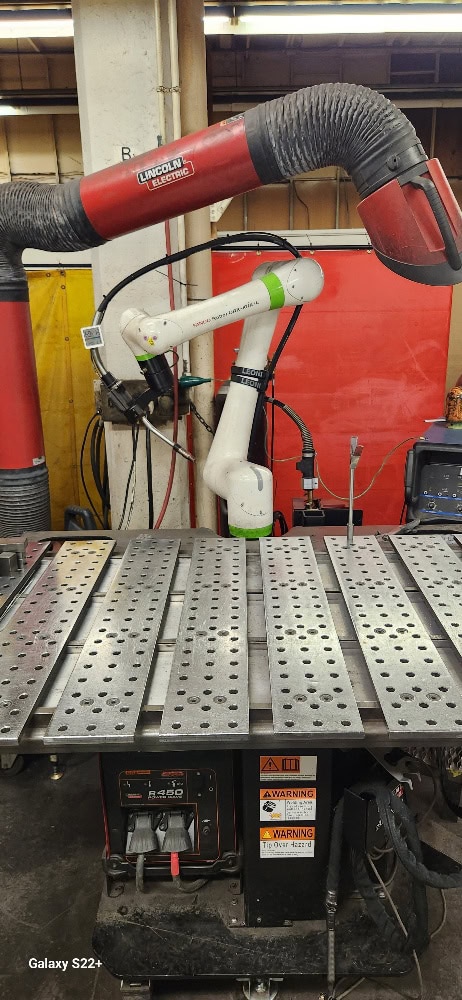

Lincoln Fab-Pak Guru Robotic Weld Cell, 2021 – FANUC CRX‑10iA/L Upgrade w/ R‑30iB Plus Controller - Image 2

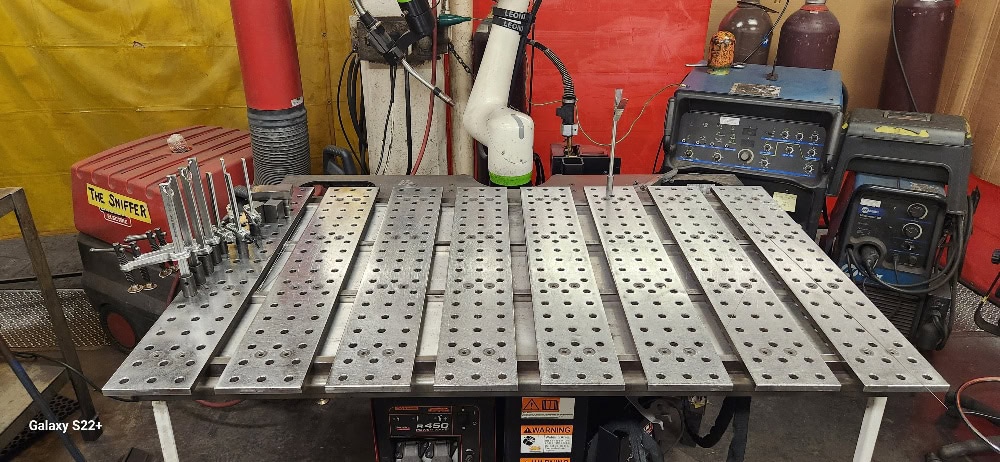

Lincoln Fab-Pak Guru Robotic Weld Cell, 2021 – FANUC CRX‑10iA/L Upgrade w/ R‑30iB Plus Controller - Image 3

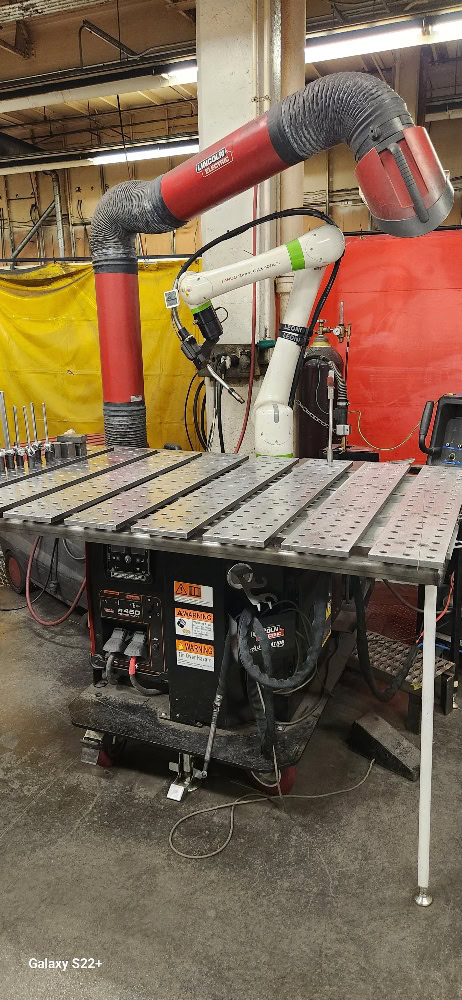

Lincoln Fab-Pak Guru Robotic Weld Cell, 2021 – FANUC CRX‑10iA/L Upgrade w/ R‑30iB Plus Controller - Image 4
Lincoln Fab-Pak Guru Robotic Weld Cell, 2021 – FANUC CRX‑10iA/L Upgrade w/ R‑30iB Plus Controller - Image 5
DD
33973013643

Lincoln Fab-Pak Guru Robotic Weld Cell, 2021 – FANUC CRX‑10iA/L Upgrade w/ R‑30iB Plus Controller

$44,900.00

Lincoln Fab-Pak Guru Robotic Weld Cell, 2021 – FANUC CRX‑10iA/L Upgrade w/ R‑30iB Plus Controller
Lincoln Fab-Pak Guru Robotic Weld Cell, 2021 – FANUC CRX‑10iA/L Upgrade w/ R‑30iB Plus Controller - Image 2
Lincoln Fab-Pak Guru Robotic Weld Cell, 2021 – FANUC CRX‑10iA/L Upgrade w/ R‑30iB Plus Controller - Image 3
Lincoln Fab-Pak Guru Robotic Weld Cell, 2021 – FANUC CRX‑10iA/L Upgrade w/ R‑30iB Plus Controller - Image 4
Lincoln Fab-Pak Guru Robotic Weld Cell, 2021 – FANUC CRX‑10iA/L Upgrade w/ R‑30iB Plus Controller - Image 5

Request a Quote to Instantly See Pricing

Call Now

Machine Type: Robotic Welding Cells
Make: Lincoln FAB PAK CABOT GURU
Model: Lincoln FAB PAK CABOT GURU
Year: 2021
Machine Location: Upon Request
Stock #: 013643

Robot: CRX 10iA
Controller: R30 IB Mini Plus
Max Payload: 10 kg
Reach: 1249 mm
Axes: 6
Mechanical Weight: 40kg
Repeatability: ±0.04

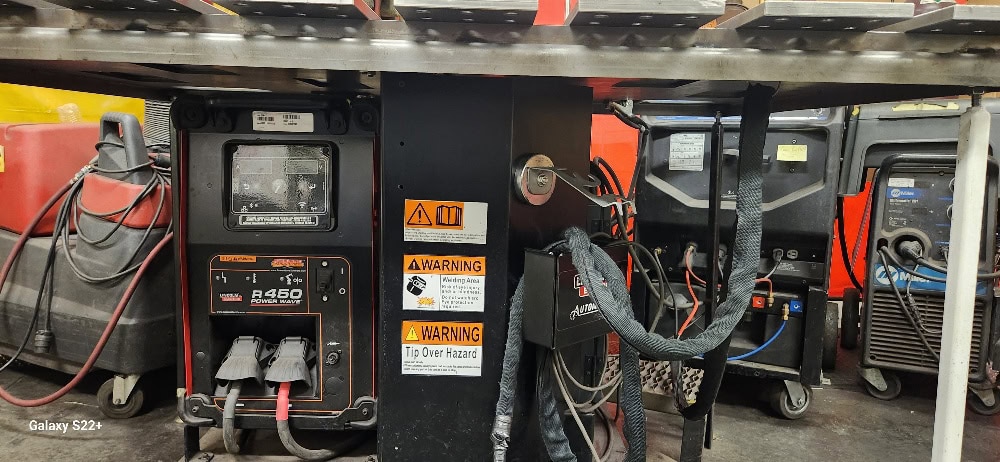

Weld Power Source: Lincoln R 450
Input Voltage: 200/208,220/230/240,380/400/415,460,575
Mode Icon: CC/CV
Output Range: 5-550A
Polarity: DC
Rated Output: GMAW: 550A/41.5V/40%,GMAW: 450A/36.5V/100%,GTAW-DC: 550A/32V/40%,GTAW-DC: 450A/28V/100%

Equipped With:
Wire Feeder: Lincoln 4R100
LE Cart
CRX Teach Pendant Tablet
AC Magnum ProSmart Torch

All specifications are assumed to be correct but must be confirmed by the purchasing entity.



Need parts or tooling for this machine? Browse the latest inventory at MROExchange.com.
