Lincoln Electric ProPak Robotic TIG Welding Cell – FANUC ARC Mate 100iD, R-30iB Plus, Power Wave R450 & TOPTIG, 2022 – Fume Extractor Not Included.

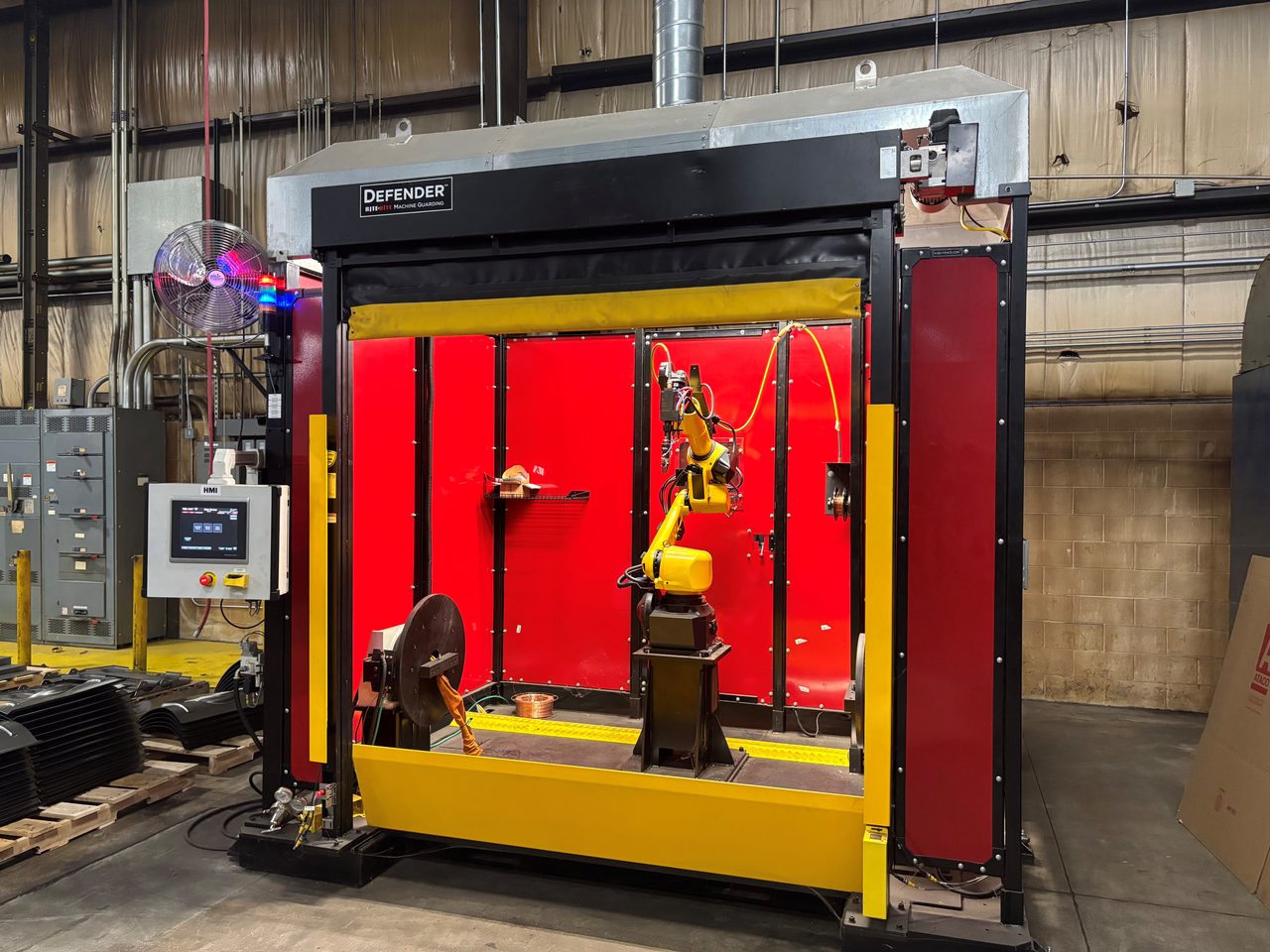

Lincoln Electric ProPak Robotic TIG Welding System
System designation: 3067B FW 3M 2R ProPak System

Base assembly description: FHS-SS 2M single-station TIG weld system

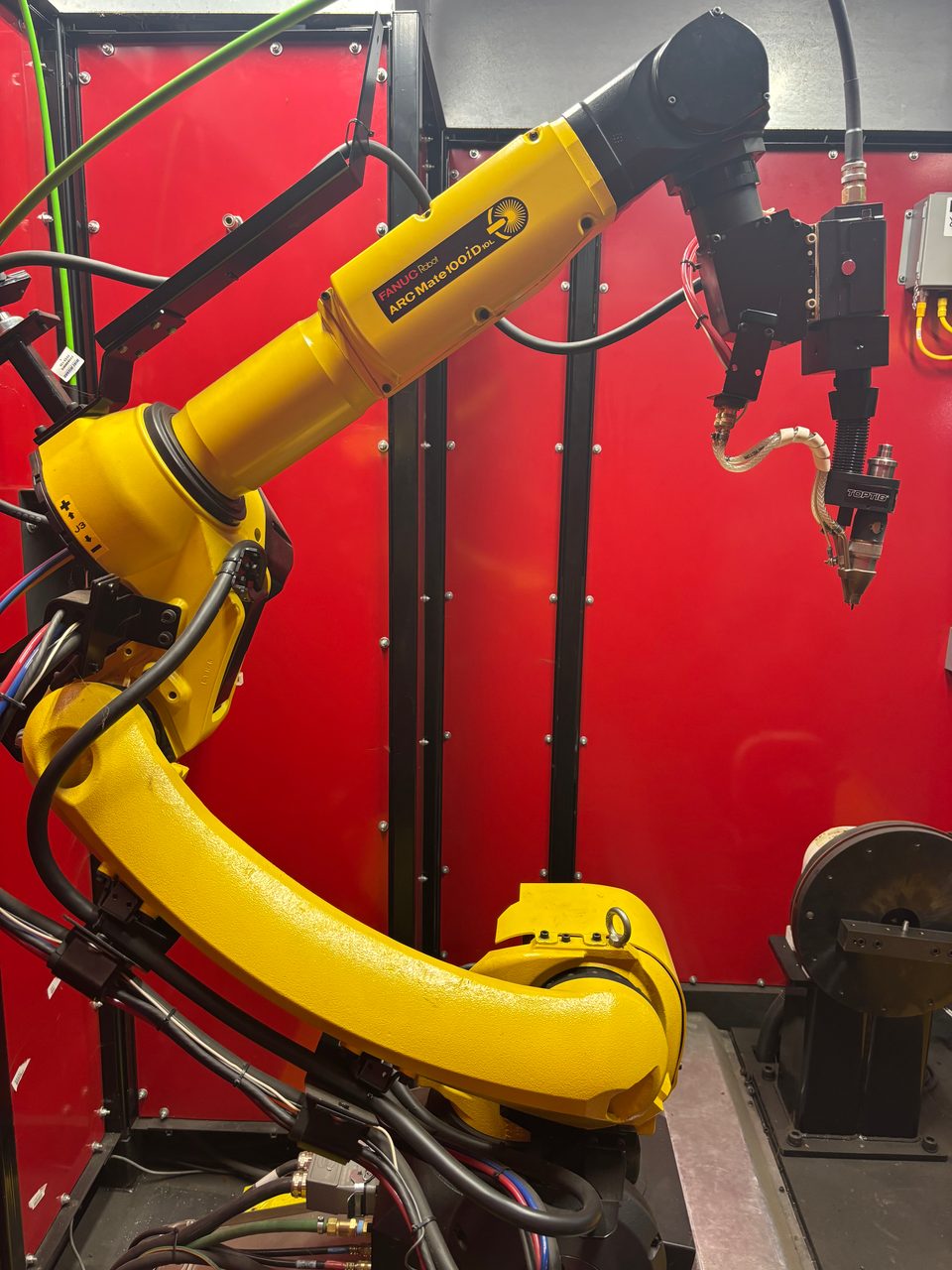

Robot: FANUC ARC Mate 100iD

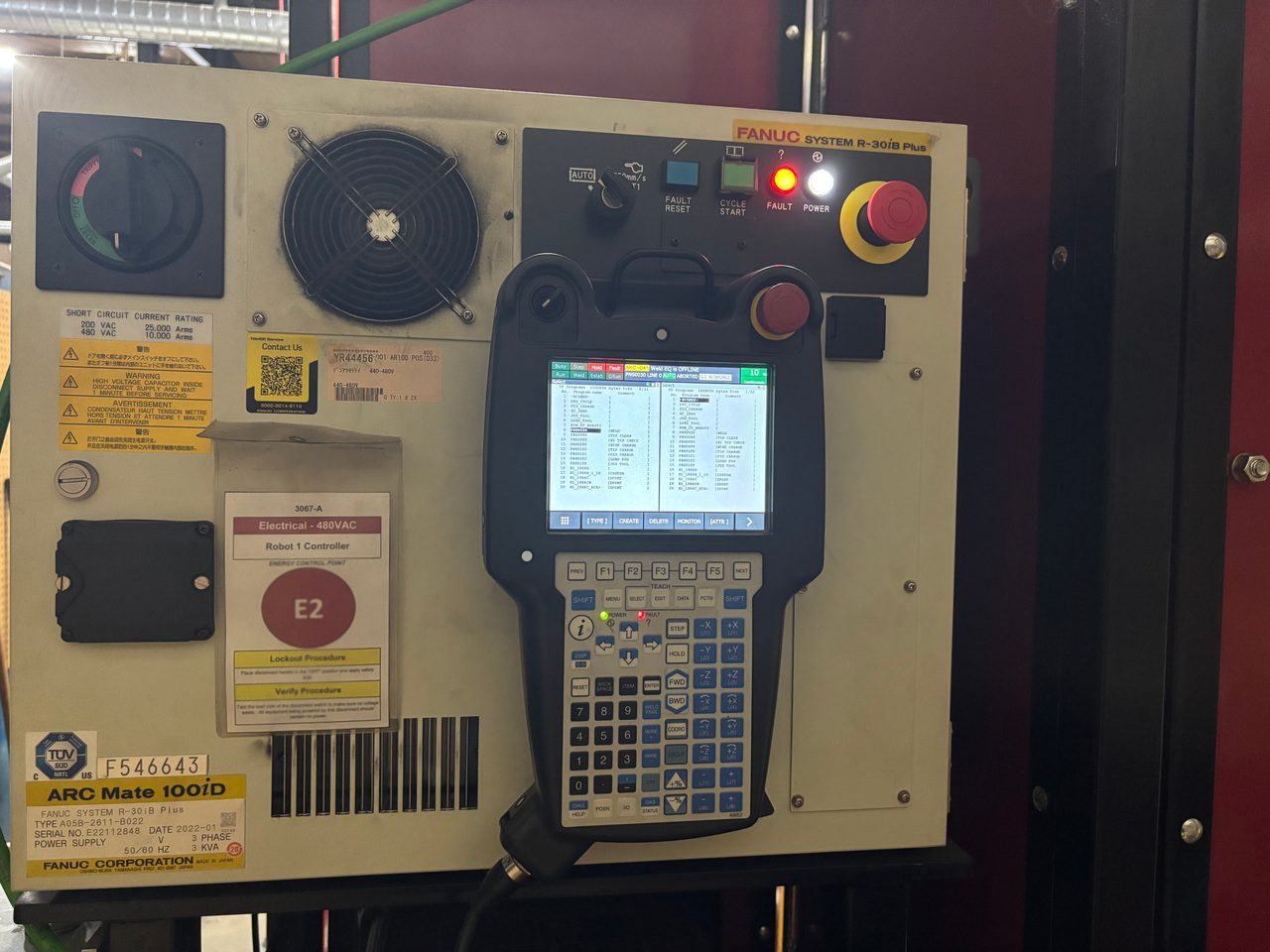

Robot controller: FANUC R-30iB Plus.

Welding Equipment

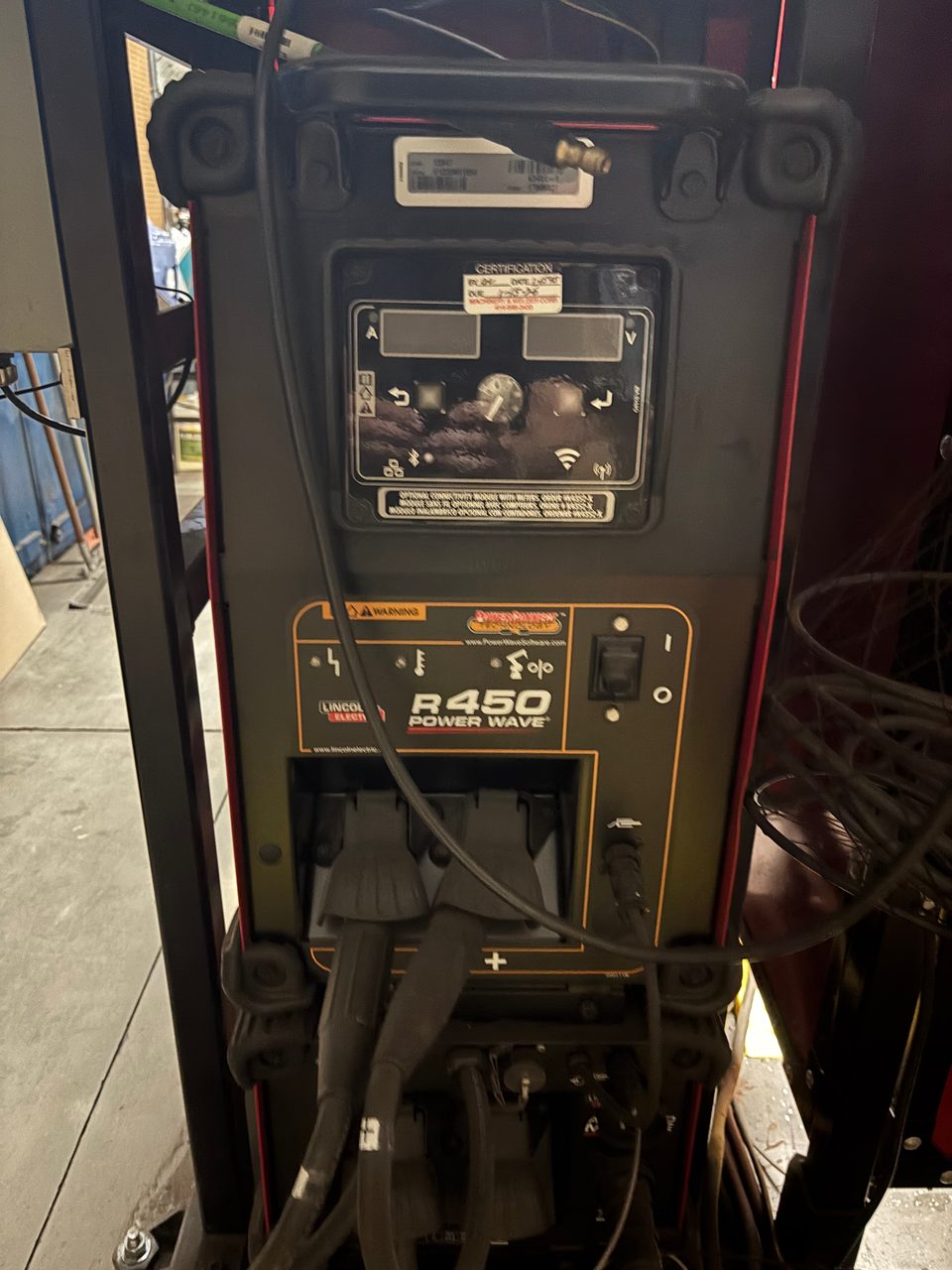

Power source: Lincoln Electric Power Wave R450, K3451-1

Advanced Process Module: Lincoln Electric K3685-1

Water cooler: Lincoln Electric Cool Arc 55S, K3086-2

Torch: TOPTIG with water-cooled nozzle

Wire-feed package: FANUC Servo Torch II Drive Package–TIG, A05B-1220-J305

Torch adapter: DINSE STA 100 T

Torch breakaway: Through-arm FANUC 100iD breakaway disk

Listed tungsten: 2.4 mm diameter, 2% lanthanated

Listed TOPTIG wire guide: 0.8 mm diameter, 30 mm long

Wire handling: Wire Wizard conduit, direct-pull inlet, wire-barrel assembly and drum dolly

Robot cable management: Wire Wizard FANUC 100iD kit.

Workholding & Cell Construction

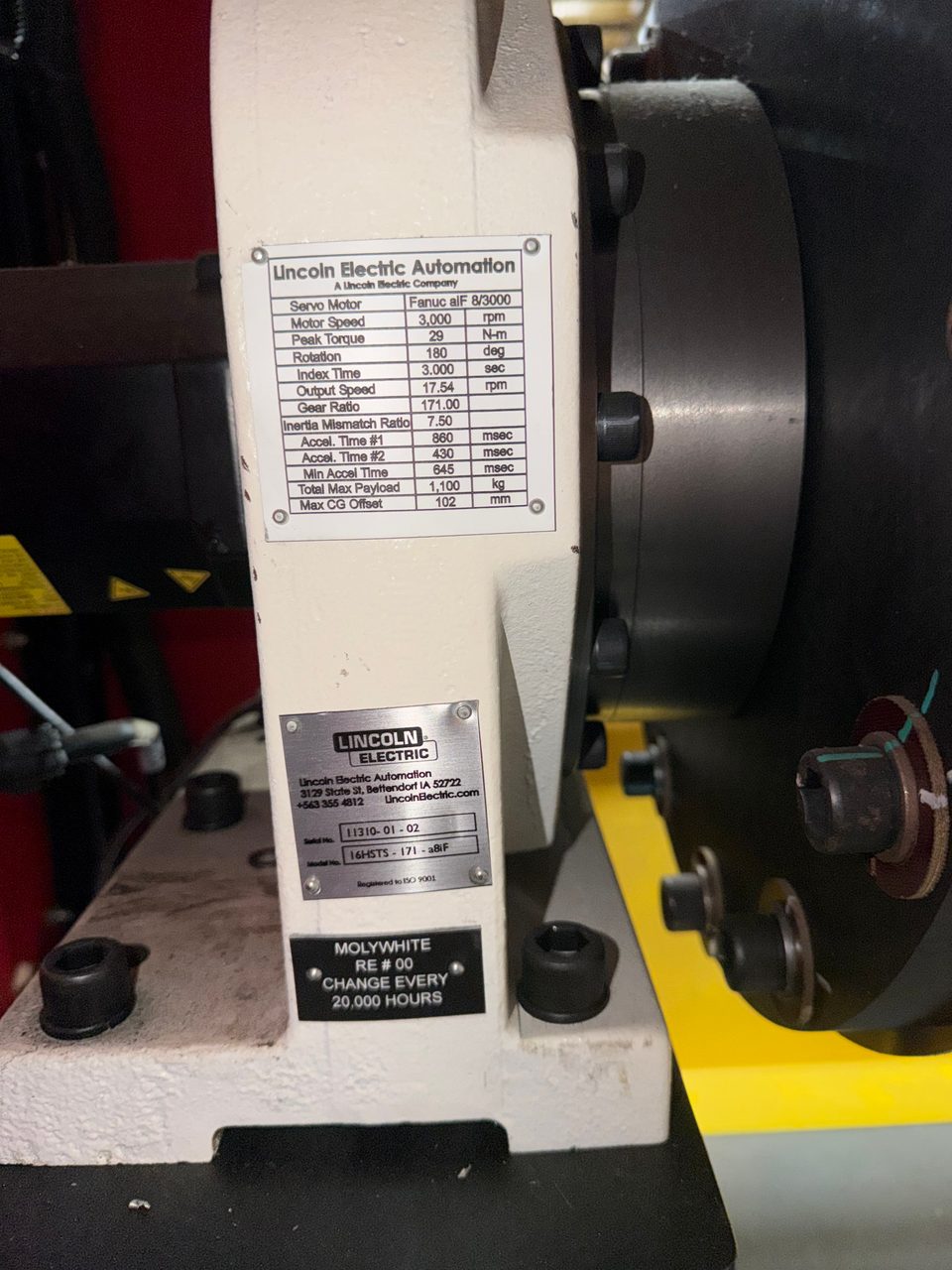

Positioner headstock: Lincoln Electric 16HSTS-171-a8iF with FANUC aiF8 motor

Tailstock assembly listed

Headstock risers and positioner adapter blocks

Fabricated robot base and riser

Leveling feet and pads

Operator access barrier guard

Robo-Fence perimeter guarding and hinged access gate.

Controls & Safety
Safety PLC: Allen-Bradley Compact GuardLogix 5380, 5069-L320ERS2

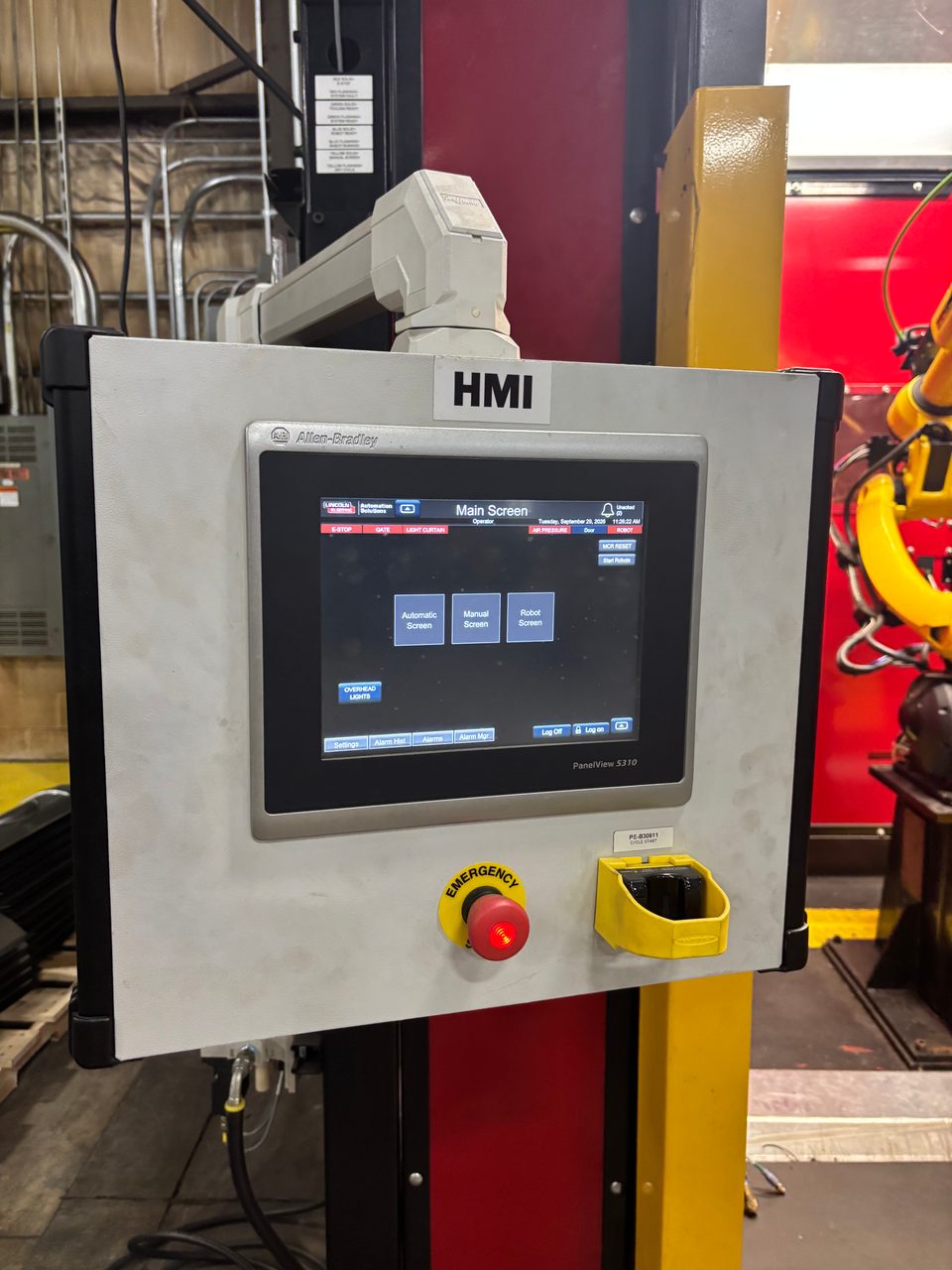

Operator interface: Allen-Bradley PanelView 5310, 10″ touchscreen, listed in electrical BOM

I/O: Allen-Bradley POINT I/O and POINT Guard I/O safety modules

Communications: EtherNet/IP adapter and Siemens SCALANCE XB208 managed eight-port Ethernet switch

Light curtain: Keyence GL-R60H, 20 mm resolution, 1,180 mm defined sensing height
