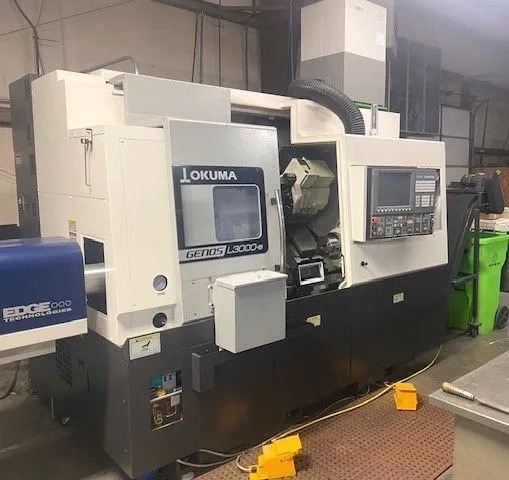

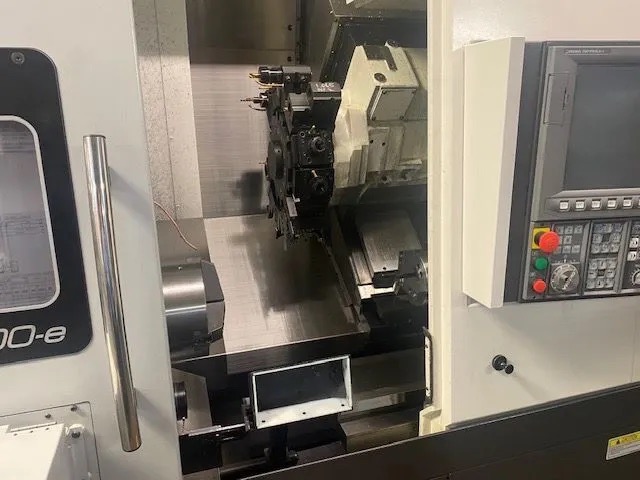

Okuma Genos L3000MYW-E Multi Axis CNC Lathe, 2023 – Bar Feeder, Sub Spindle, High Pressure Coolant

Chuck Size: 10″
Bar Capacity: 3.15
Swing: 20.47″
Turning Diameter: 15.35″
Distance Between Centers: 20.47″
X Axis Travel: 9.25″
Z Axis Travel: 18.11″
Y Axis Travel: 3.94″
B Axis Travel: 20.47″
C Axis Index: 0.001°
Spindle Nose: A2-8
Spindle Speed: 3,800 RPM
Spindle Motor: 30 HP
Live Tooling Speed: 6,000 RPM
Live Tooling Motor: 7.5 HP
Sub Spindle Chuck: 6″
Sub Spindle Bar Capacity: 2.09″

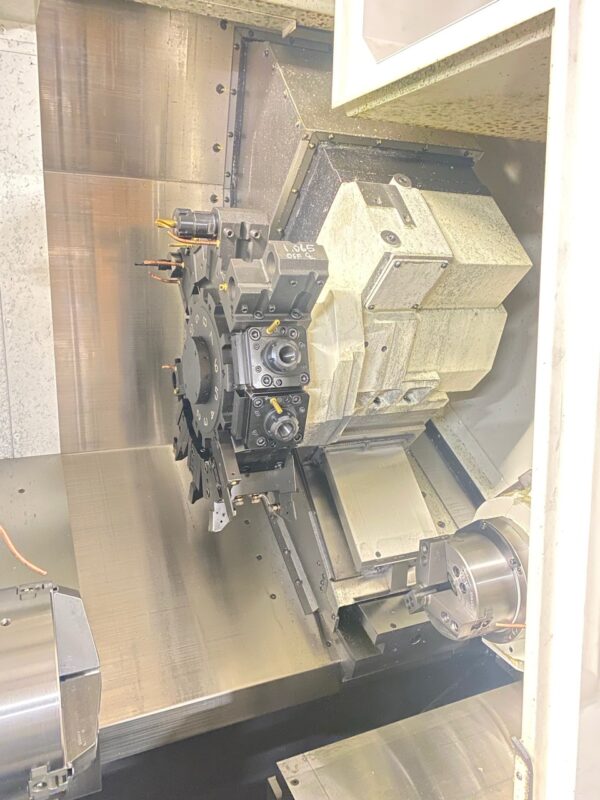

Turret Capacity: 12
Machine Weight: 13,500 LBS

Equipped With:

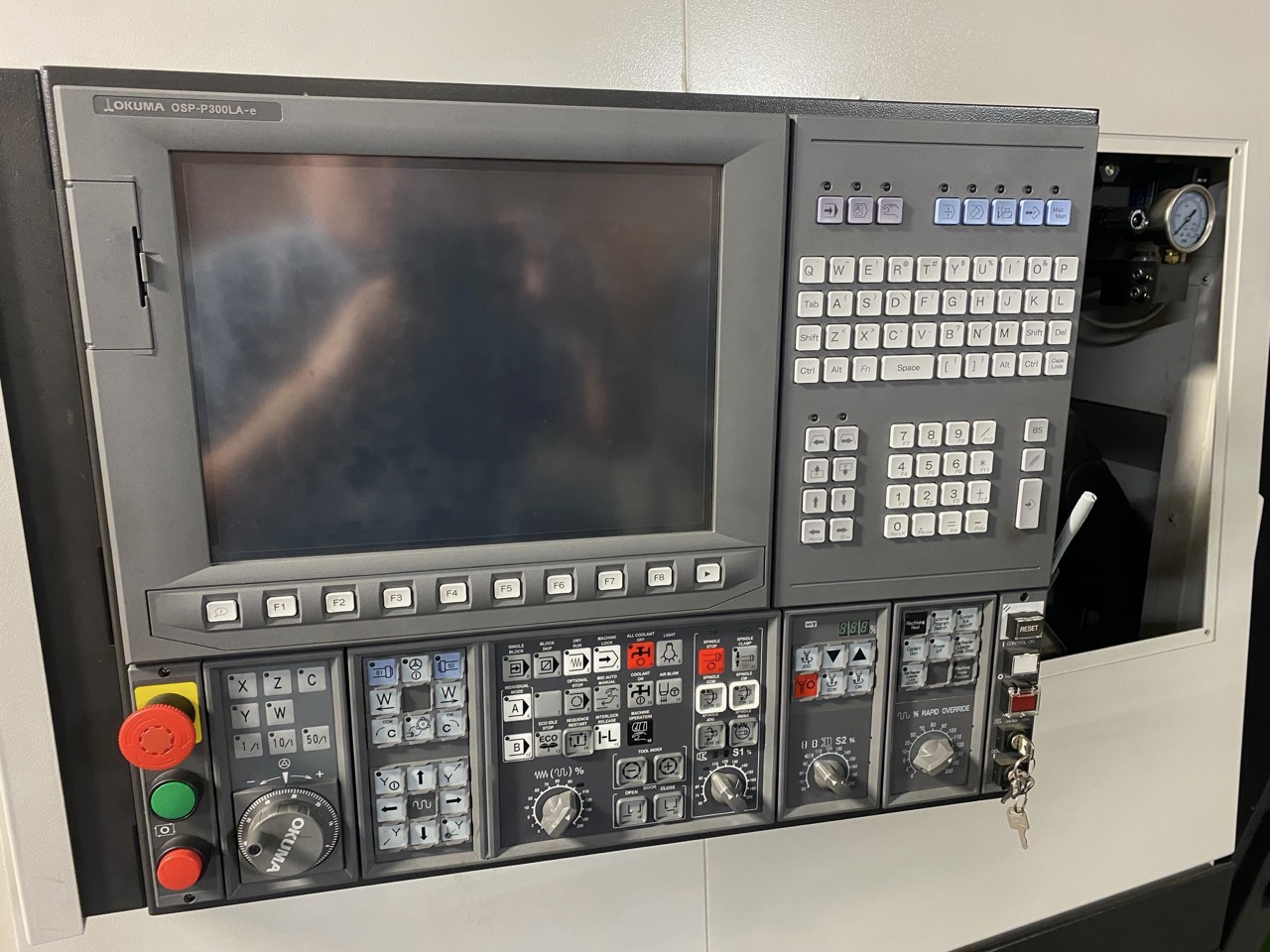

Okuma OSP-P300LA-e Control

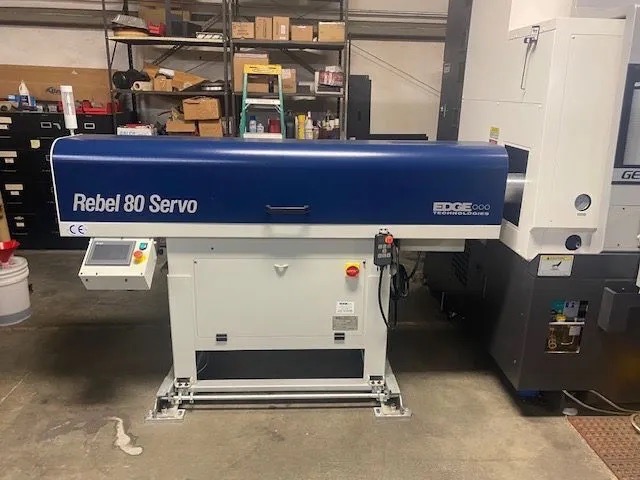

Edge Rebel 80 Servo Barfeeder
Parts Catcher
Sub Spindle
Y Axis
Manual Adjust Pressure
Mist Collector

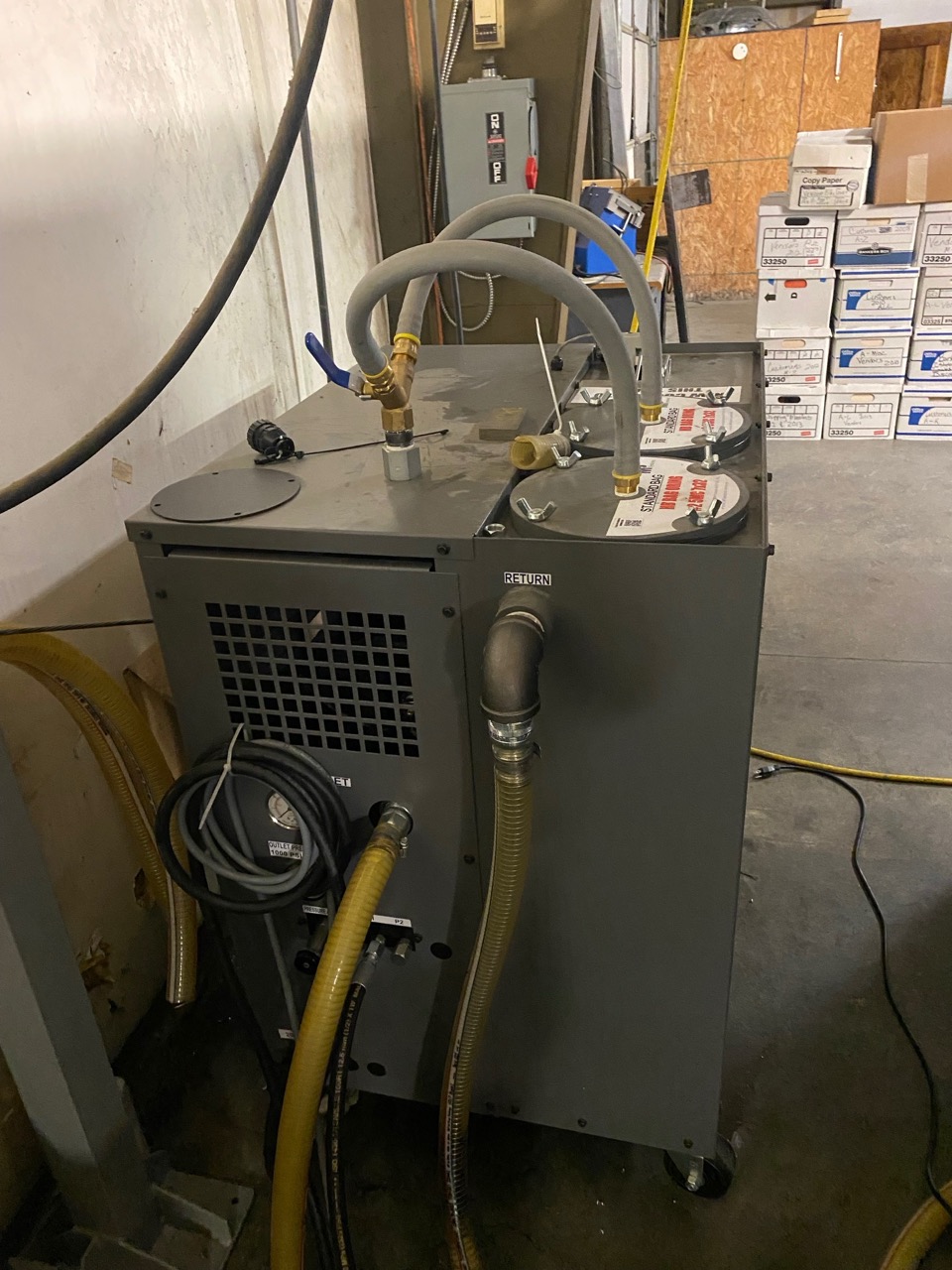

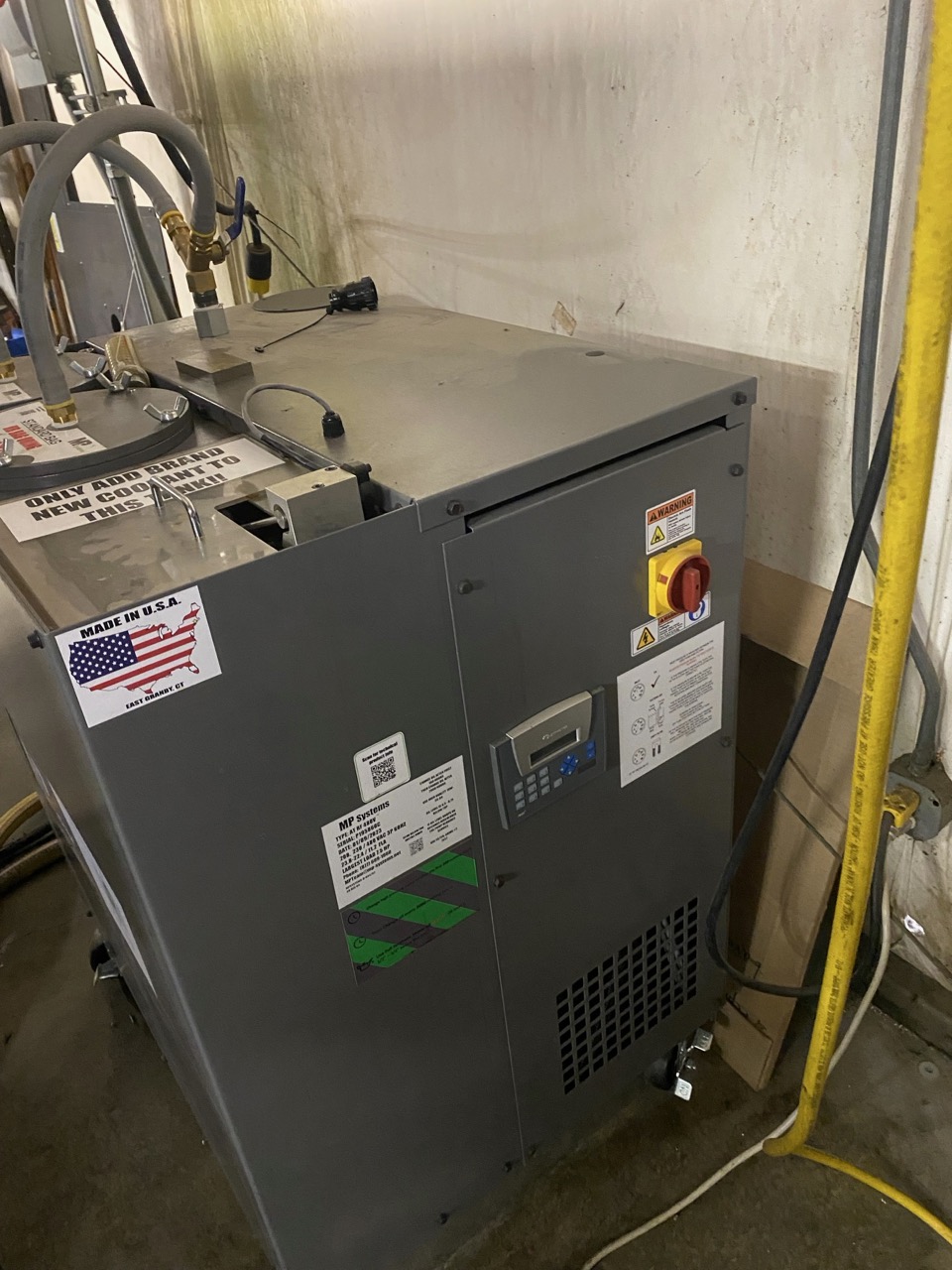

High Pressure Coolant
Chip Conveyor
