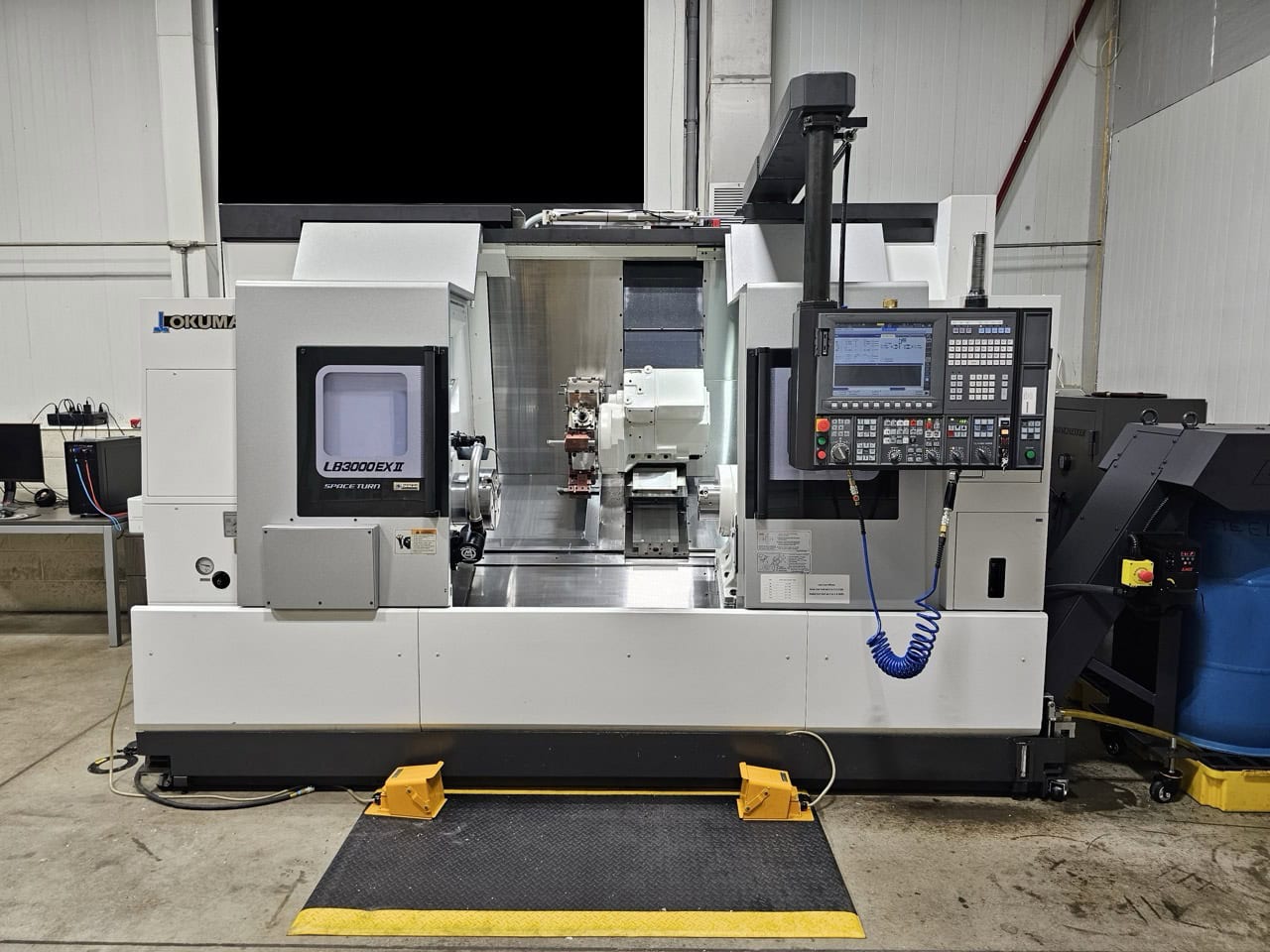

Okuma LB3000EX2-MYW 800 CNC Lathe, 2022 – Very Low Hours

**Spindle cutting time: 77 hours and 35 minutes*
Spindle + Live tooling time: 173 hours and 46 minutes**

22.83″ Swing ø 13.39″ max turn dia.
30 HP (22kw) main spindle
5,000 rpm A2-6 spindle nose
3.15″ through spindle (80mm)
12 position, 0.1 sec, NC Multitasking tool turret
1,181 IPM / 984 IPM / 492 IPM; Z/X/Y rapid traverse
Hardened and ground box ways X, Y, Z
ø140 flat sub-spindle 15/10 hp 50-6000 rpm 83 ft lbs
Sub-spindle hollow cylinder 1.77 in. dia.
Milling Capacity: 3.7 in3/min
Milling spindle 9.5/5.5 hp
Y-axis +2.76″ / -1.77″
Manual touch setter
Swing over way covers 22.83″
Swing over saddle 18.5″
Max turning dia 13.39″
X-axis travel 10.24″
Z-axis travel 39.76″
4.6 hp Y-axis servo

X-axis ball screw 1.26″ dia. servo power 4.7 hp
Z-axis ball screw 1.57″ dia. servo power 6.1hp
For rigging estimates, (138”L x 80”W x 98”H x 17,500lbs)

Equipped With:
Y-Axis
Live Tooling
Sub-Spindle
Kitagawa Chucks Included
LNS Turbo Conveyor Included
AUTO DOOR W/ DUAL CYCLE 1-Y0601-01,
Tool Setter
RPD TRVRS 1-Y1366-00 (Not sure what this is, but it has it)
ROBOT ABX I/F 1-Y1114-00
**Tooling Package available at discounted rate**
