Takamaz XY120 Lathe, 2004- 6 Axis, Live Tooling, Parts Conveyor

$59,900.00

Request a Quote to Instantly See Pricing

Call Now

Machine Type: Multi Axis Lathes
Make: Takamaz
Model: XY120
Year: 2004
Machine Location: Upon Request
Stock #: 056333

Max. turning diameter – Main / Sub-Spindle: 170 / 135 mm
Max. turning length: 330 mm
Max. bar diameter: 42 mm
Chuck Size – Main / Sub-Spindle: 6″ / 6″
Spindle Nose – Main / Sub-Spindle: A2-5 / Flat Type
Spindle Indexing – Main / Sub-Spindle: C / Cs
Spindle speed – Main / Sub-Spindle: 4500 / 4500 rpm
Turret:
Type: 12-station VDI: 30
X-Axis: 150mm
Z-Axis: 330mm
Y-Axis: +/- 30mm
A-Axis: 380mm
Main Spindle:
Motor: 7.5 / 5.5 kW
Sub-Spindle:
Motor: 3.7 / 2.2 kW
Live Tools:
Tool storage capacity: 12 each
Spindle Speed: Max. 4,000 rpm
Motor: AC 3.7 / 2.2 / 1.5 kW
C-Axis:
Rapid Traverse Rate – Main – Sub-Spindle: 50 / 60 rpm
Motor: 0.5 / Cs
General:
Spindle center height: 960 mm
Dimensions (L x W x H): 2400 x 1650 x 1700mm
Weight: 3,500 kg
Total electric capacity: 27 kVA
Equipped With:

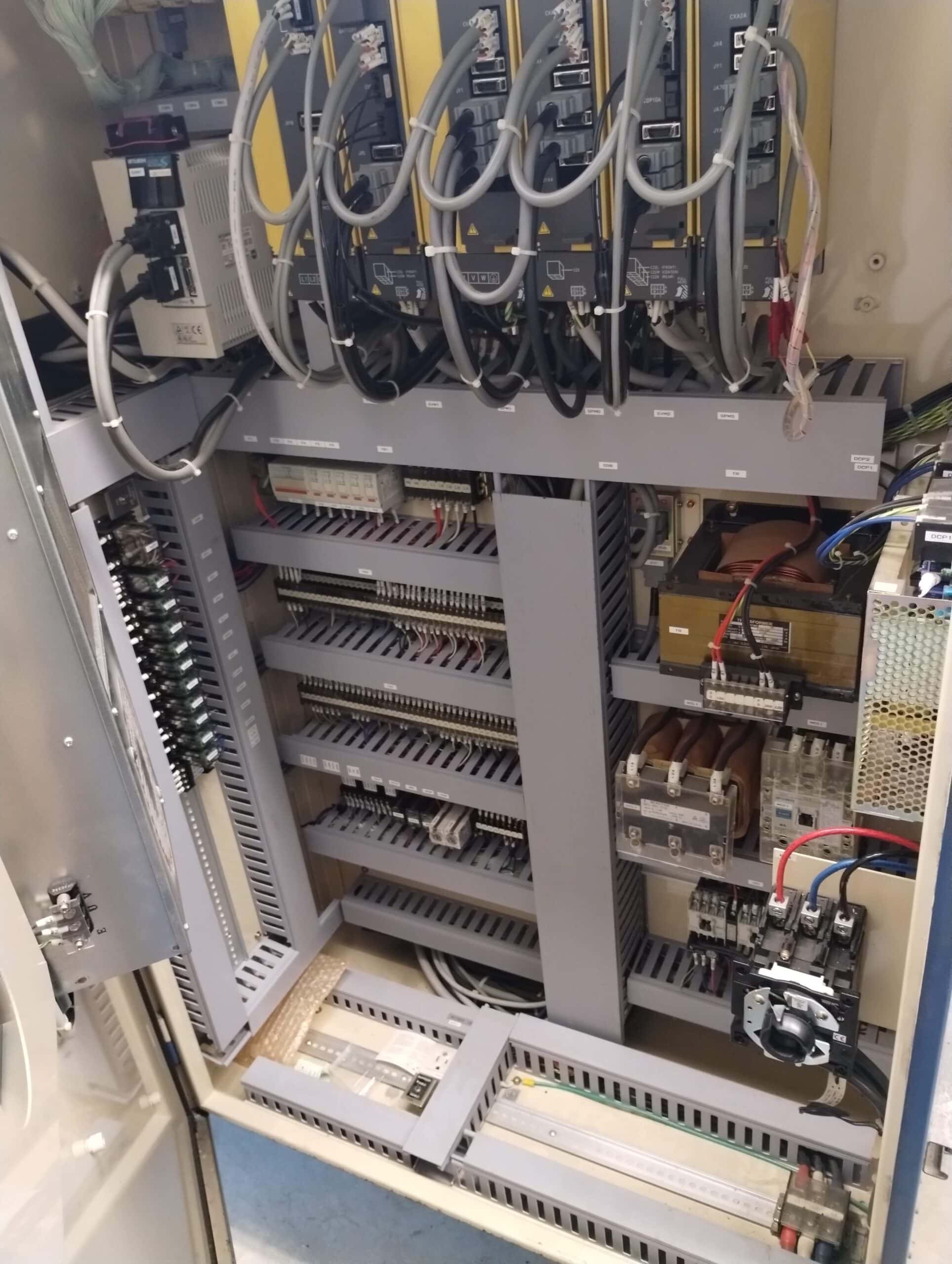

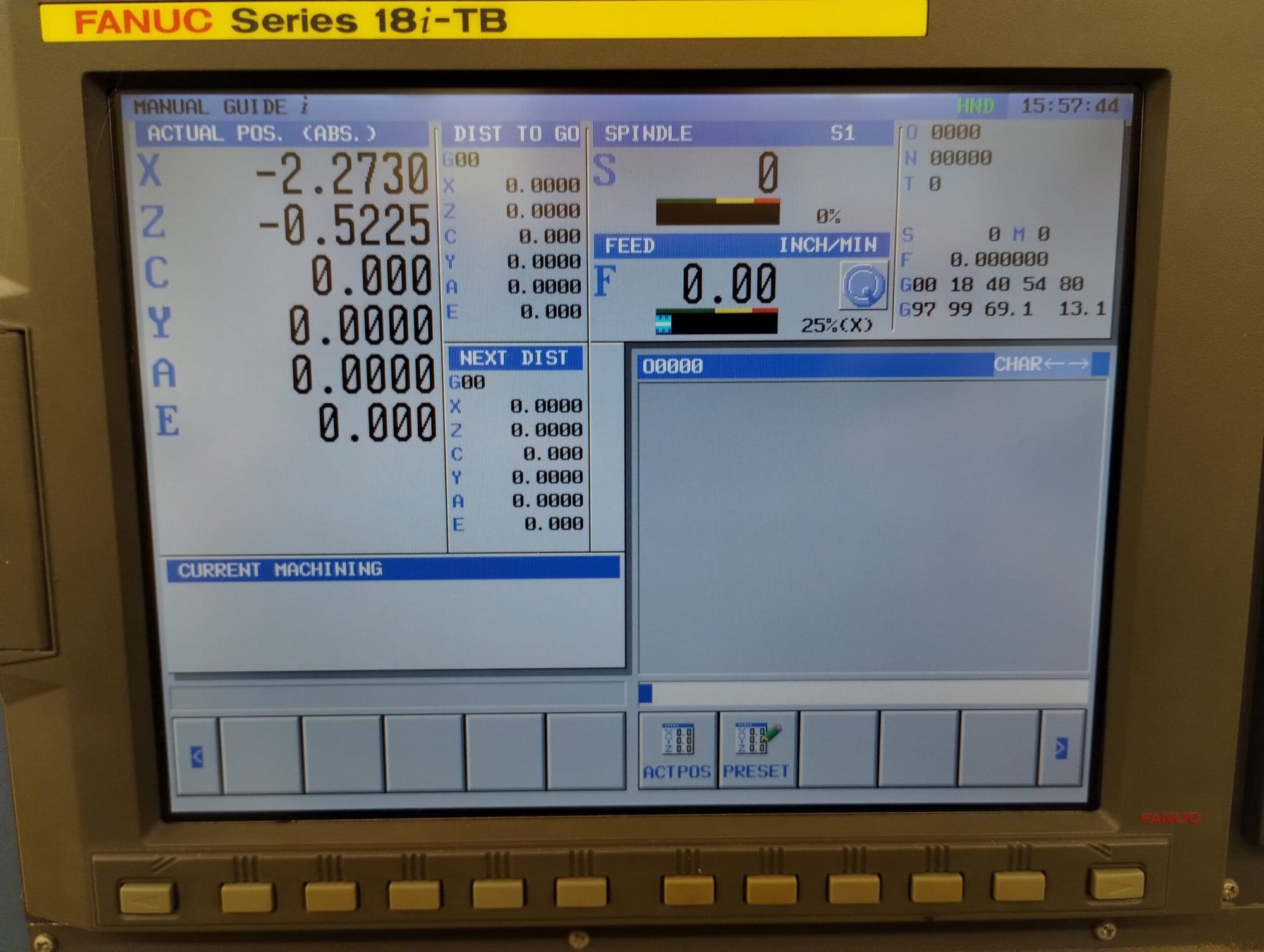

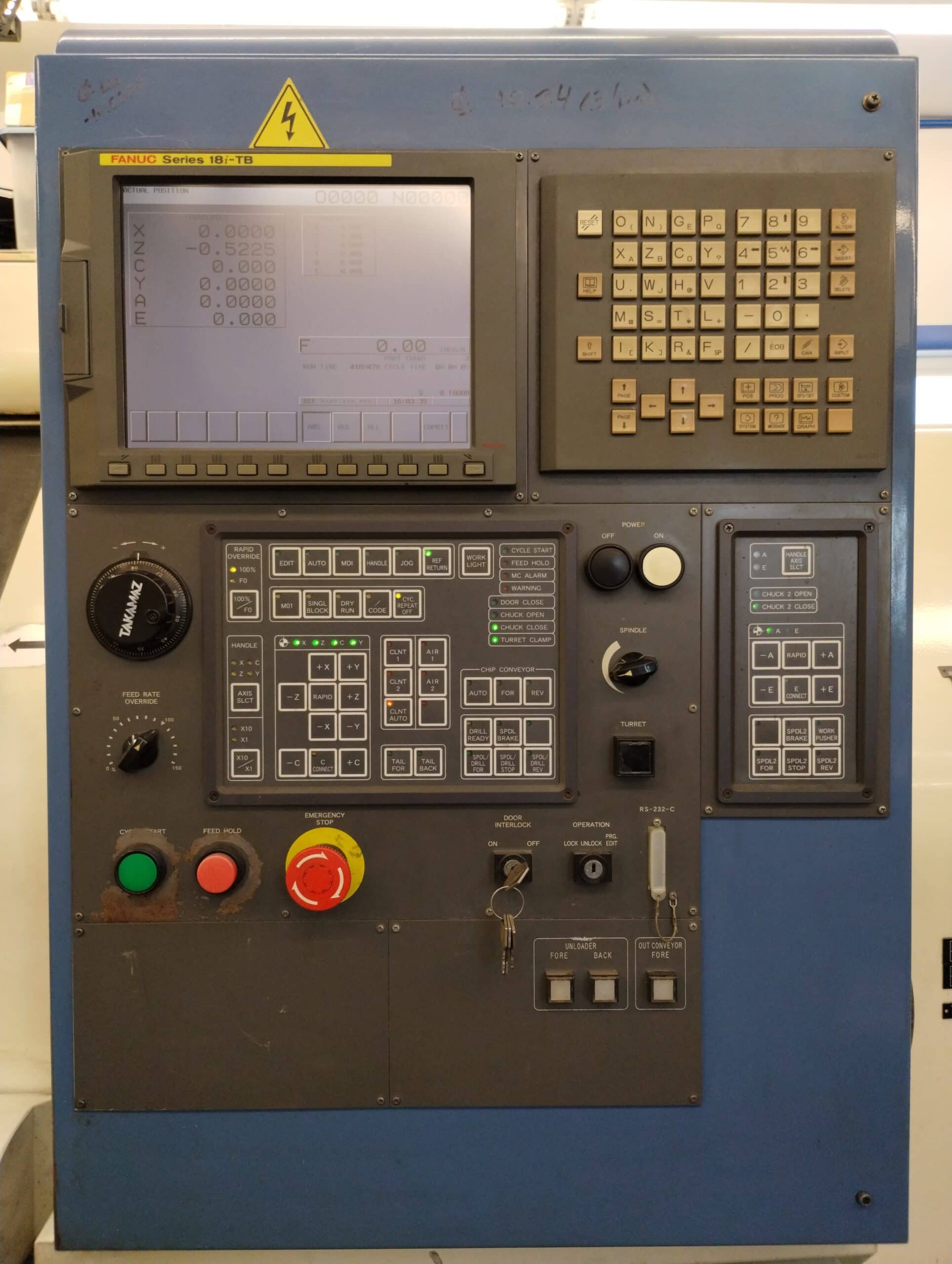

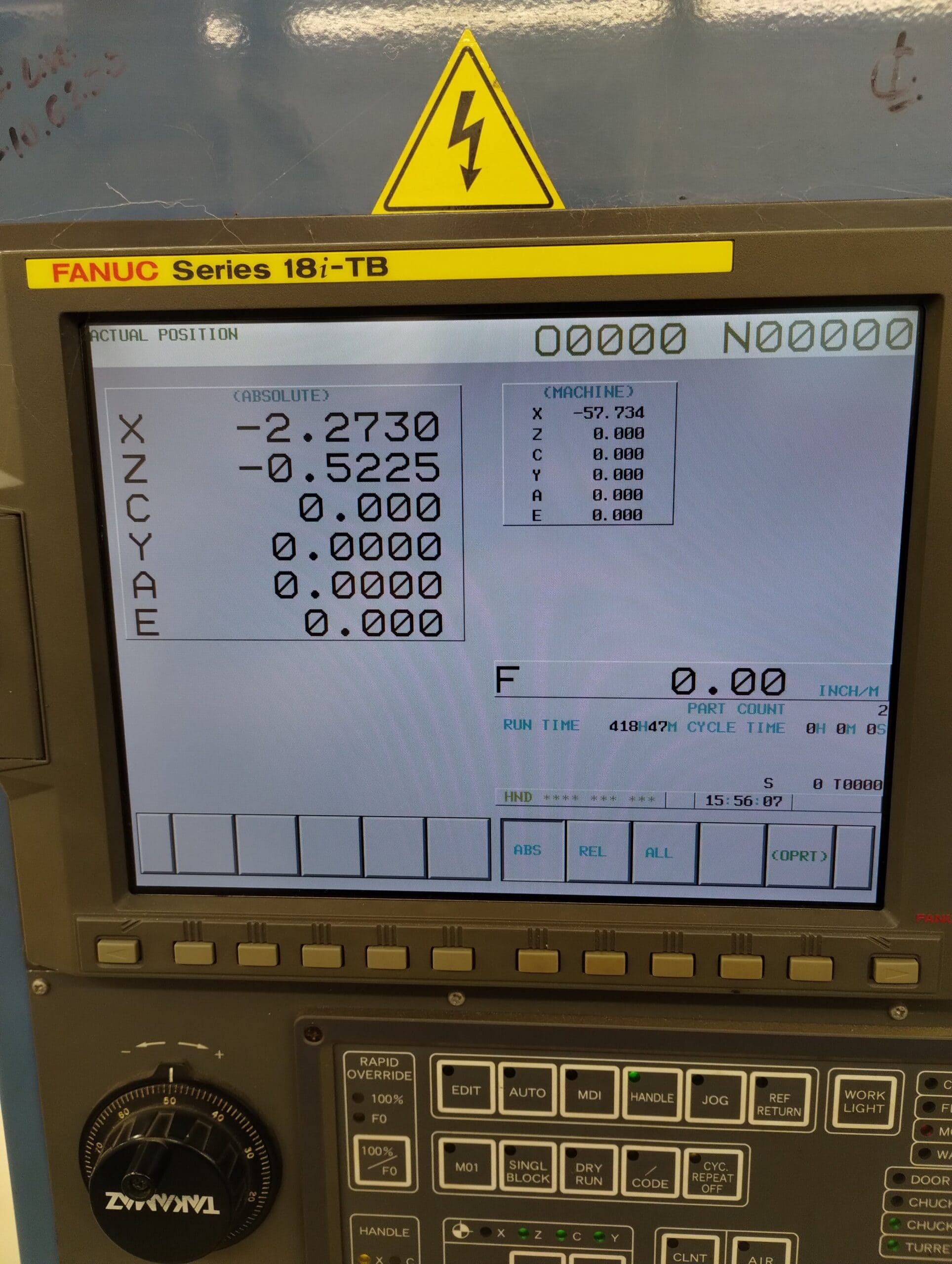

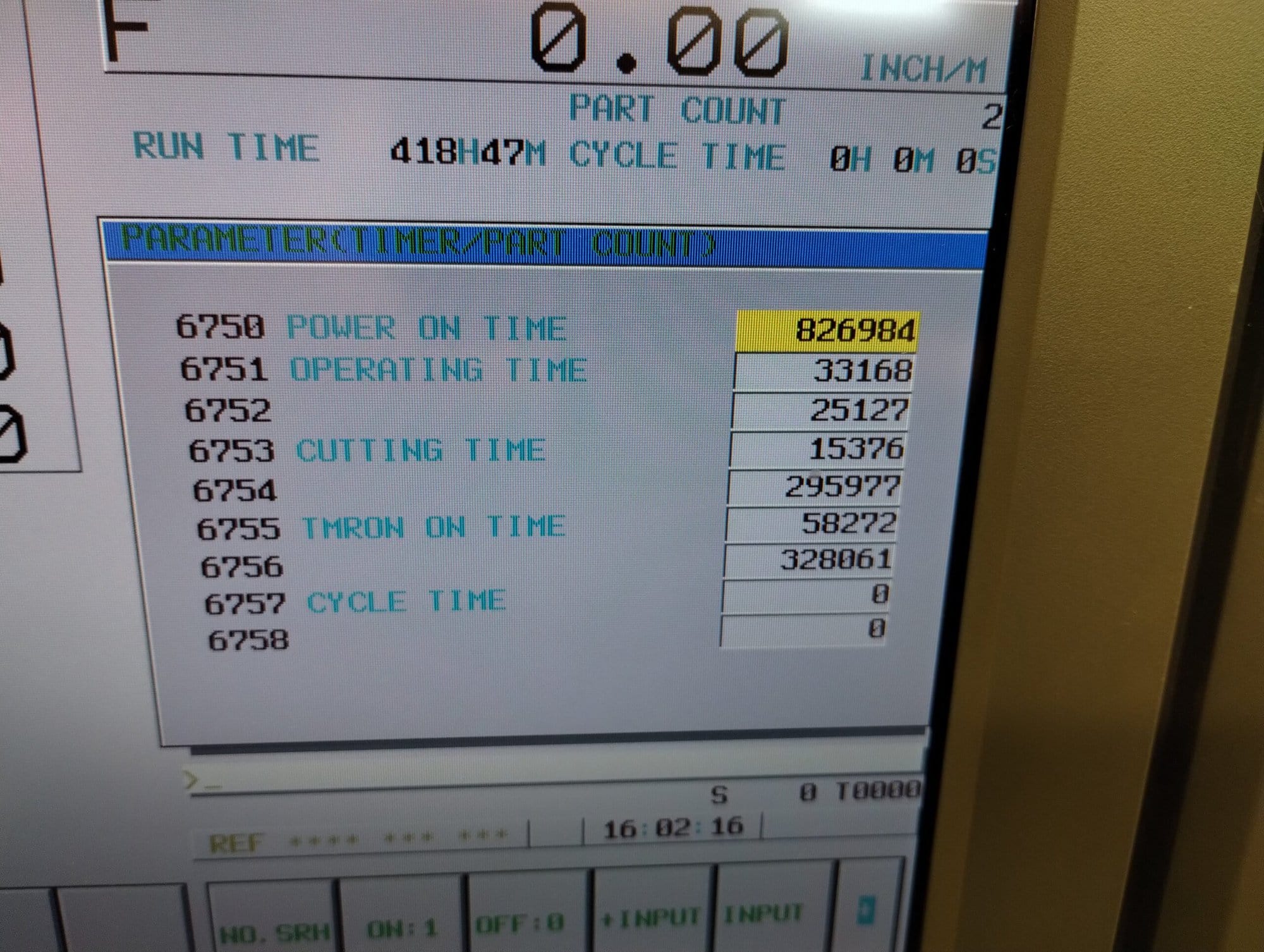

Fanuc 18i-TB with Manual Guide I Conversation Programming

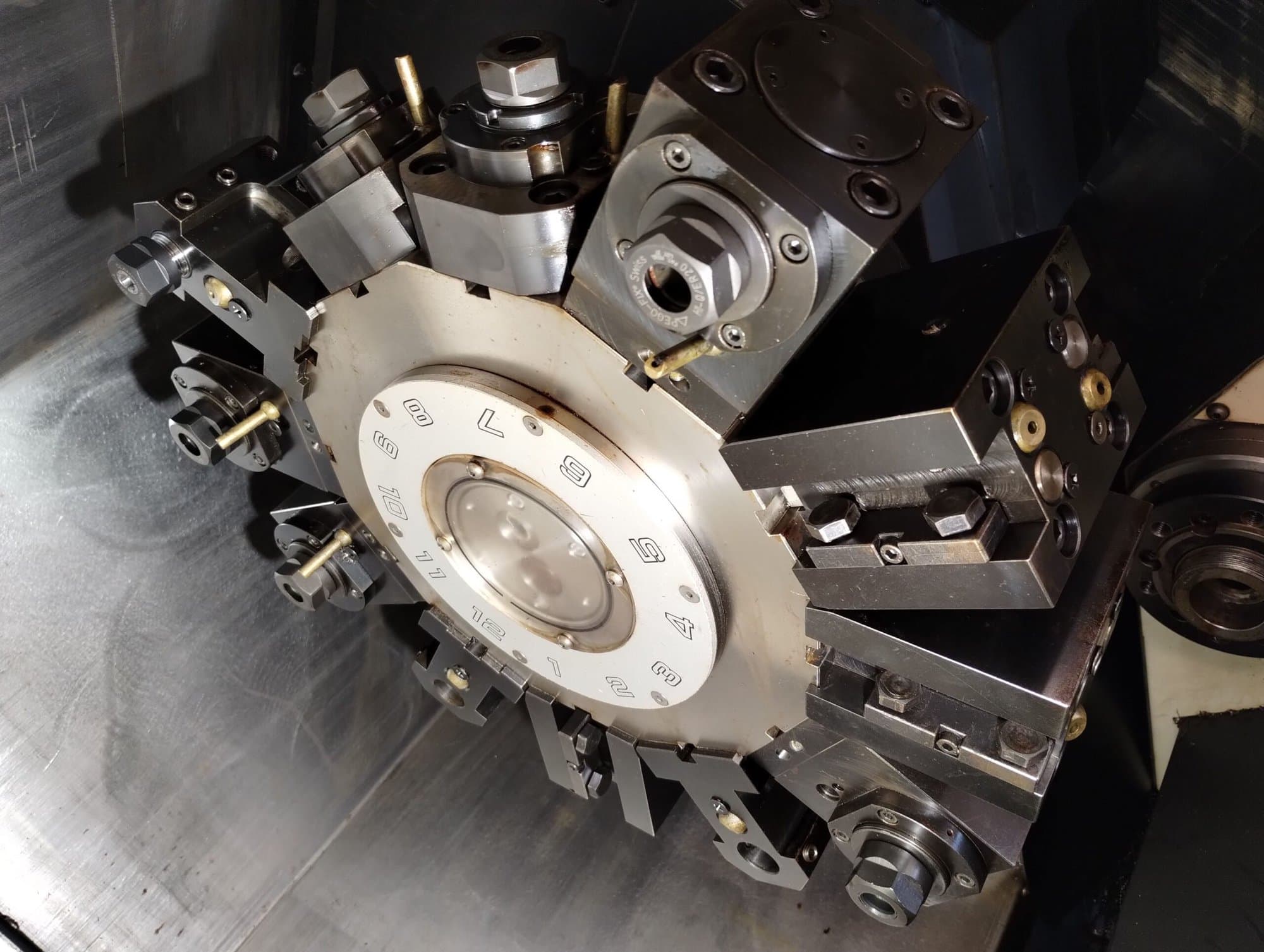

12-Station Turret

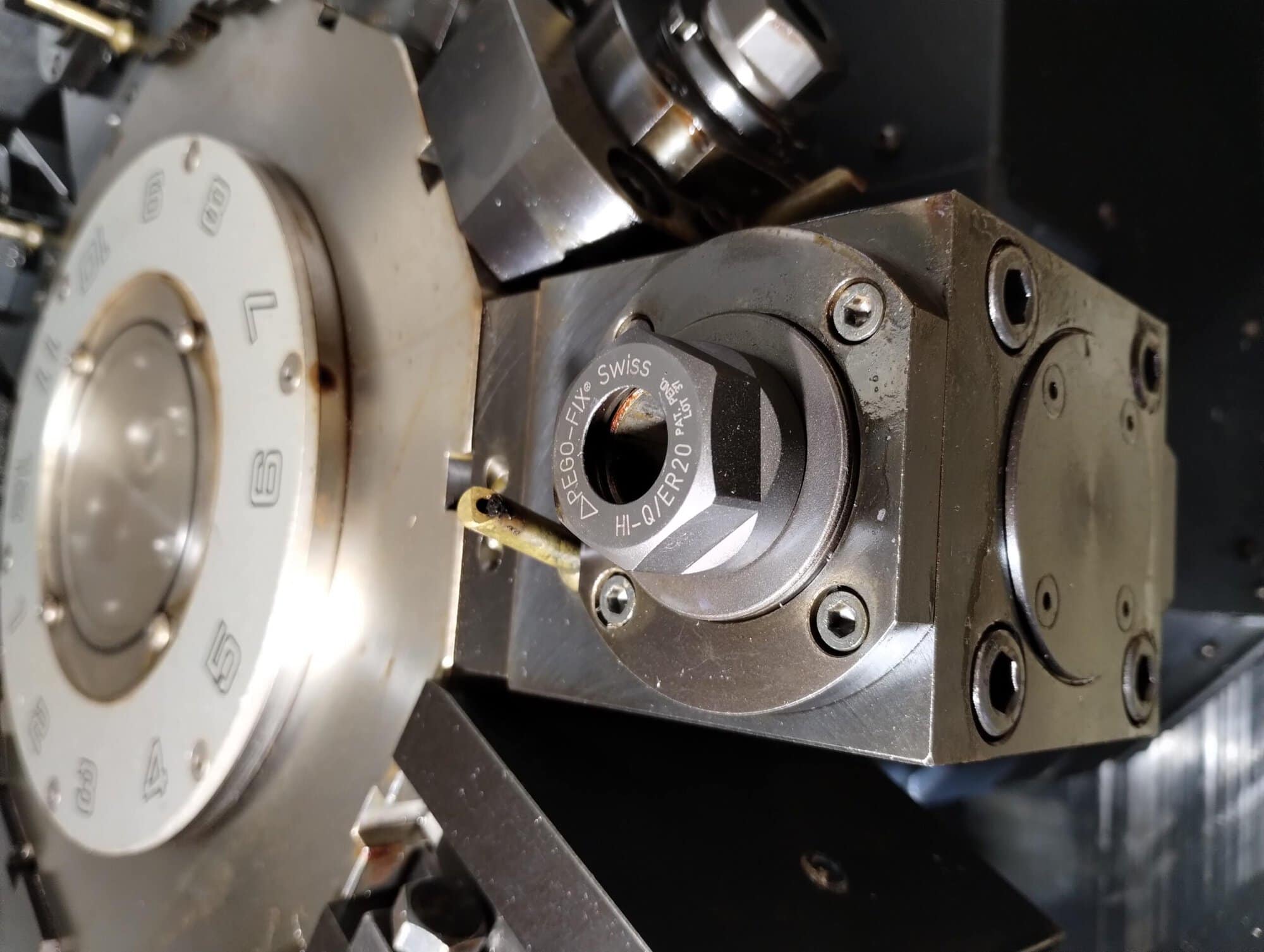

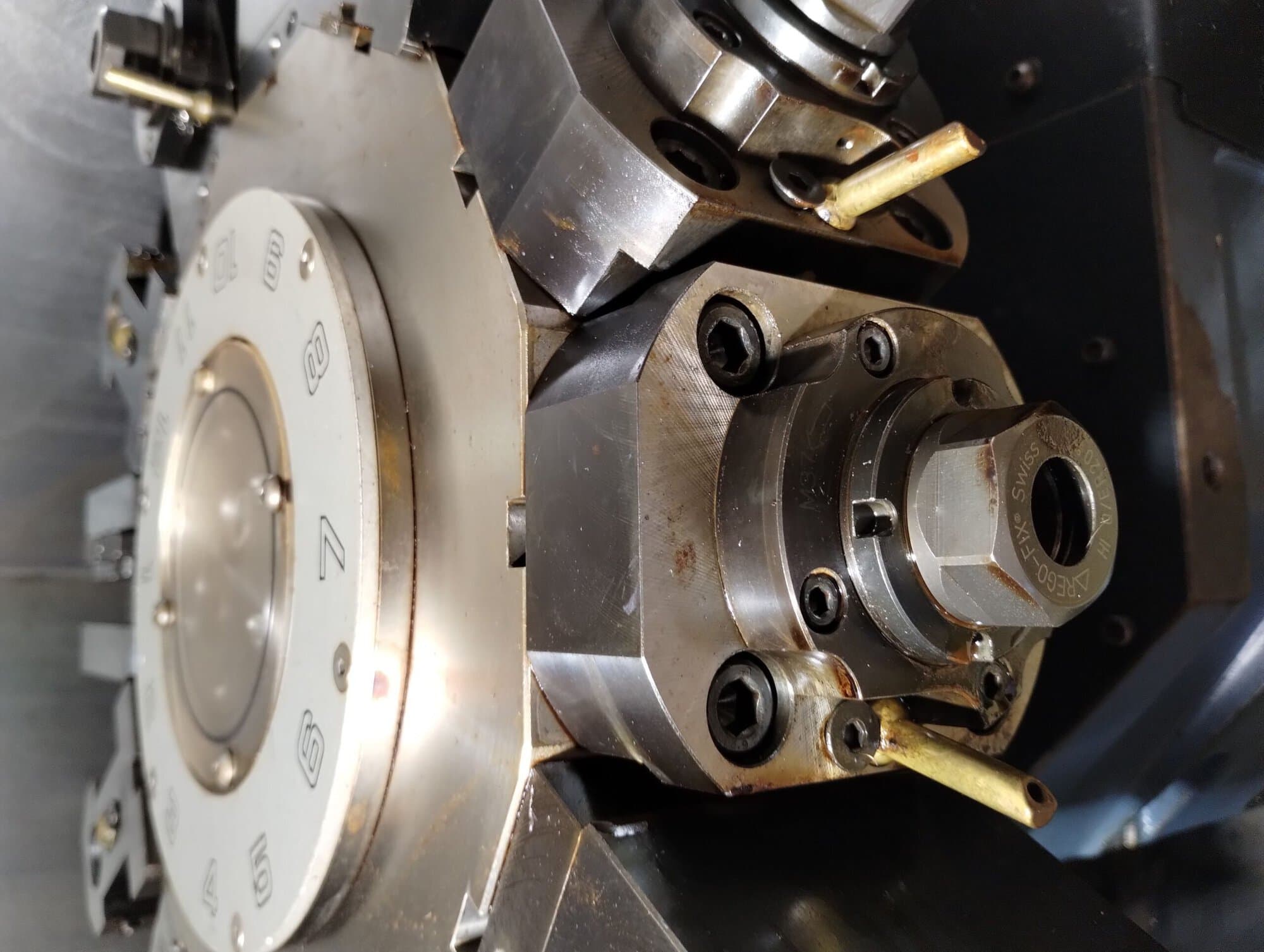

4 Axial and 2 Radial Live Tool Blocks
Static Tooling Blocks
5 Boring
4 O.D. Double Holders (facing both Main and Sub)
1 Cutoff Holder
2.05 Thru Bore
6″ Three Jaw Chuck on Main Spindle Sub-Spindle
16C Collet Chuck (can accept up to 5″ MultiJaw)
Matching 16C Collet Chuck also included for Main

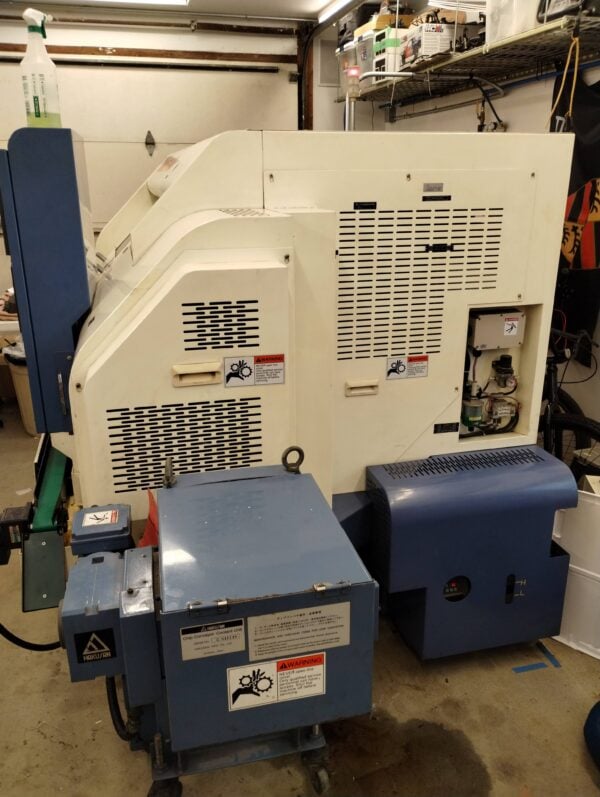

Parts Catcher and Part Conveyor Chip Conveyor
All Available Books and Manuals
Assorted 16 Collets and Hard-Soft Jaws included

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
