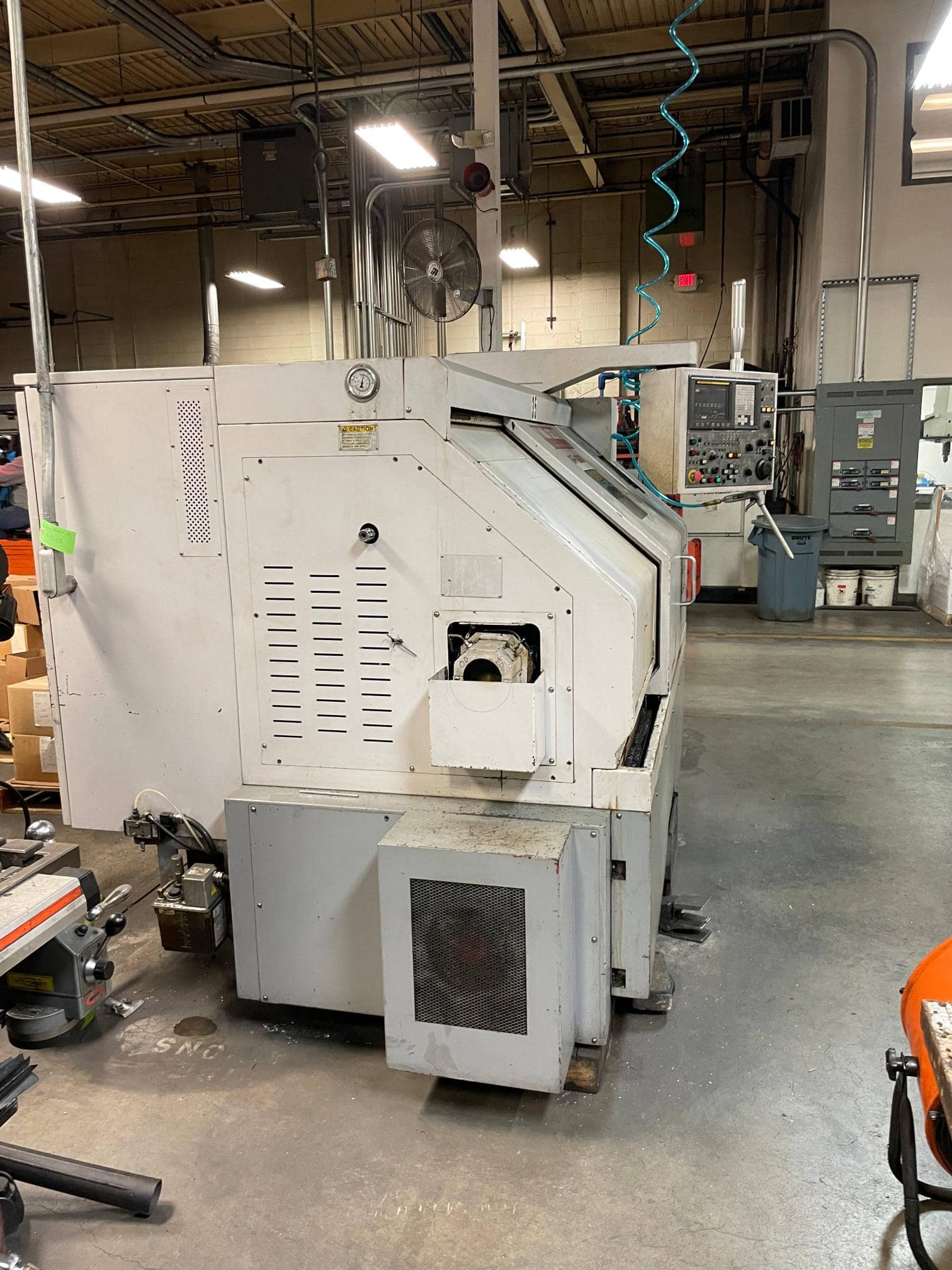

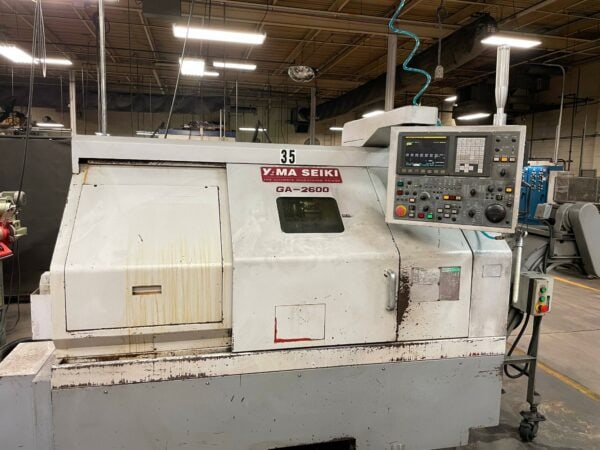

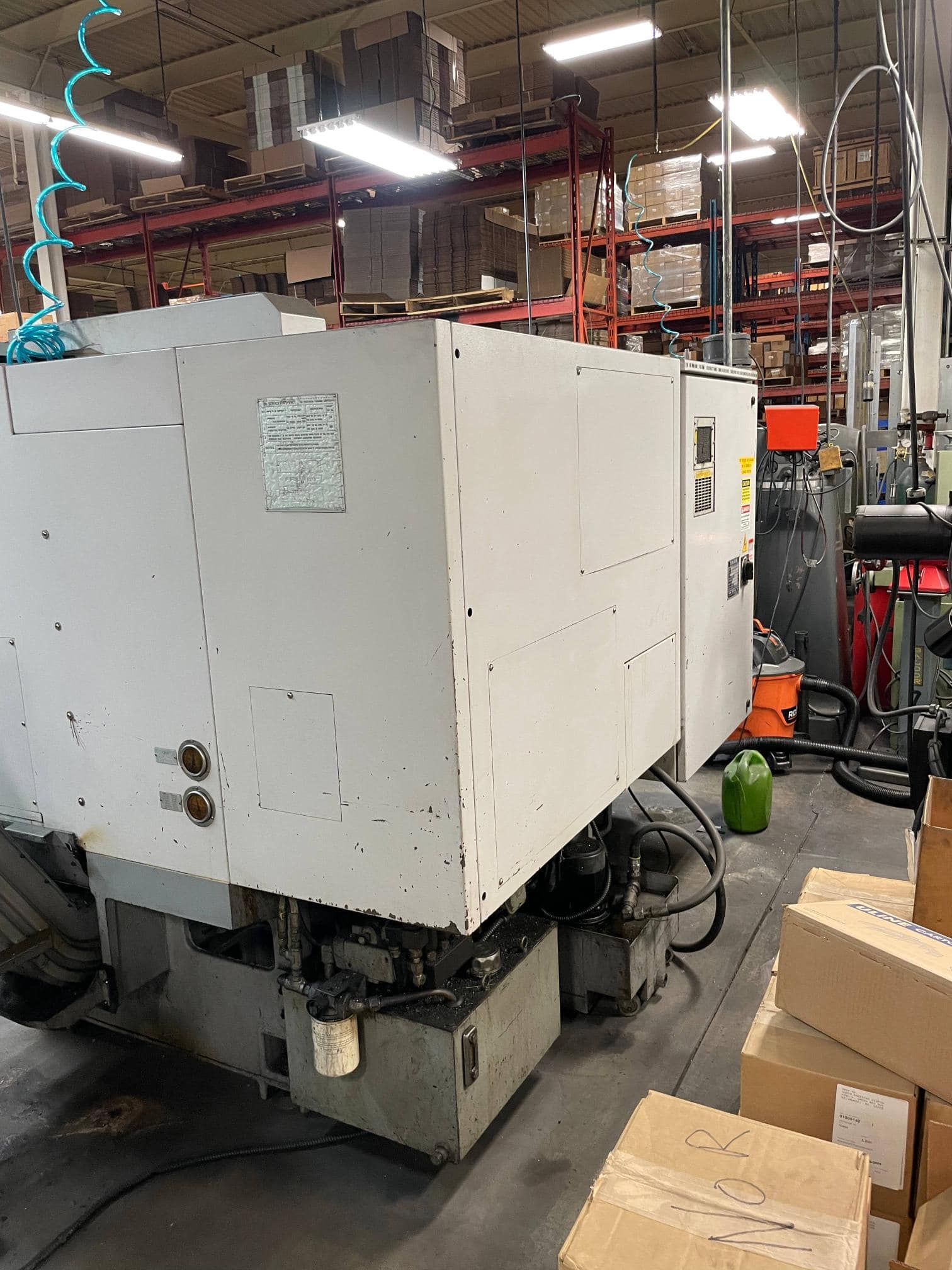

Yama Seiki GA-2600 CNC Lathe, 2004 – Chip Conveyor, Tailstock, Fanuc Oi-TC, Videos Available

$16,900.00

Request a Quote to Instantly See Pricing

Call Now

Machine Type: CNC Lathes
Make: Yama Seiki

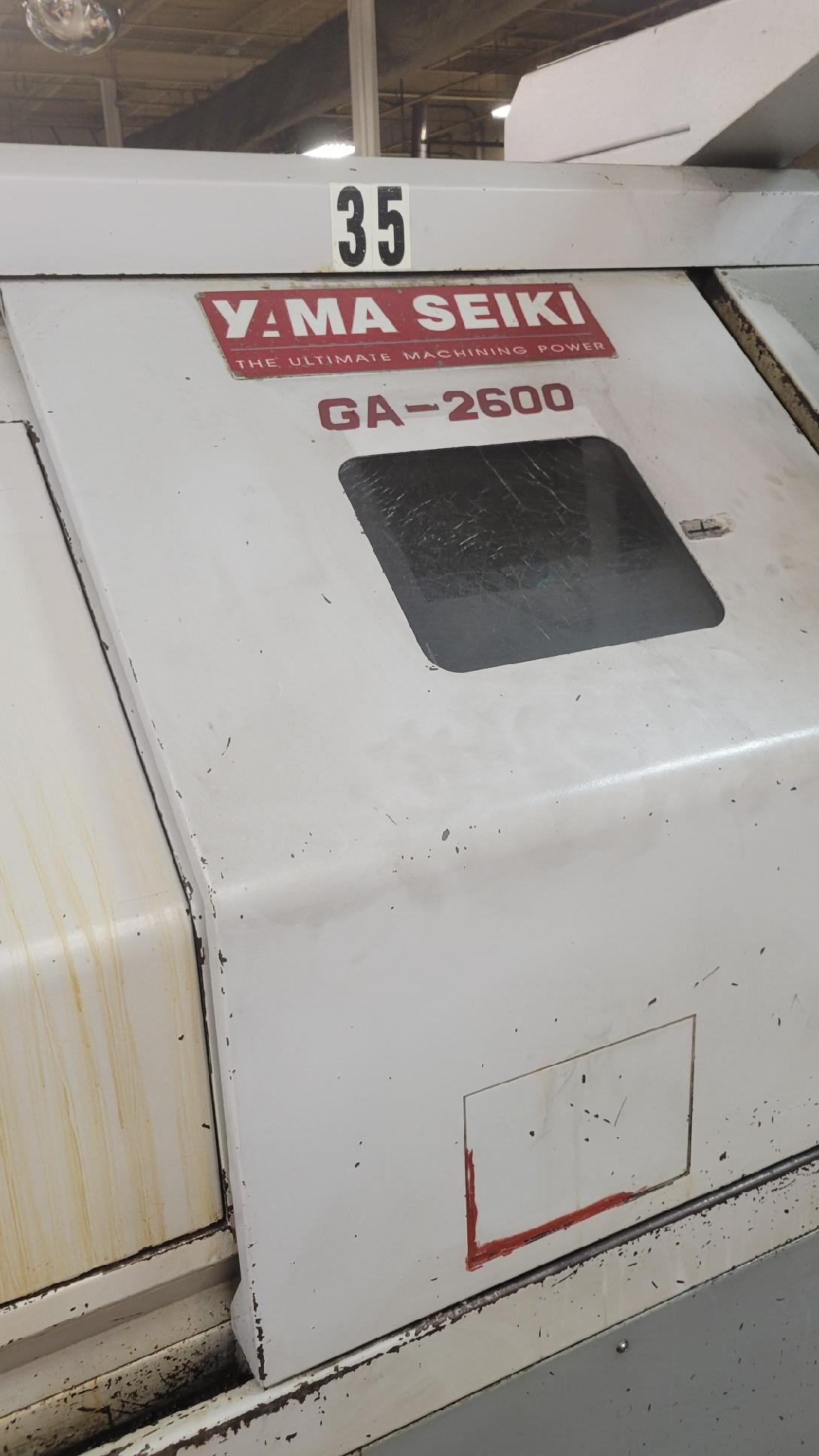

Model: GA-2600
Year: 2004
Machine Location: Wisconsin
Stock #: 287409

YouTube video

Max. Swing Diameter: 22.83″
Swing Over Saddle: 15.74″
Max. Turning Diameter: 13.77″
Max. Turning Length: 23.86″
Max. Workpiece Weight: 506 lbs.
Chuck Size: 10″
Bar Capacity: 2.55″
Spindle Through Hole: 2.99″
Spindle Bearing Diameter: 4.72″
Spindle Nose: A2-8
Spindle Drive: Direct Belt Drive
Spindle Motor: 15 HP
Spindle Speed: 20-4,000 RPM
Slide Ways: Hardened & Ground Box Ways
X-Axis Travel: 8.07″
Z-Axis Travel: 13.77″

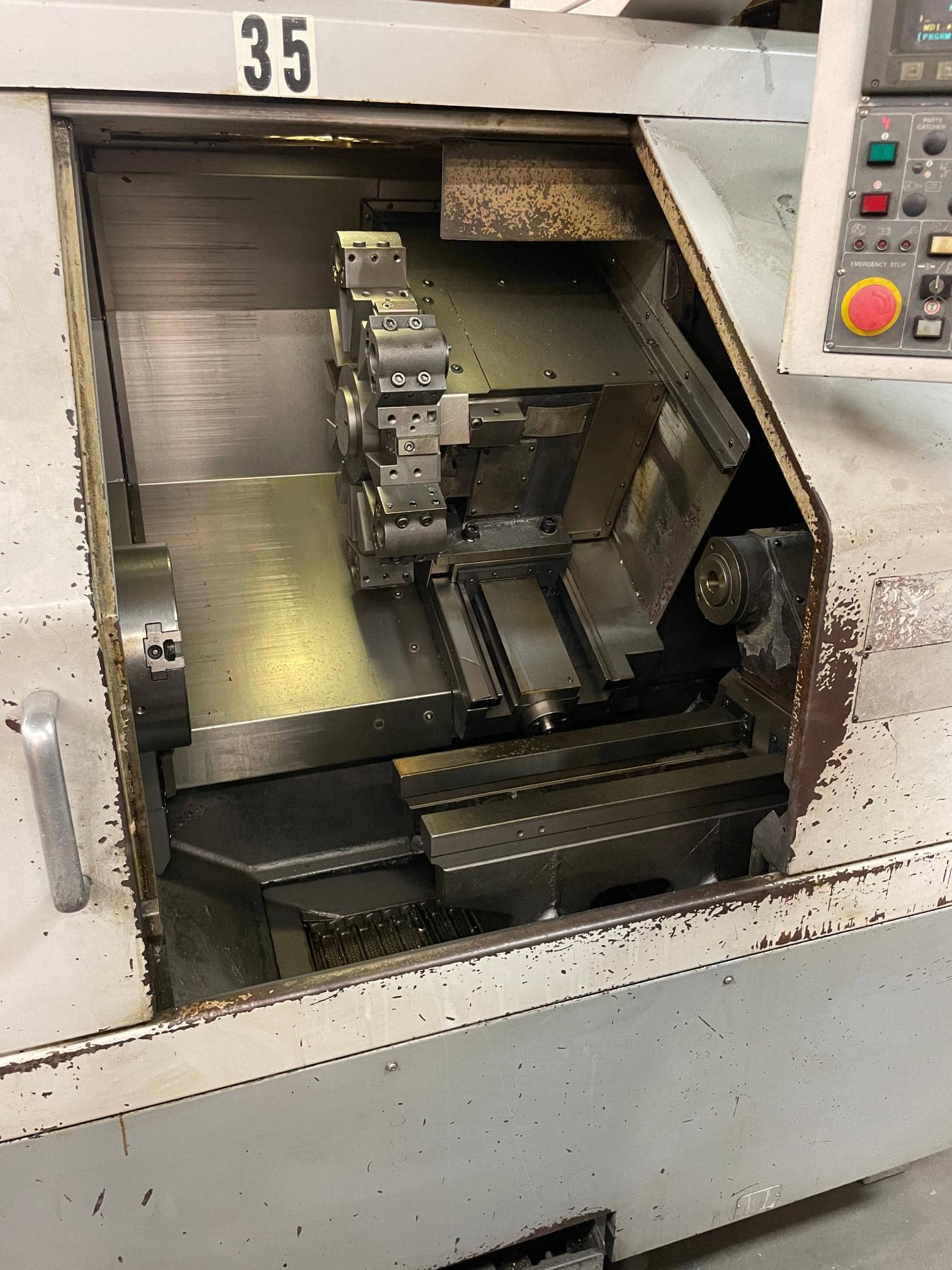

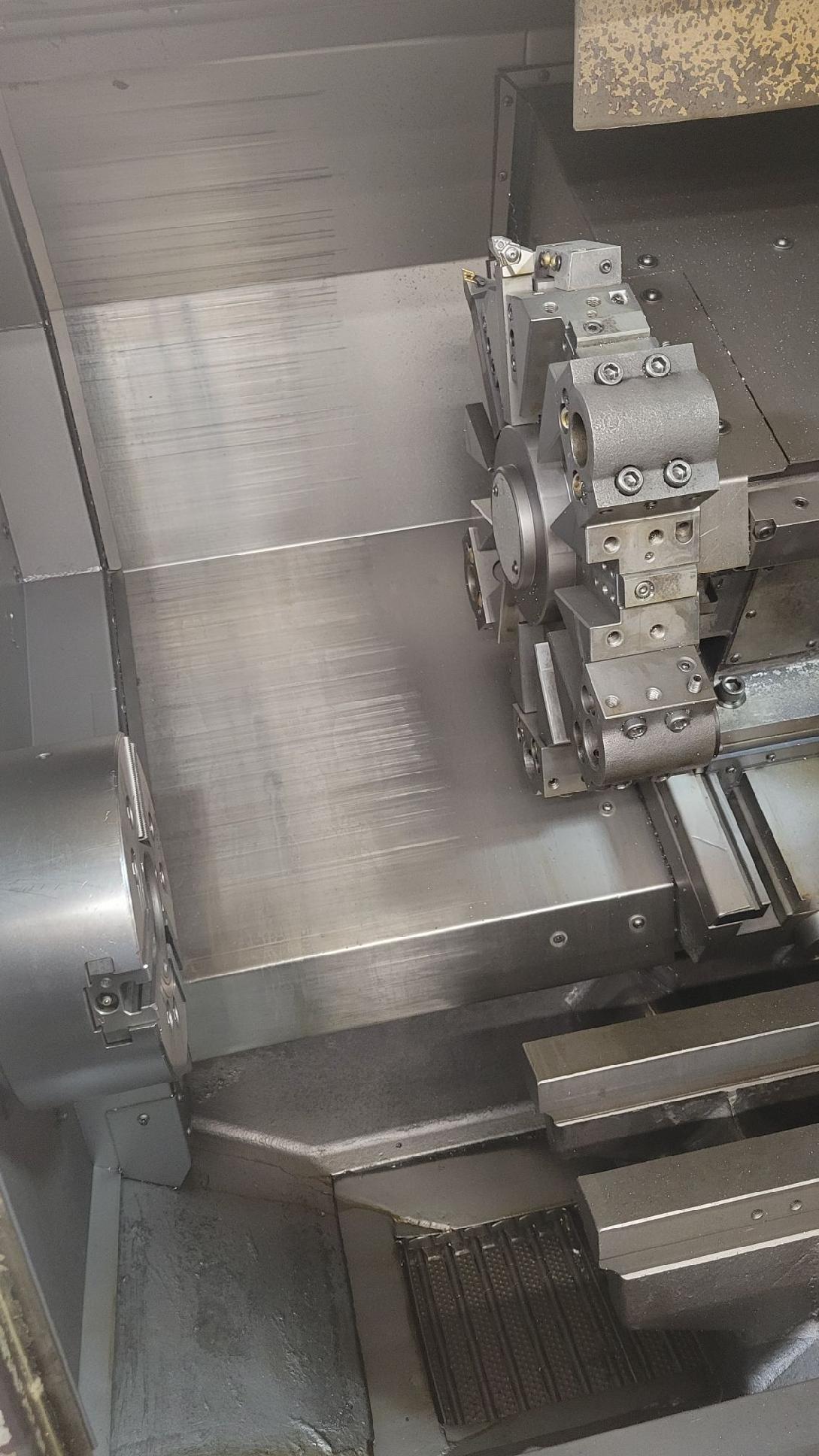

Turret Capacity: 12 Tools
Tailstock Quill Taper: MT#4
Quill Diameter: 2.75″
Quill Travel: 5.90″
Weight: 8,800 lbs

Equipped With:

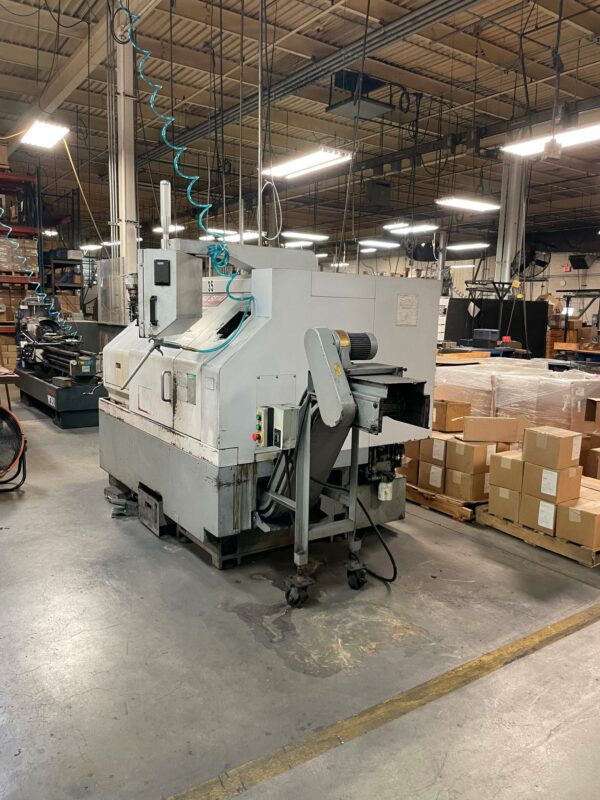

Chip Conveyor

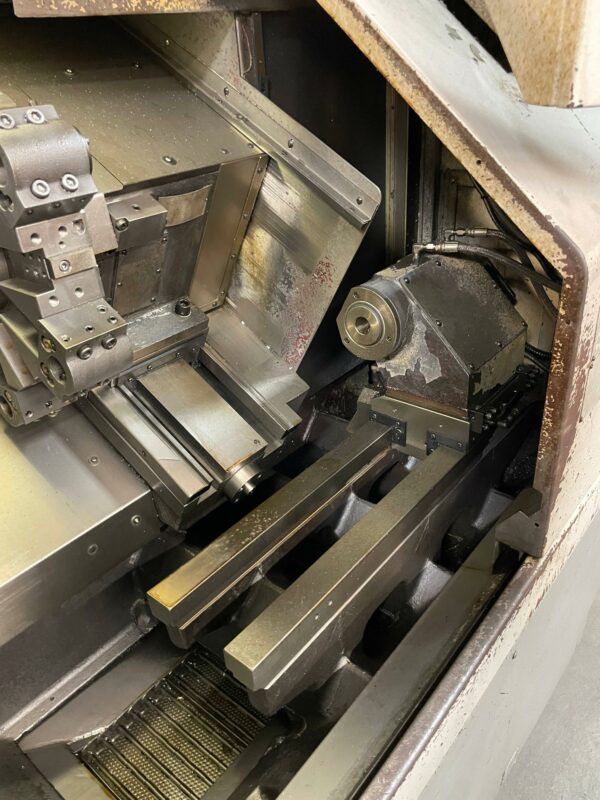

Tailstock

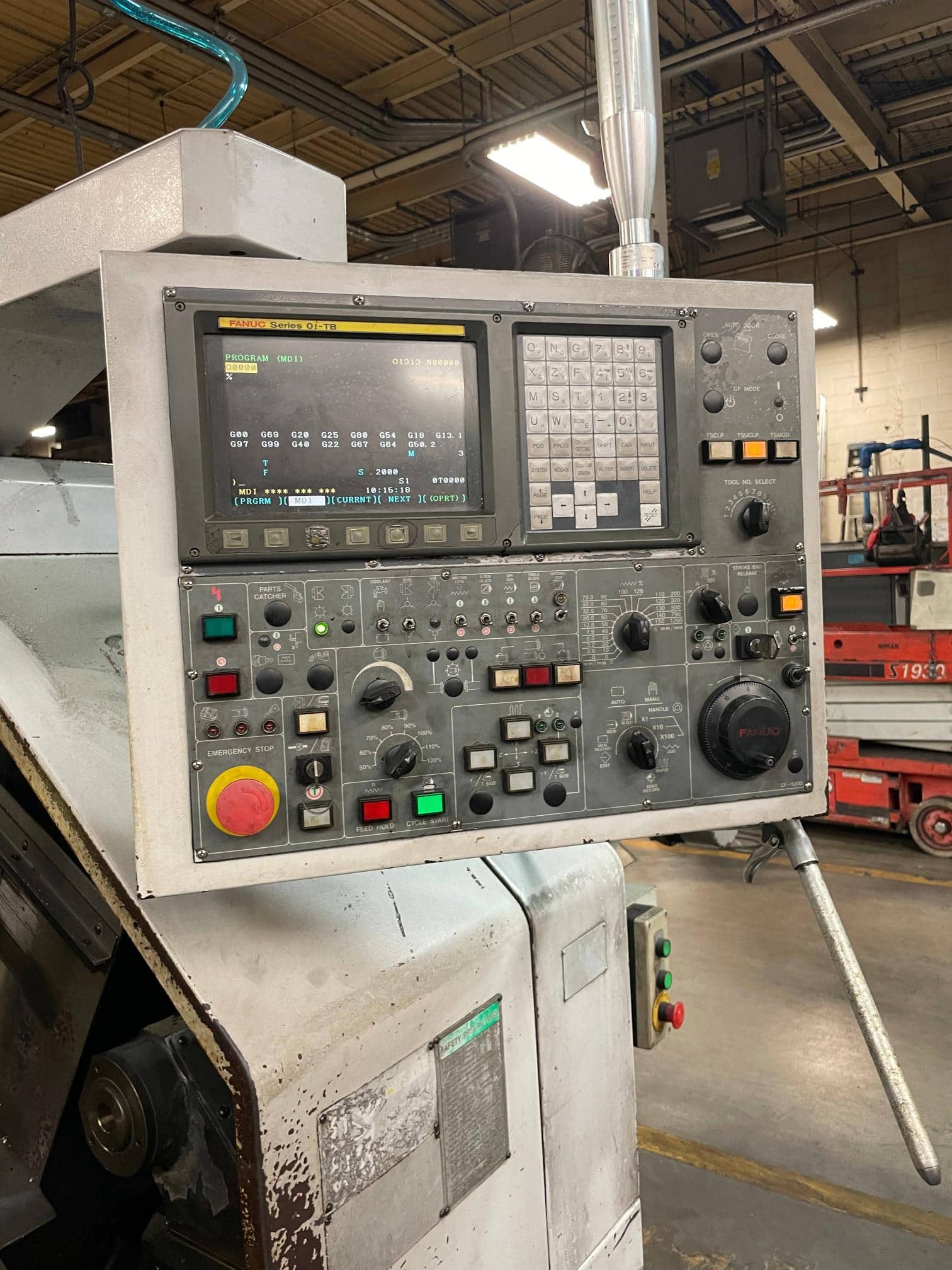

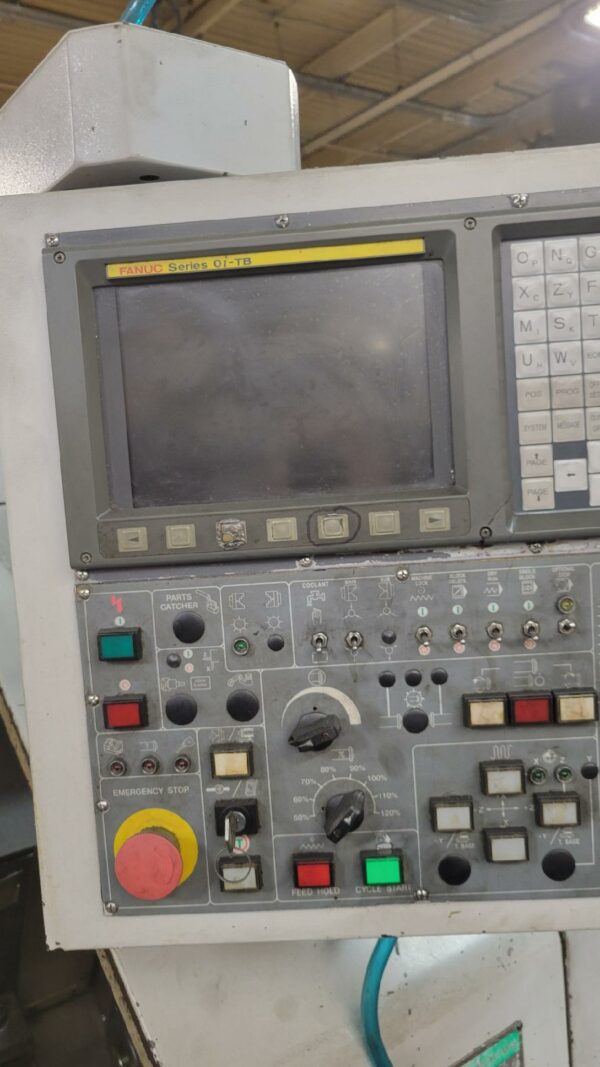

Fanuc Oi-TC Controller

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
