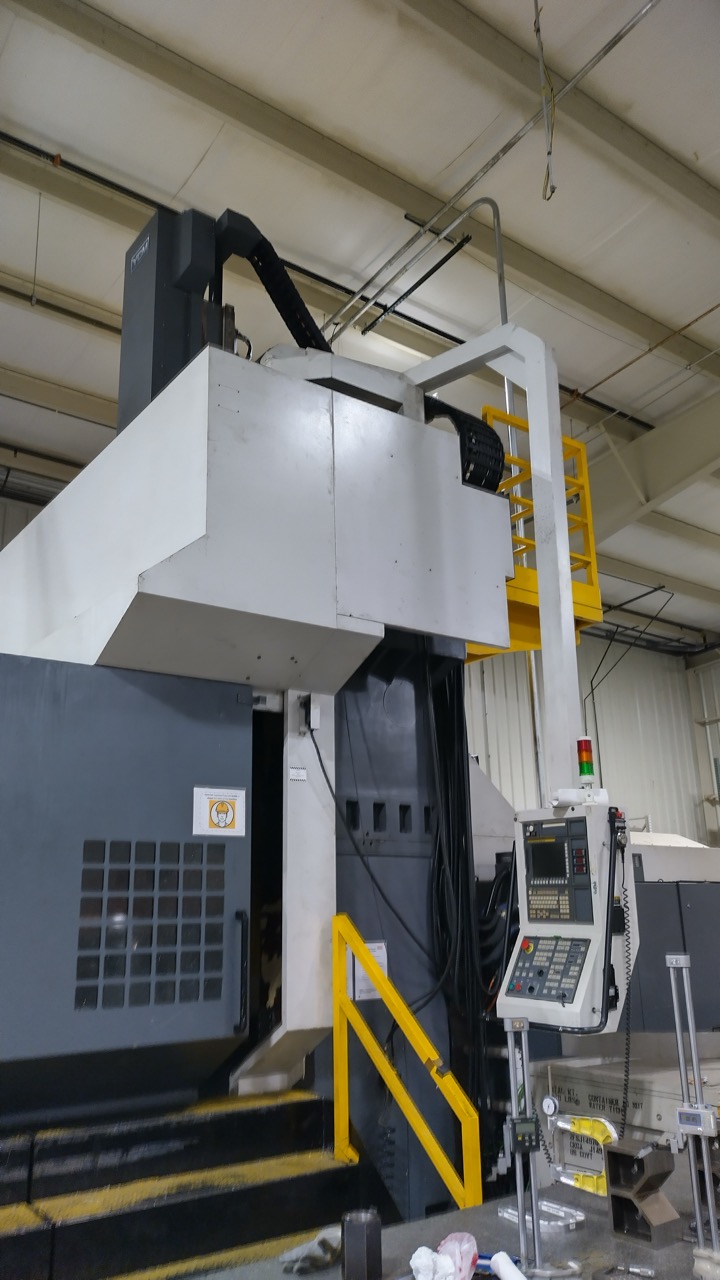

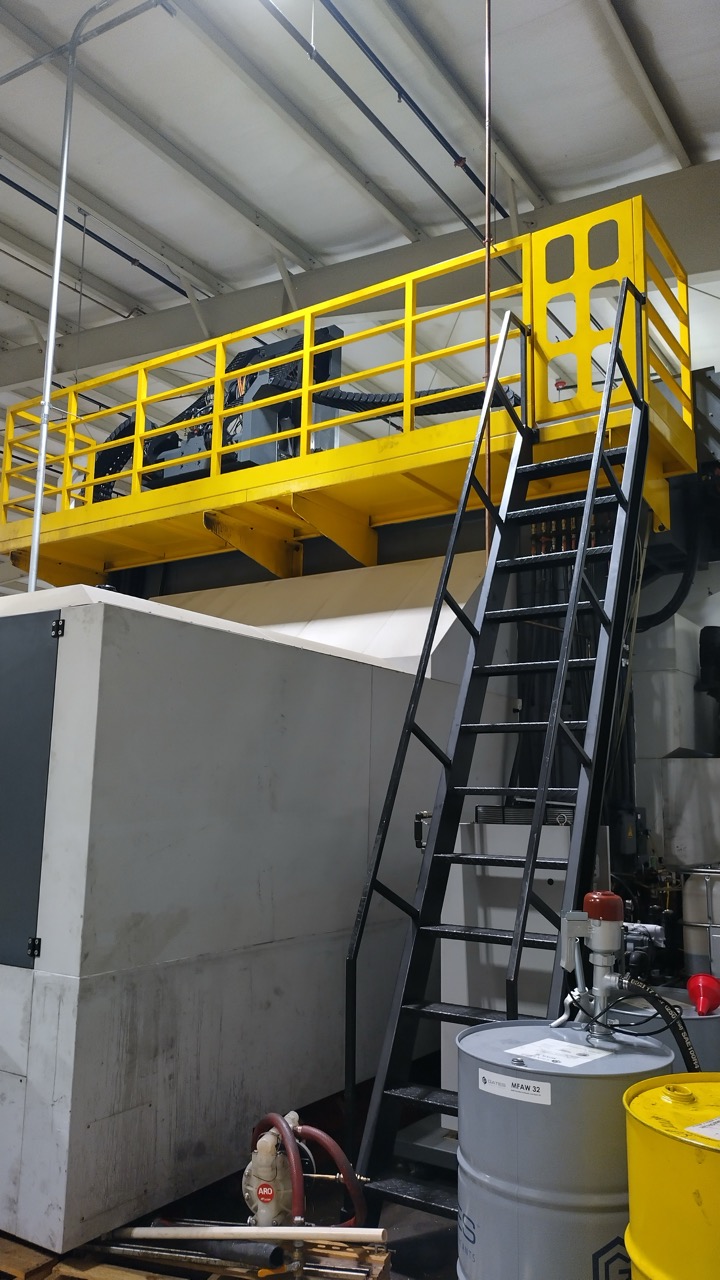

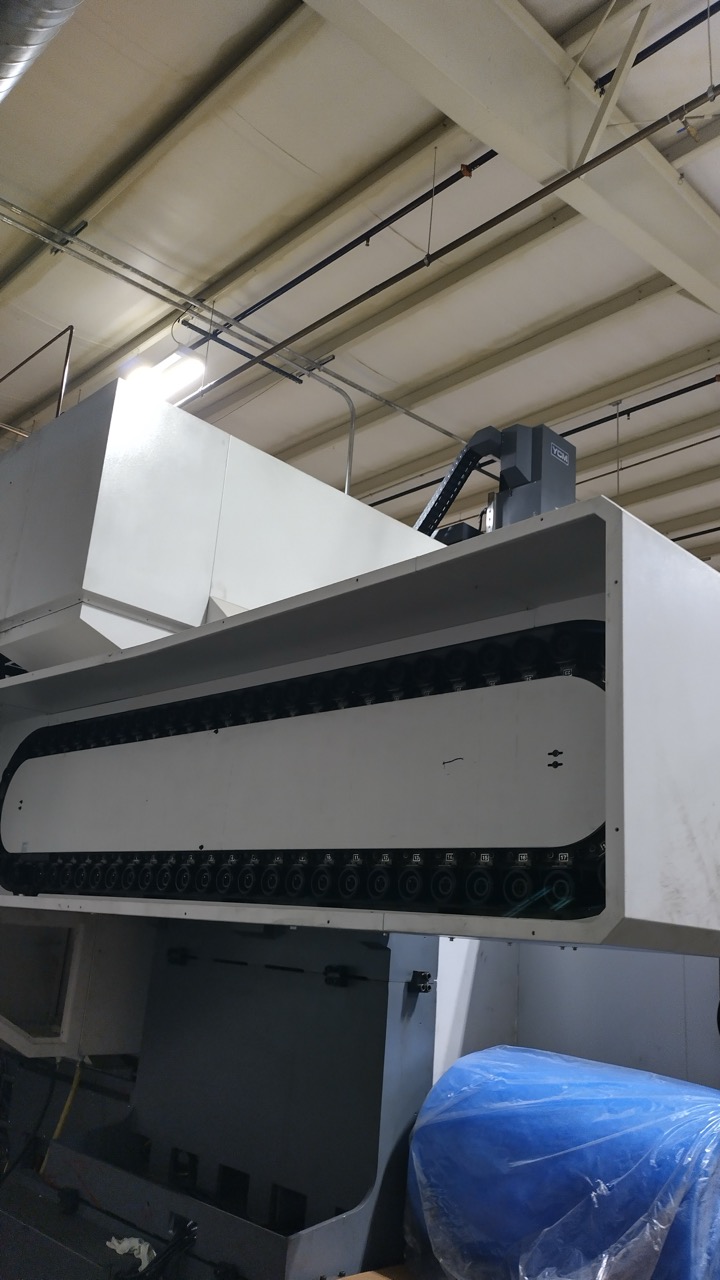

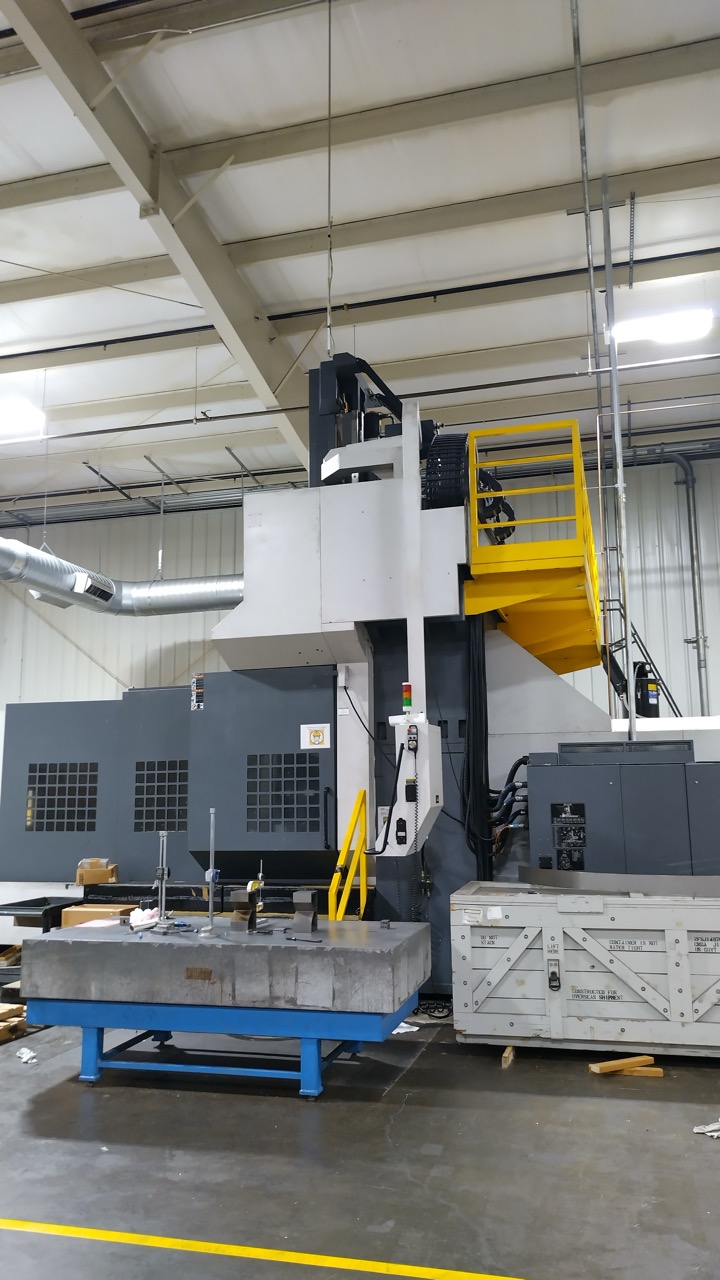

YCM DCV-4030B-5AX 5-axis Bridge Mill, 2014
$425,000.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Travels
X-Axis: 160″
Y-Axis: 137.8″
Z-Axis: 40″
C-Axis: ±360º continuous rotation
B-Axis Swivel Tilt: ±110º
Distance Between Columns: 122″
Distance Between Spindle Nose and Table: 0.79″-50.79″
Table Size: 161.42″ x 94.49″
No. T-slot x Size x Pitch: 11″ x 1.1″ x 7.87″
Max Load on Table: 44,092 lbs

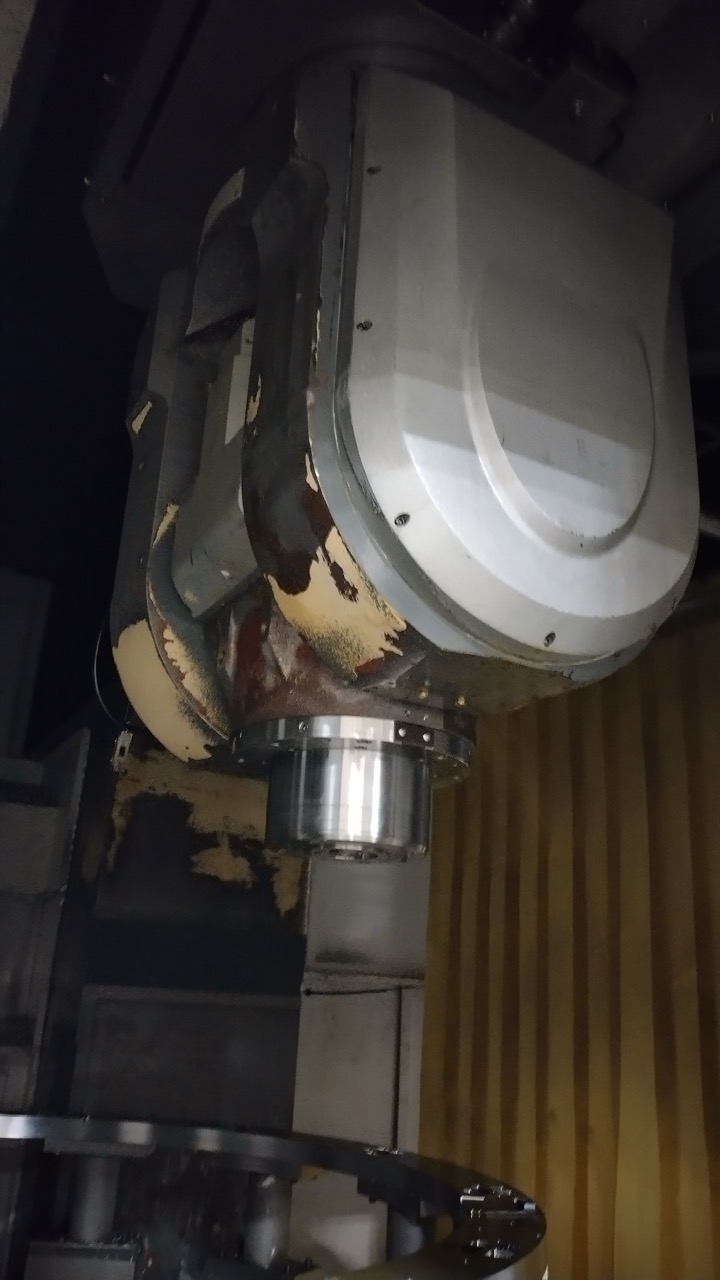

Taper: HSK A100
Speed: 10,000 rpm
Motor: 60 HP
Equipped With

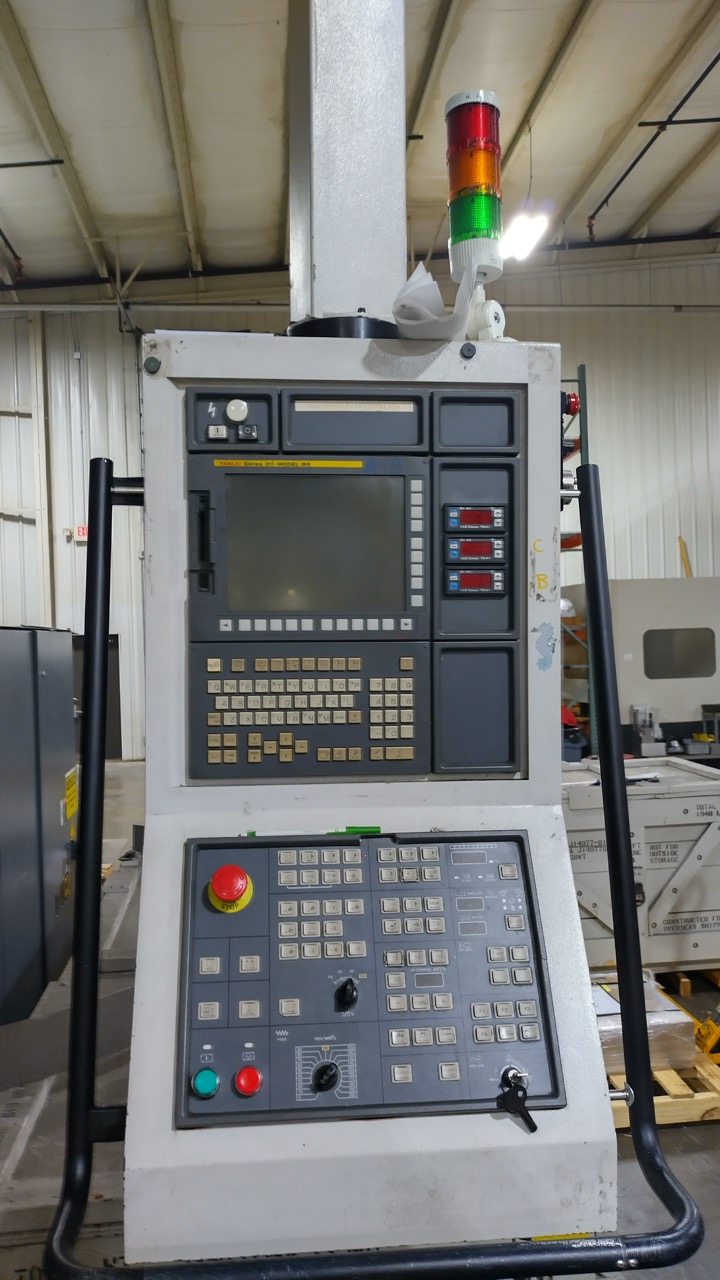

Fanuc 31i-CM-B5 Control
ATC with 40 Tool Capacity
Rigid Tapping
Manual Pulse Generator
Leveling Bolts and Plates
Dual Augers
Lift Chip Conveyor
Glass Scales

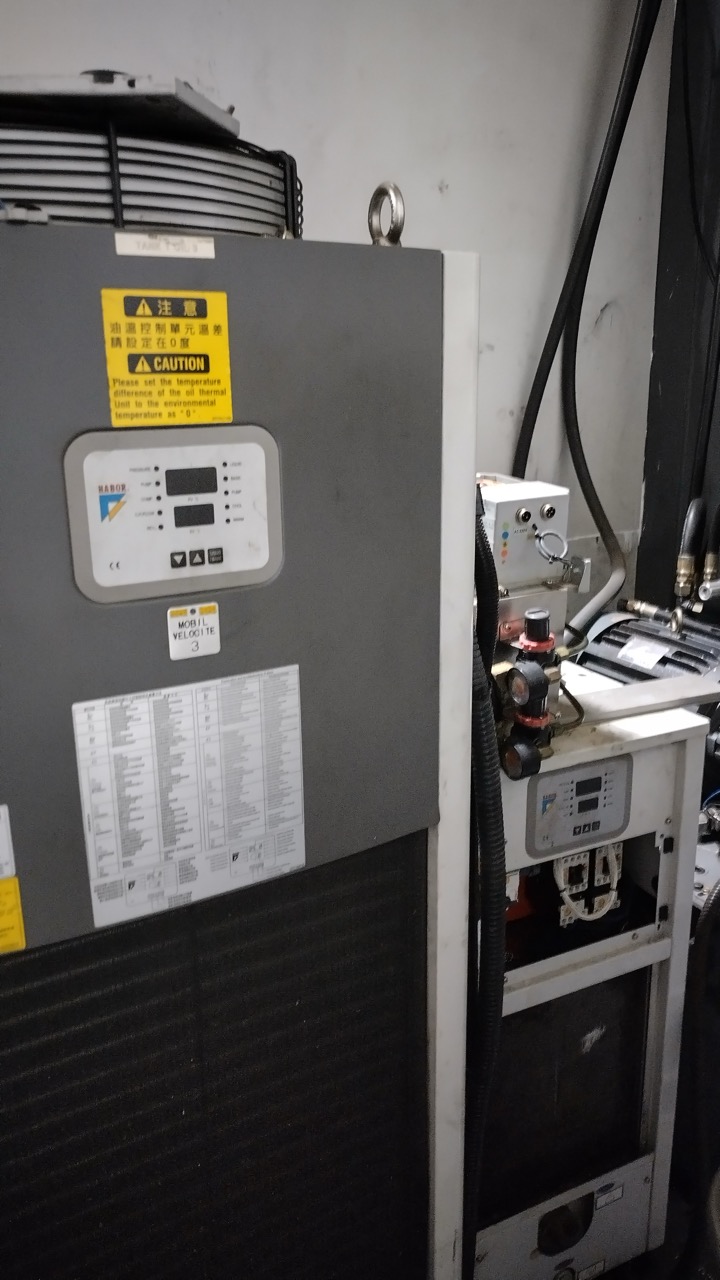

Spindle Chiller
