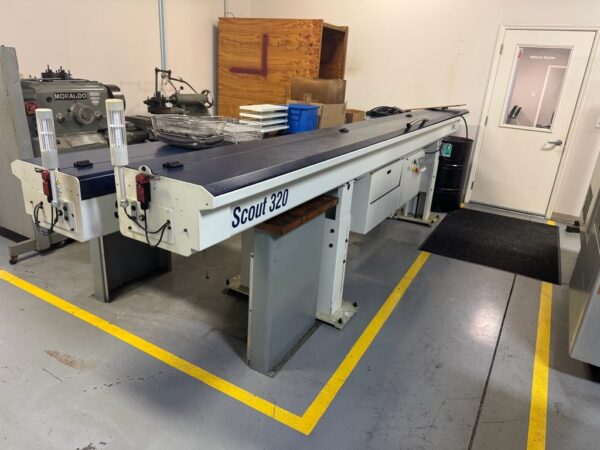

12′ Edge Technologies Scout 320 Bar Feeder, 2019
$12,900.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Bar Diameter Capacity – No Bar Preparation: .118โ To 1.000โ
Bar Diameter Capacity – With Bar Preparation: .118โ To 1.062โ
Maximum Bar Length: 12 Feet 5 Inches
Maximum Remnant Length: 16.500โ
Magazine Rack Capacity: 8โ
Bar Loading Cycle Time: 35 Seconds For 12-Foot Bar
Material Straightness Specification: .007โ Tir/Foot Of Material (V Blocks, 3 Points Equidistant)
Feed Force (Pusher Torque): Max 1 101 Lbf, Adjustable
Forward Feed Rate: 1400 Inches/Minute Max, Adjustable
Return Feed Rate: 2360 Inches/Minute Max, Adjustable
Power Consumption: 1.5 Kw โ (2 Kva)
Operating Voltage: 230V/60Hz 3-Phase
Control Voltage: 24V 2 Dc
Oil Capacity: 12 Gallons
Oil Viscosity: Iso 100 Cst
Compressed Air Supply: 90 Psi
Compressed Air Consumption: Approx. 8 Liters Per Loading Cycle
Machine Weight: 926 Lbs
