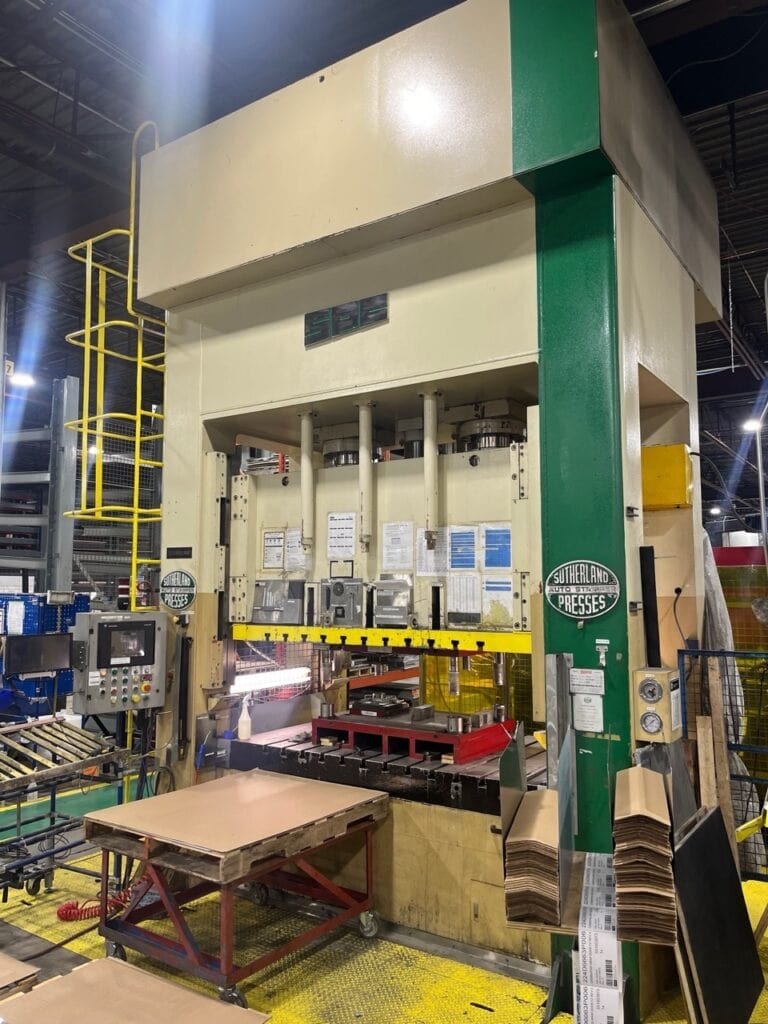

300 Ton Sutherland Hydraulic Straight Side Press, 2001 – Alan Bradley PanelView 1000 Control

Stroke Length: 2″ – 18″ (adjustable)

Main Motor Horsepower: 10 HP

Capacity: (two units 37.5 ton cylinders) 75 Tons

Rapid Return: 900 I.P.M.

Fast Press: (10-50% of full tonnage)70 I.P.M.

Rapid Approach” 900 I.P.M.

Approx. Weight: 78,300 lbs

Overall Height: 205″ x/ 17ft

Floor Space Requirements: 180″ x 80″

Side window: 38″ x 30″

Bolster Thickness: 7″

Bolster Area: 84″ x 48″

Slide Area: 84″ x 48″

Closed Height: 12″

Daylight: 30″

Stroke Length: 2″ – 18″ (adjustable)

Closed Height: 12″

Slide Area: 84″ x 48″

Bolster Area: 84″ x 48″

Bolster Thickness: 7″

Side window: 38″ x 30″
