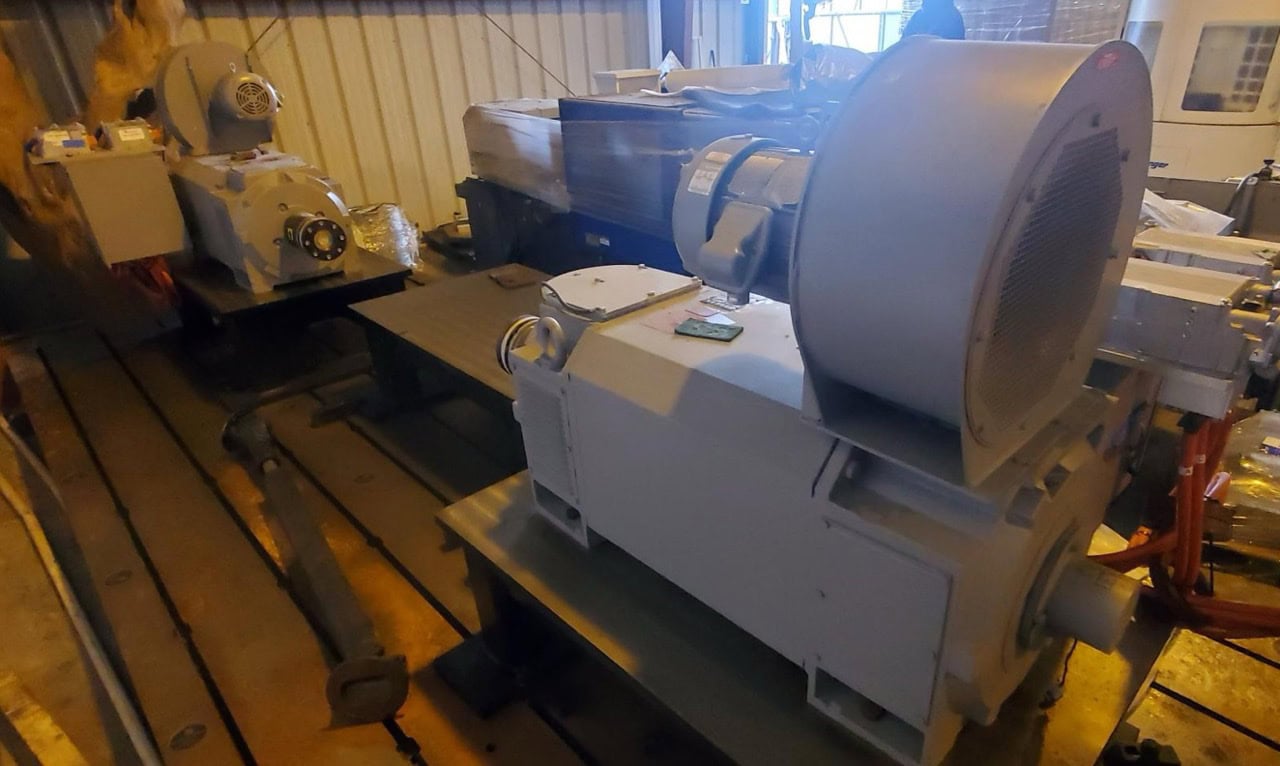

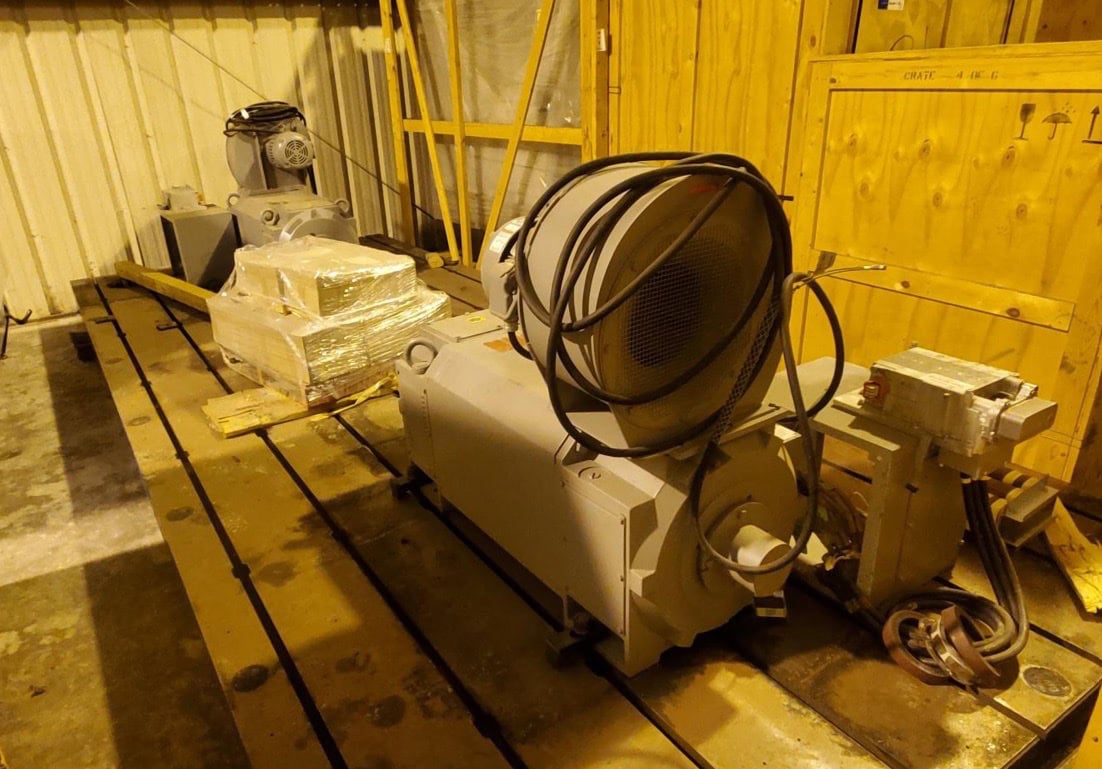

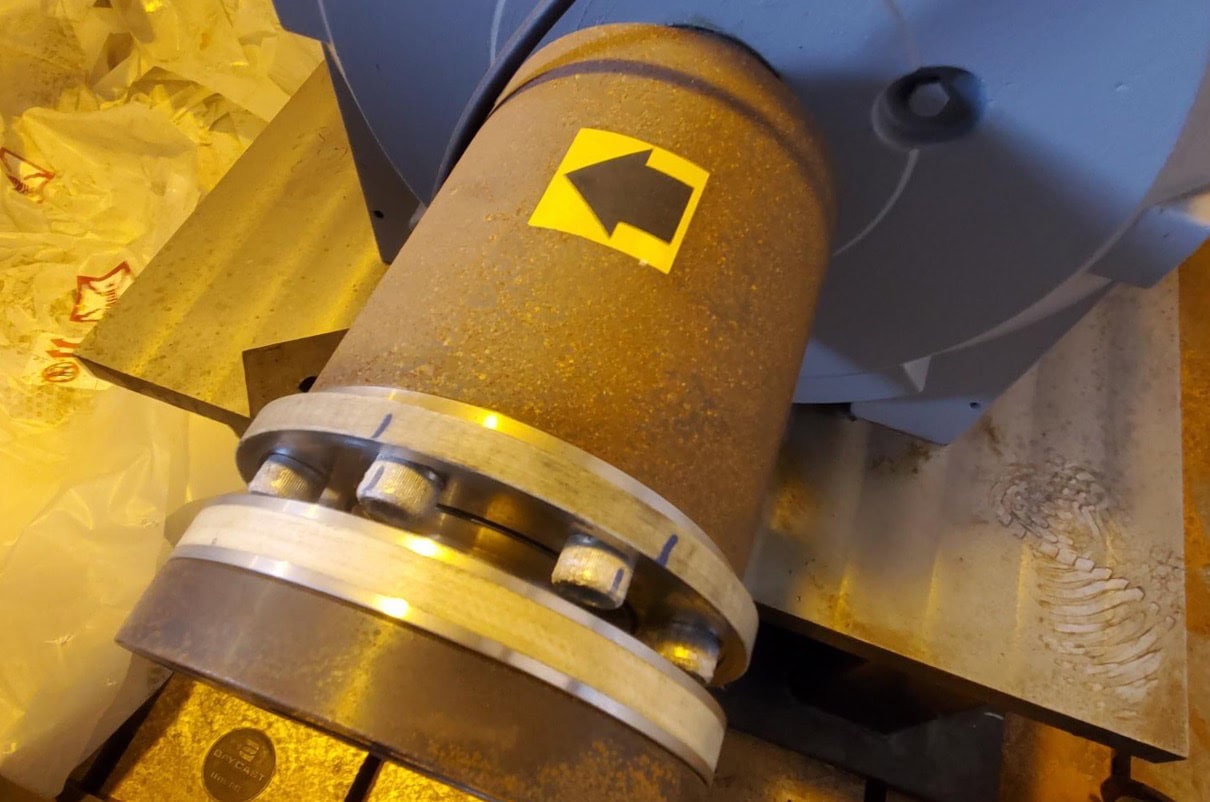

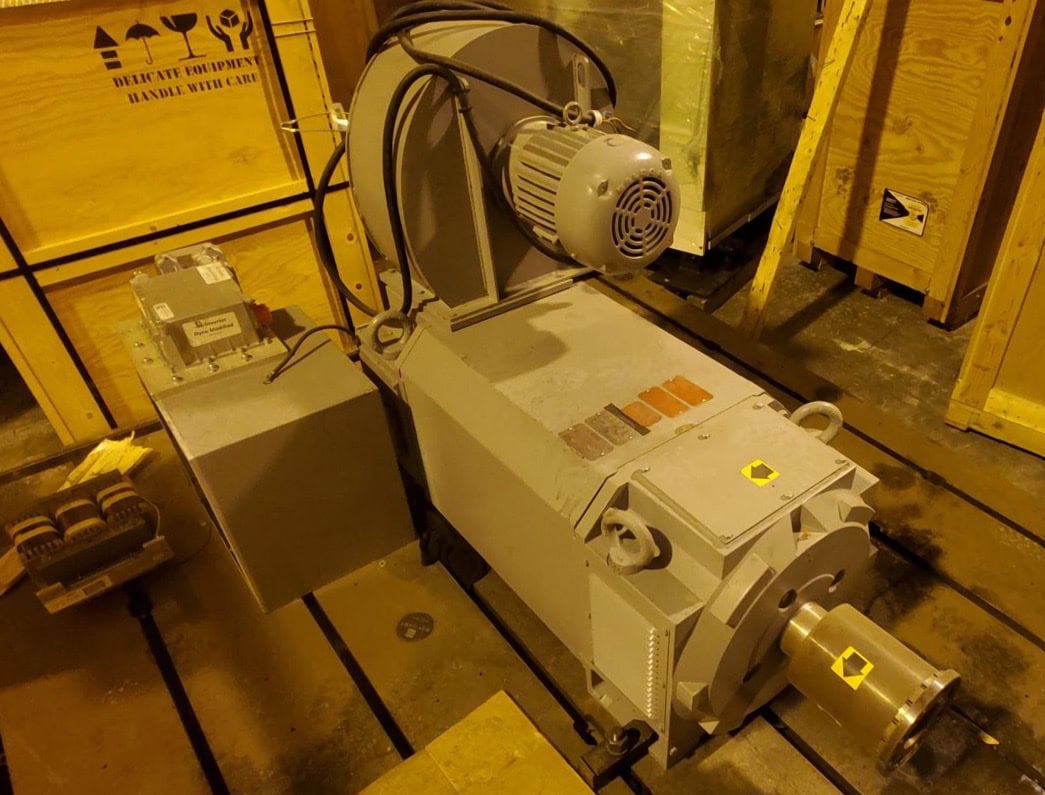

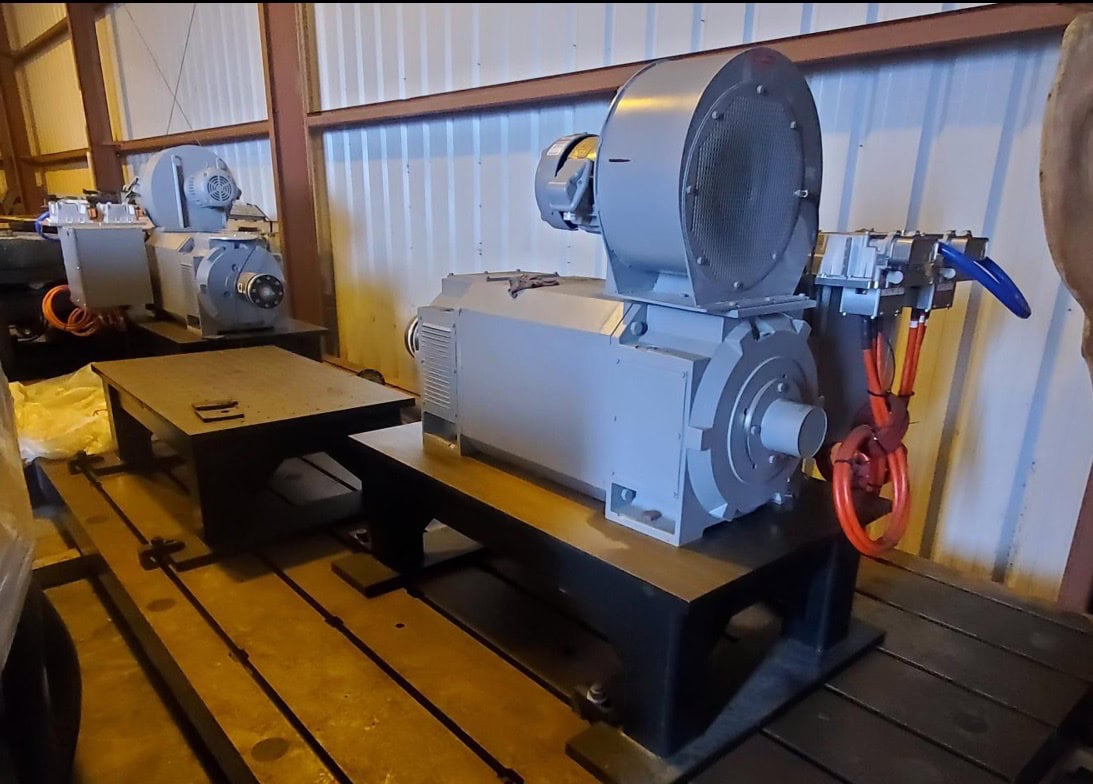

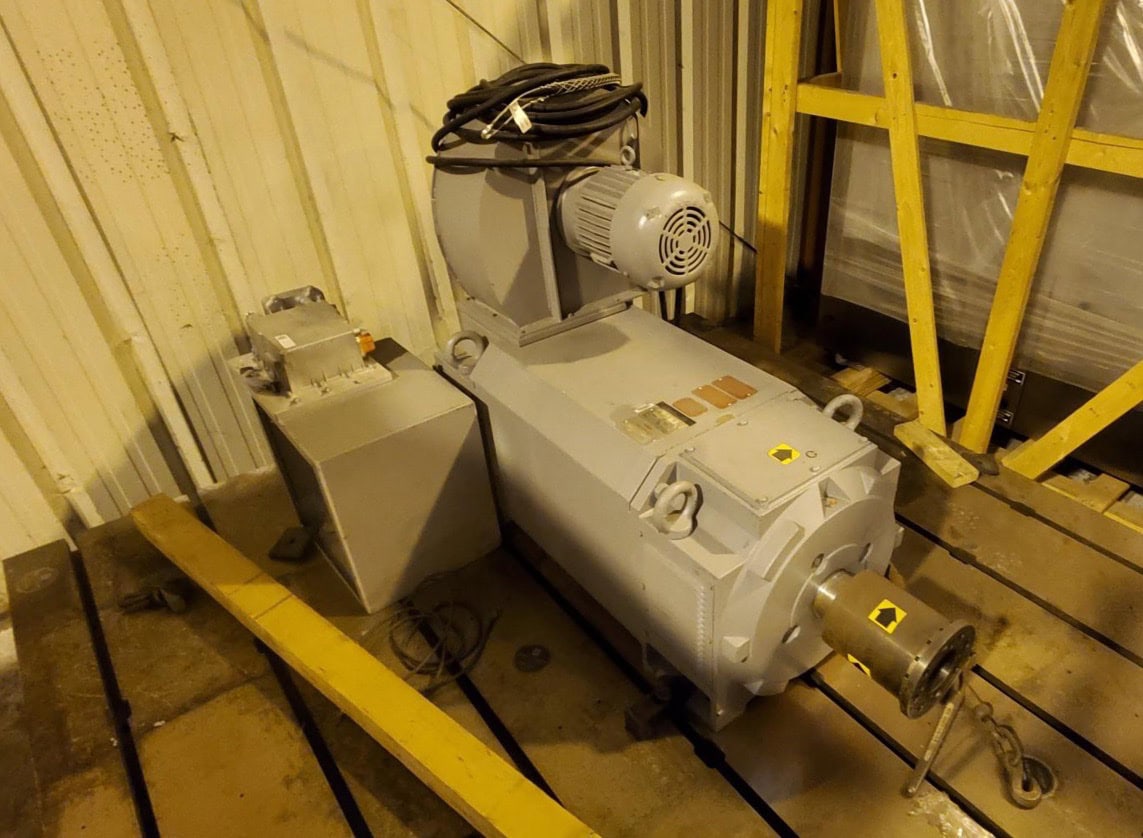

500 HP ABB R44-A000-0158 Inverter Duty Motor- QTY 4 Available!
500 HP ABB R44-A000-0158 Inverter Duty Motor- QTY 4 Available! - Image 2
500 HP ABB R44-A000-0158 Inverter Duty Motor- QTY 4 Available! - Image 3
500 HP ABB R44-A000-0158 Inverter Duty Motor- QTY 4 Available! - Image 4
500 HP ABB R44-A000-0158 Inverter Duty Motor- QTY 4 Available! - Image 5
500 HP ABB R44-A000-0158 Inverter Duty Motor- QTY 4 Available! - Image 6
DD
43543012203

500 HP ABB R44-A000-0158 Inverter Duty Motor- QTY 4 Available!

$49,900.00

500 HP ABB R44-A000-0158 Inverter Duty Motor- QTY 4 Available!
500 HP ABB R44-A000-0158 Inverter Duty Motor- QTY 4 Available! - Image 2
500 HP ABB R44-A000-0158 Inverter Duty Motor- QTY 4 Available! - Image 3
500 HP ABB R44-A000-0158 Inverter Duty Motor- QTY 4 Available! - Image 4
500 HP ABB R44-A000-0158 Inverter Duty Motor- QTY 4 Available! - Image 5
500 HP ABB R44-A000-0158 Inverter Duty Motor- QTY 4 Available! - Image 6

Request a Quote to Instantly See Pricing

Call Now

Machine Type: Process Equipment
Make: ABB
Model: R44-A000-0158
Year: 1900
Machine Location: Upon Request
Stock #: 012203

Priced Each

Model Number R44-A000-0158
Frame Size RL4440Z
Horsepower Range 400 – 500 HP
Operating Point 1 400 HP @ 900 RPM, 772 A, 250V, 60 Hz
Operating Point 2 400 HP @ 2160 RPM, 370 A, 600V, 144 Hz
Operating Point 3 500 HP @ 2600 RPM, 249 A, 600V, 173.3 Hz
Maximum Safe Speed 2750 RPM
Voltage Range 250V – 600V
Frequency Range 60 – 173.3 Hz
Service Factor 1.00
Insulation Class H
Enclosure Type DPG-FV (Force Ventilation)
Operating Temperature -25ยฐC to +40ยฐC

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
