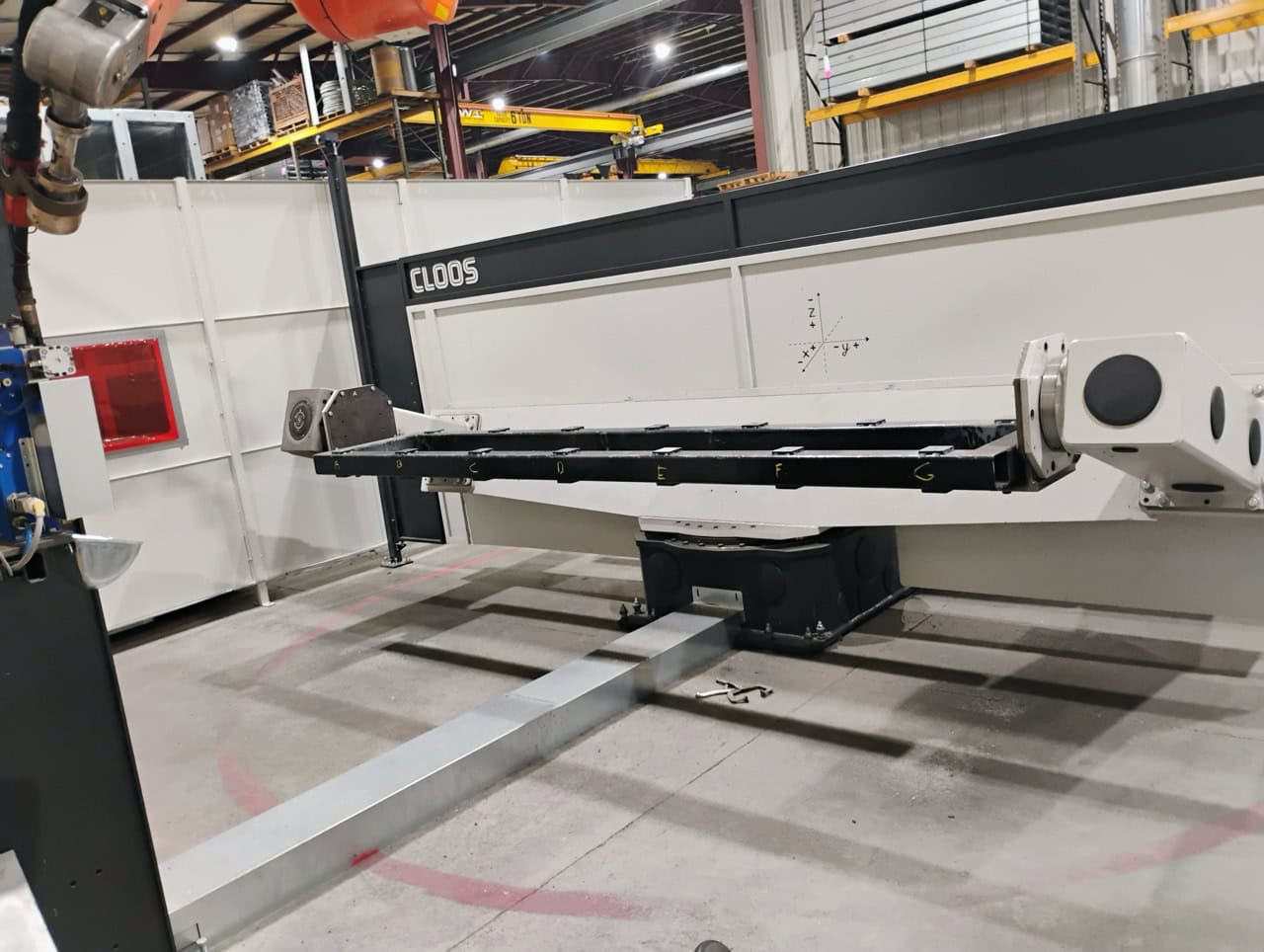

Cloos CS-30 Robotic Welding Cell, 2023 - 450a Qineo pulse Power Source, 7 Axis QIROX® QRC-410e Robot

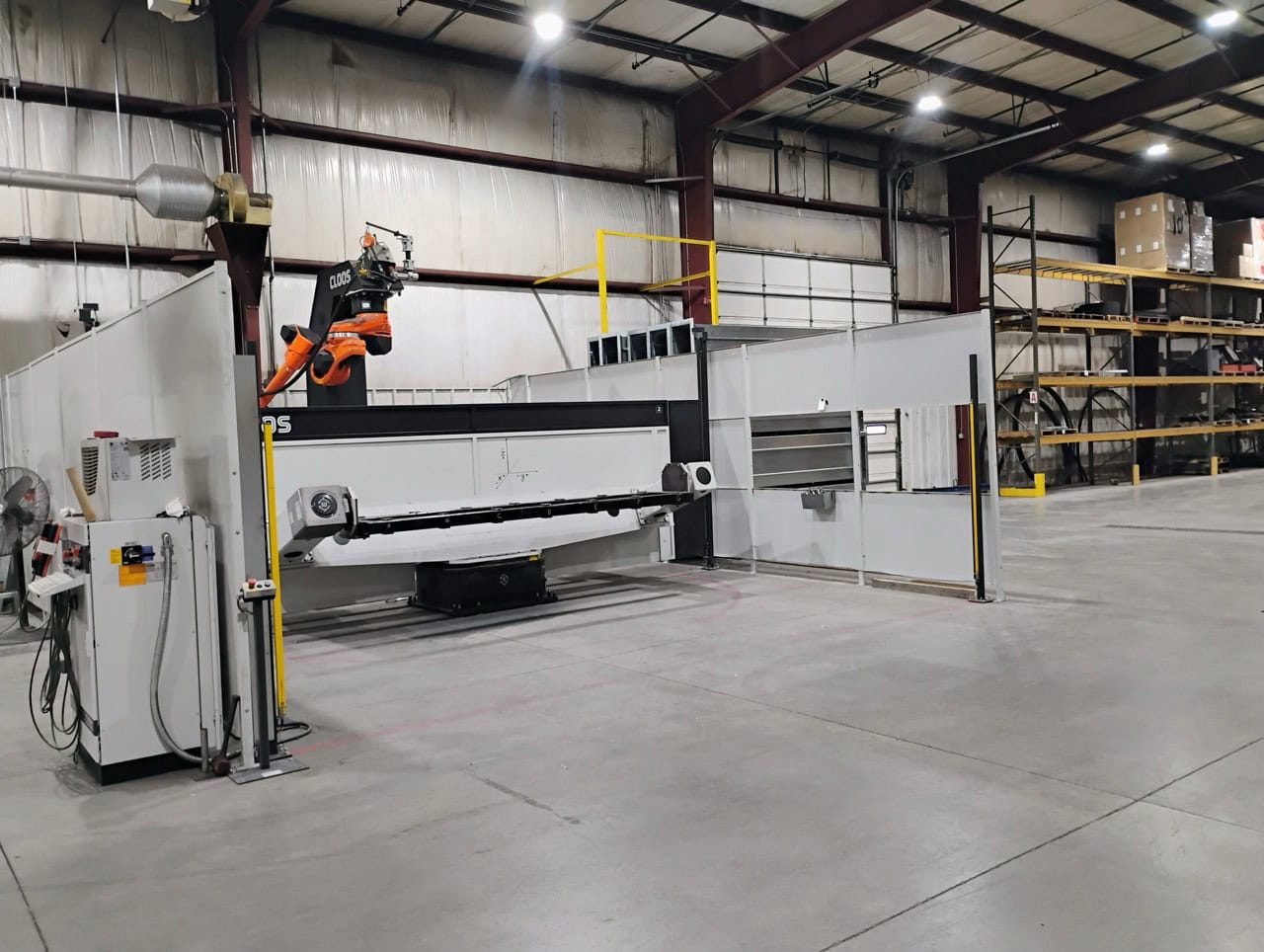

Cloos CS-30 Robotic Welding Cell, 2023 - 450a Qineo pulse Power Source, 7 Axis QIROX® QRC-410e Robot - Image 2

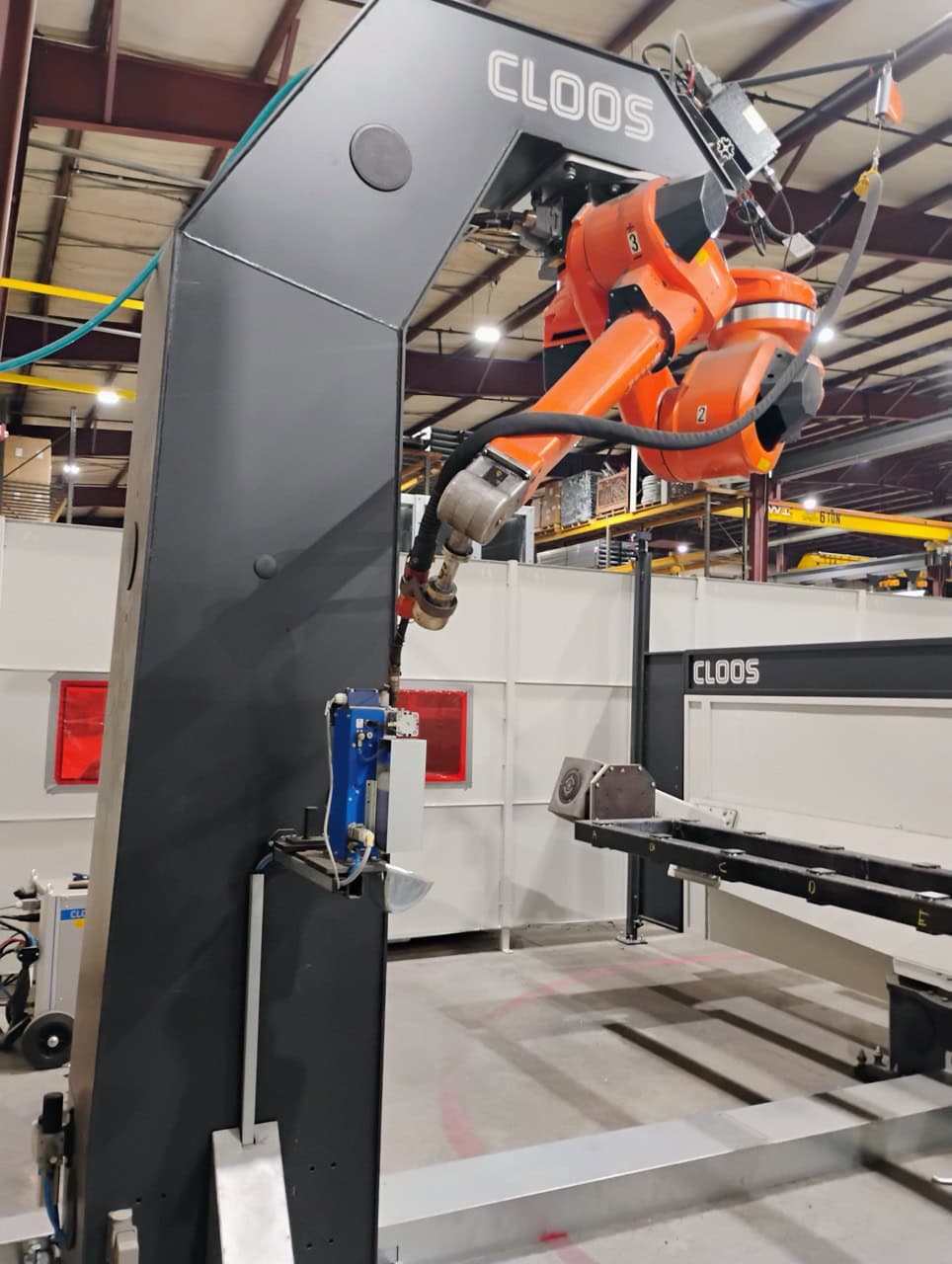

Cloos CS-30 Robotic Welding Cell, 2023 - 450a Qineo pulse Power Source, 7 Axis QIROX® QRC-410e Robot - Image 3
DD
34457742187

Cloos CS-30 Robotic Welding Cell, 2023 – 450a Qineo pulse Power Source, 7 Axis QIROX® QRC-410e Robot

$184,900.00

Cloos CS-30 Robotic Welding Cell, 2023 - 450a Qineo pulse Power Source, 7 Axis QIROX® QRC-410e Robot
Cloos CS-30 Robotic Welding Cell, 2023 - 450a Qineo pulse Power Source, 7 Axis QIROX® QRC-410e Robot - Image 2
Cloos CS-30 Robotic Welding Cell, 2023 - 450a Qineo pulse Power Source, 7 Axis QIROX® QRC-410e Robot - Image 3

Request a Quote to Instantly See Pricing

Call Now

Machine Type: Robotic Welding Cells
Make: Cloos
Model: CS-30
Year: 2023
Machine Location: Upon Request
Stock #: 742187

Robot Model: Cloos QIROX® QRC-410e
Axis: 7
Welding Current: Up to 500 A (MIG/MAG)
Wire Feed Speed: Adjustable, up to 25 m/min

Positioner:
max. load per station in N: 10kN
max. load per station in lbs: 2248 lbs
max. nominal torque in Nm: 1000Nm
max. tilting moment in Nm: 2450Nm
mass moment of inertia: 150kgm2
max. turning speed: 120°/sec.
face plate diameter 400x400mm
clamping length in mm: 3500mm (137”)
free turning radius in mm: 750mm (59”)

Robot Specs:
Pay load 10kg
Swivel Speed Axis 1 184
Swivel Speed Axis 2 184
Swivel Speed Axis 3 177
Swivel Speed Axis 4 497
Swivel Speed Axis 5 542
Swivel Speed Axis 6 528
Swivel Speed Axis 7 90
Operating Range: 6100 mm

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
