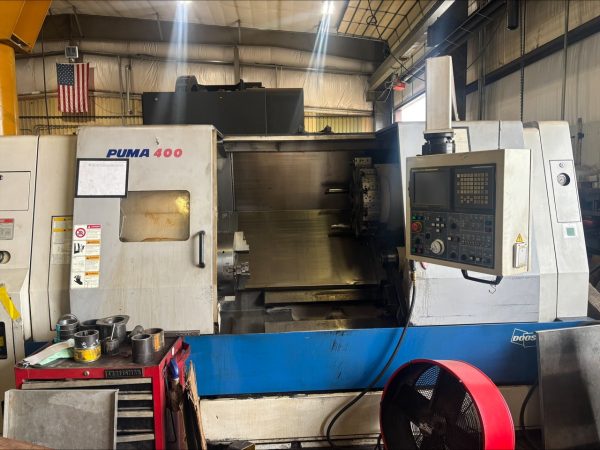

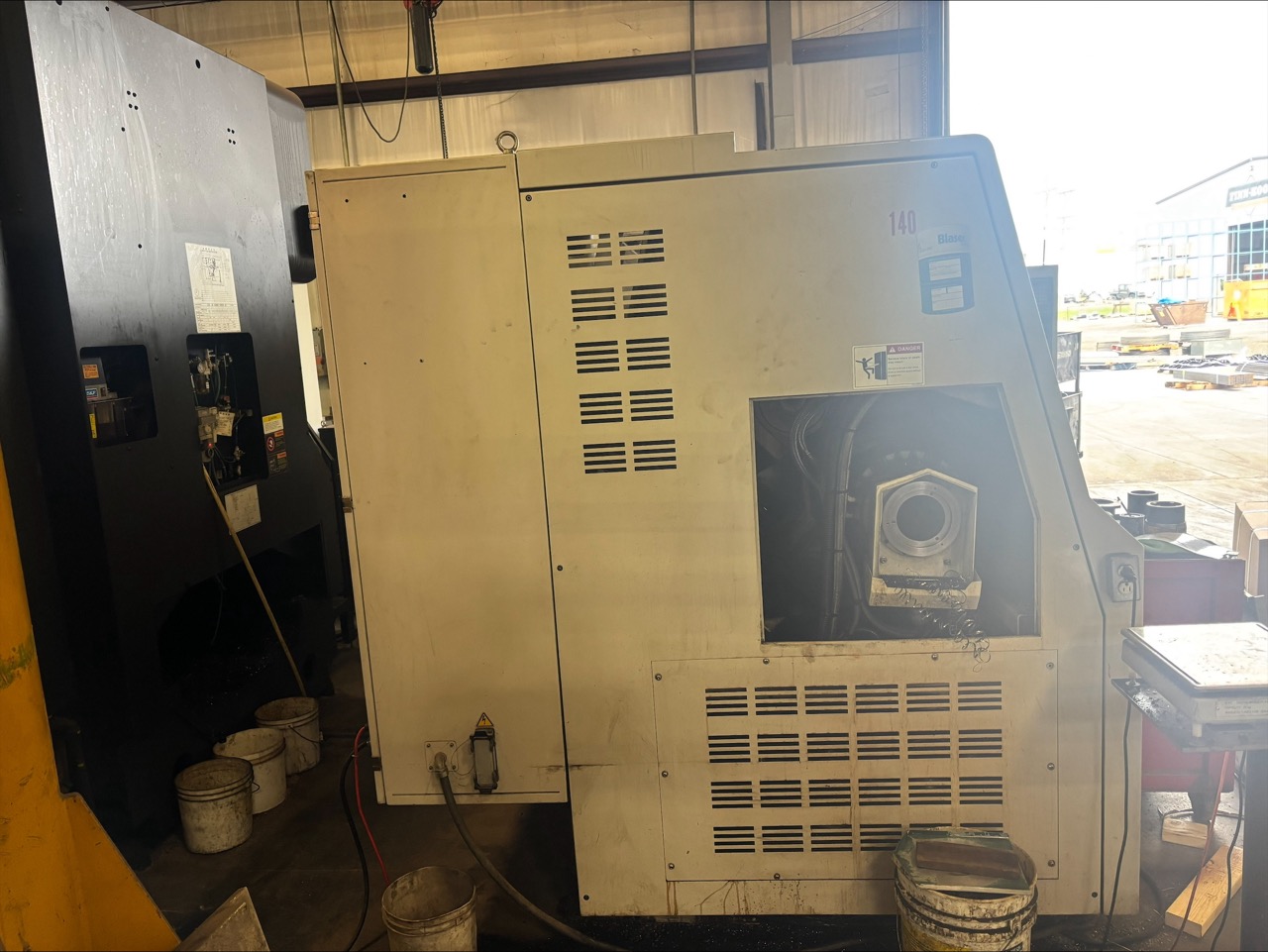

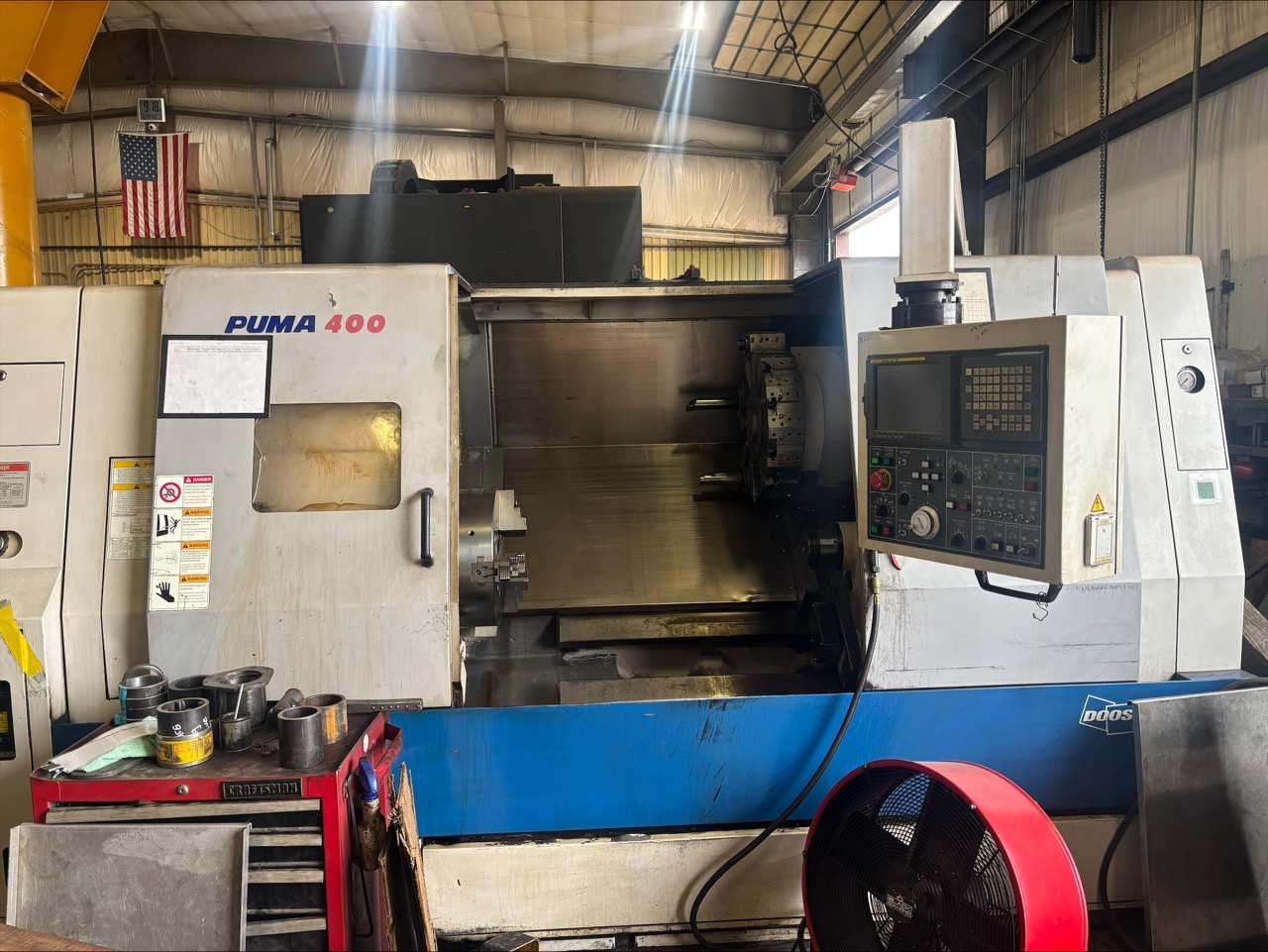

Doosan Puma 400B CNC Lathe, 2006 – Programmable Tailstock

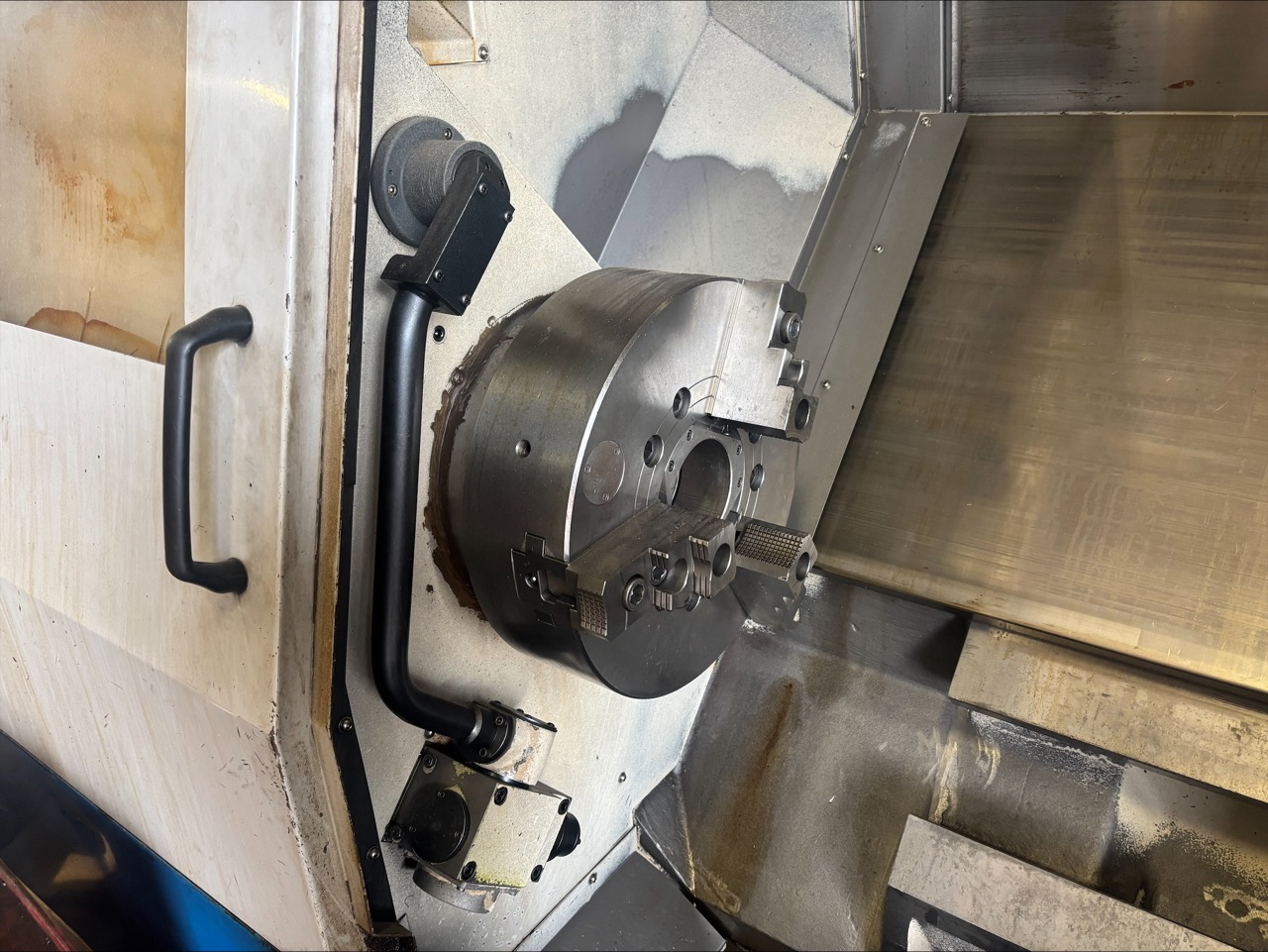

Chuck Size: 15″
Swing Over bed: 30.3″
Swing Over Cross Slide: 23.2″
Max Turning Diameter: 21.7″
Max Turning Length: 41.1″
Bar Capacity: 4.6″
Spindle Bore: 5.2″
Spindle Nose: A2-11

Max Spindle Speed: 2,000 RPM
Spindle Motor: 35 HP
X-Axis Travels: 14.3″
Z-Axis Travels: 43.5″
Turret Capacity: 10-Stations

Approximate Machine Weight: 18,078lbs
Electrical: 220V, 3-Phase

Equipped With

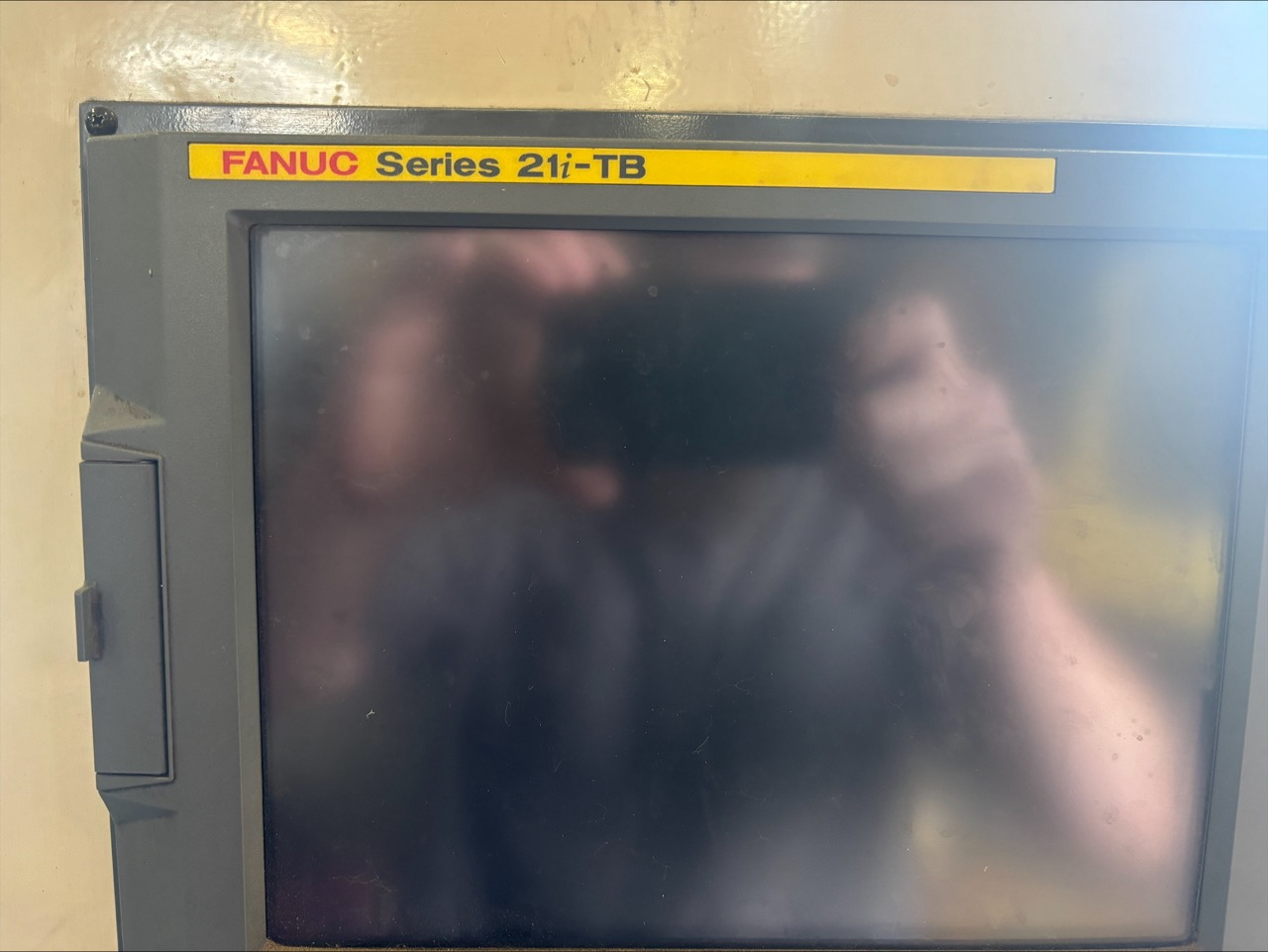

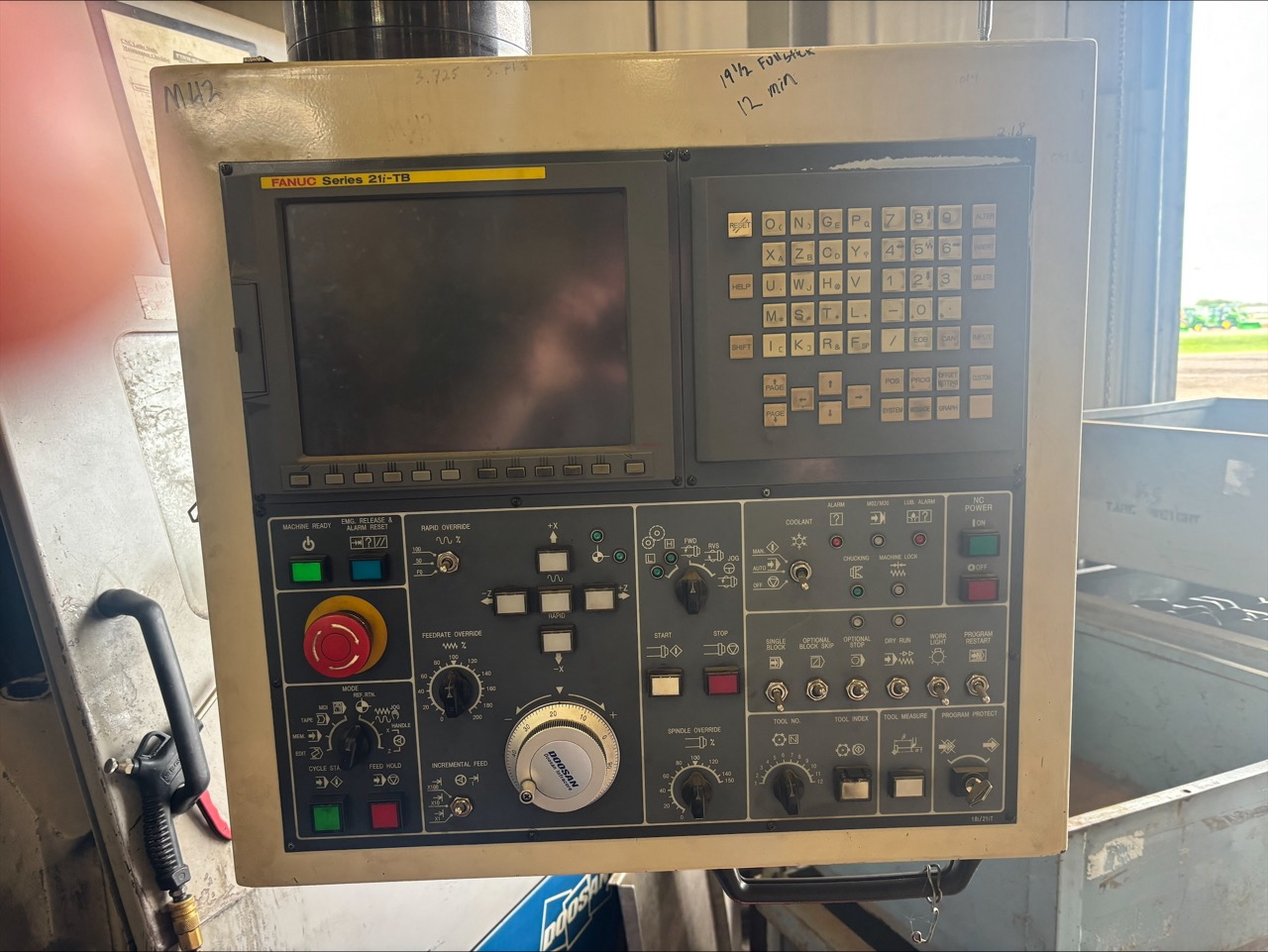

Fanuc Series 21iB-TB CNC Controller
Automatic Tool Presetter
Programmable Hydraulic Tailstock
