Lincoln Electric System 5 Robotic Welding Cell, 2013 – Fanuc ARCMate 100iC, Lincoln R350 350 Amp Power Supply
$75,900.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:

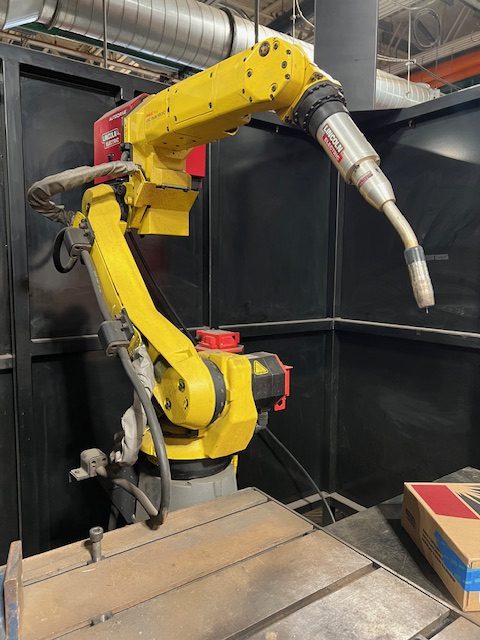

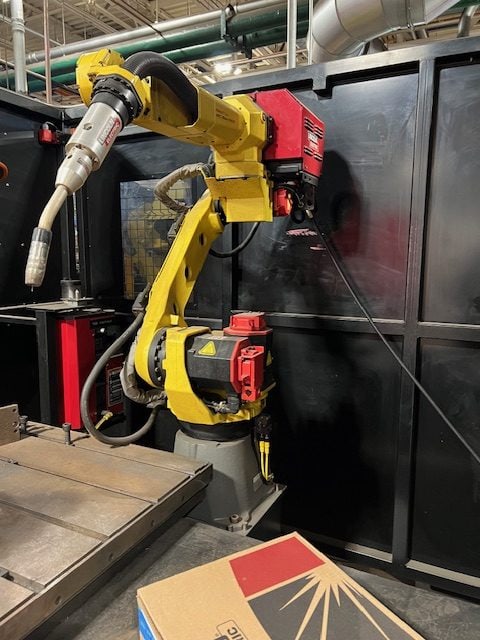

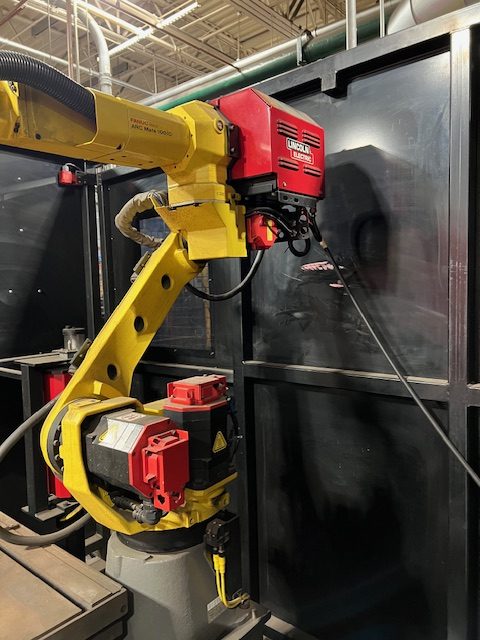

Robot Arm: FANUC AM100iC
Axes: 6
Payload: 22 Lbs (10 Kg)
Reach: 56โณ
Controller: FANUC R-30iB
Memory: 64 MB DRAM, 64 MB FROM, 3 MB SRAM
Welding Power Supply: Lincoln R350
Wire Feeder: 4R100 Wire Drive (4 Powered Drive Rolls, Up To .045โณ Solid Or Cored Wire)

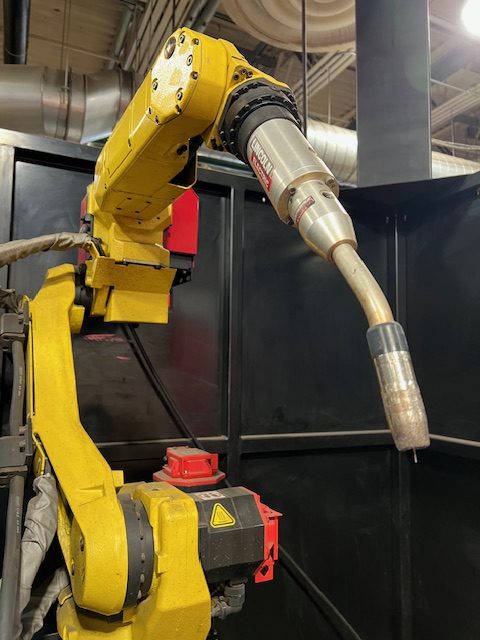

Torch Package: AD1121-257 With LEA500AC, 3.5โฒ 22D, .035โณโ.045โณ OiB
Drive Roll Kit: KP1505-035S (.035โณ)
Outputs: Model A 16 Outputs Relay (S23214-13)
Inputs: Model A 16 Inputs Positive 24VDC (S23214-18)
ArcLink XT Cables: AD1312-23 Kit (25 Ft)
Worktable Size: 70โณ ร 24โณ
Worktable Capacity: 2,500 Lbs
System Footprint: 96โณ ร 70โณ
Equipped With:
FANUC ArcTool Software
AD1253-254 PMC Robot Software (Programmable Machine Controller, Ladder Logic)
AD1253-77 CheckPoint Cloud Monitoring Software
AD1253-37-FI Torch Guard Software (Collision Guard, TorchMate 3 TCP Adjustment)
AD1253-90 TouchSense & TAST Bundle (TouchSense, Thru-Arc Seam Tracking

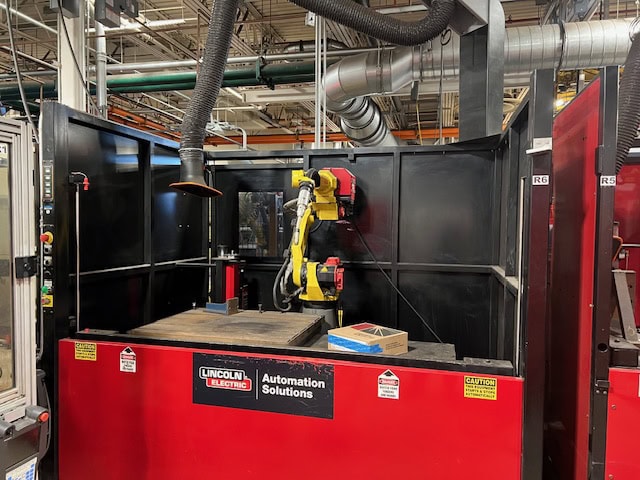

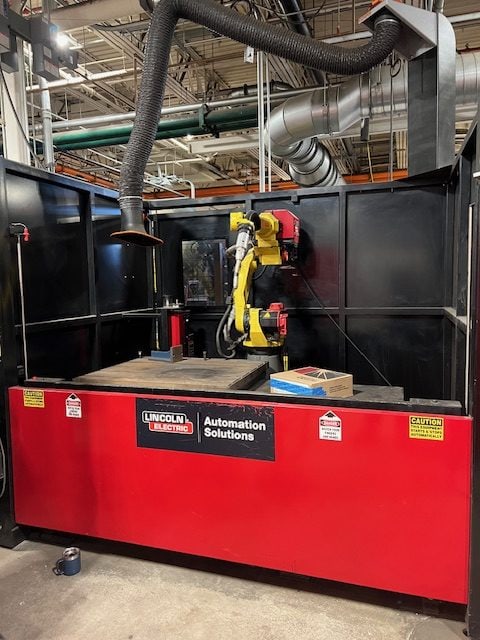

AD1564-1 System 5 Workcell With Palletized Base And Surround Enclosure
Pneumatic Pop-Up Curtain For Arc-Flash Protection
Operator Palm Station With Cycle Start, Fast Reset, And E-Stop
AD2391-1 Power Reamer & Wire Clipper With Anti-Spatter Fluid
Educational 2D iRVision Package With FANUC XC-56 CCD Scan Camera
Banner LED Red Spotlight
