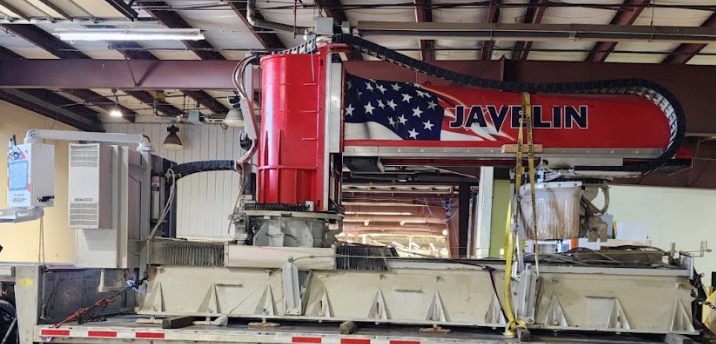

Park Industries JAVELIN Dual Table 5-Axis CNC Sawjet Stone Cutting Machine, 2024

2024 Park Industries JAVELIN dual-table 5-axis CNC Sawjet featuring a 27 HP saw spindle, integrated high-pressure abrasive waterjet, automated miter cutting, and a large 144″ x 88″ work envelope for high-production granite, quartz, quartzite, porcelain, and engineered-stone fabrication.

Manufacturer: Park Industries
Model: JAVELIN
Year: 2024
Machine Type: CNC Sawjet / Stone Cutting Machine
Configuration: Dual Table
Axes: 5-Axis Waterjet Cutting
Applications: Granite, quartz, quartzite, marble, porcelain, engineered stone, and countertop fabrication

Cutting System
CNC-controlled circular saw and abrasive waterjet
5-axis waterjet cutting capability
Saw arbor motor: 27 HP
Blade diameter capacity: 14″–16″
Maximum cutting/work area: 144″ x 88″
Saw blade miter range: approximately 0–47°
Waterjet miter range: approximately 0–58°
Spindle speed: up to approximately 4,500 RPM
Variable-frequency spindle drive
Automatic CNC cutting and profiling
Integrated high-pressure abrasive waterjet
Automatic blade-to-waterjet calibration
Precision X/Y positioning system
Precision Z-axis movement
Machine Configuration

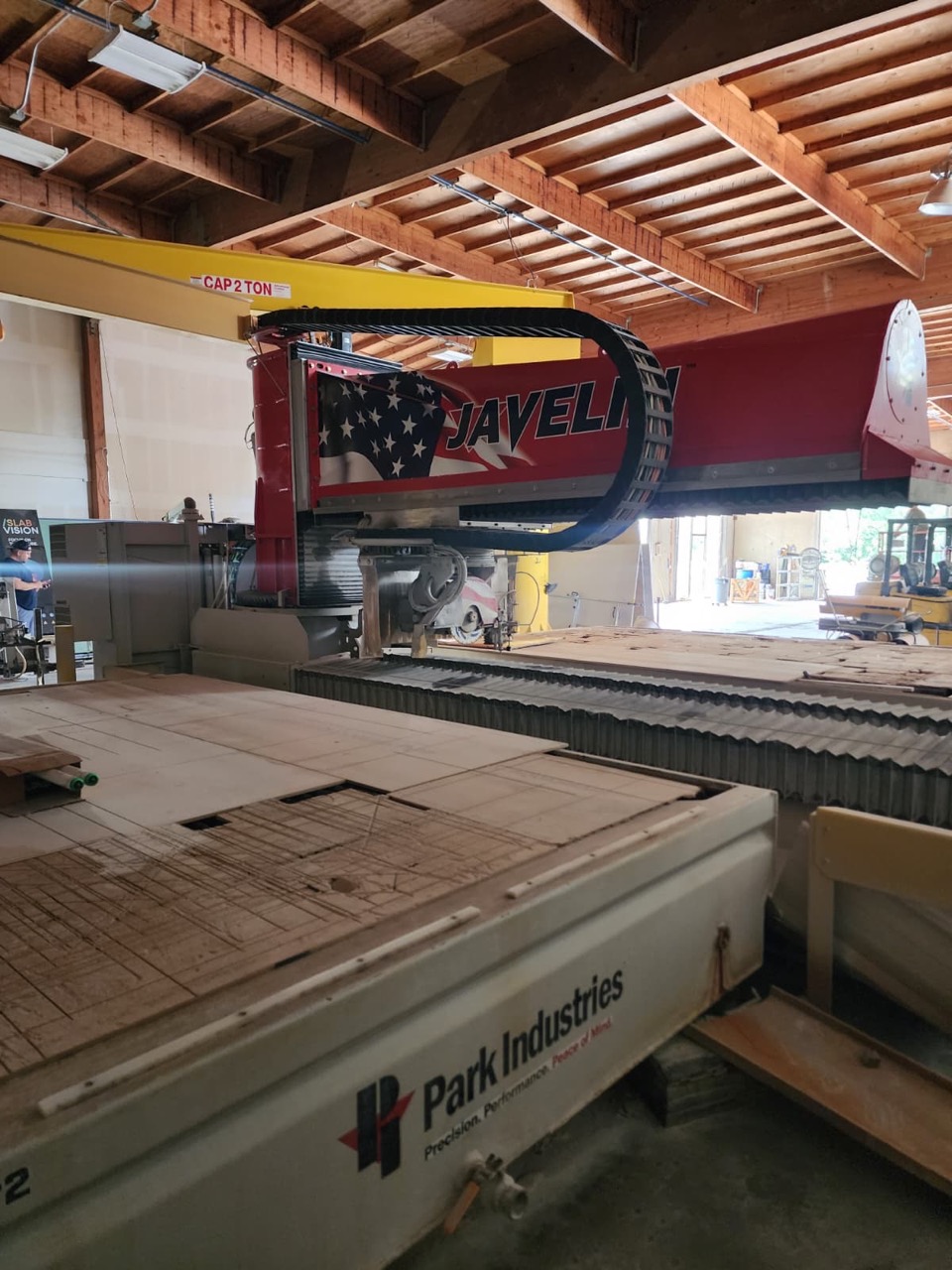

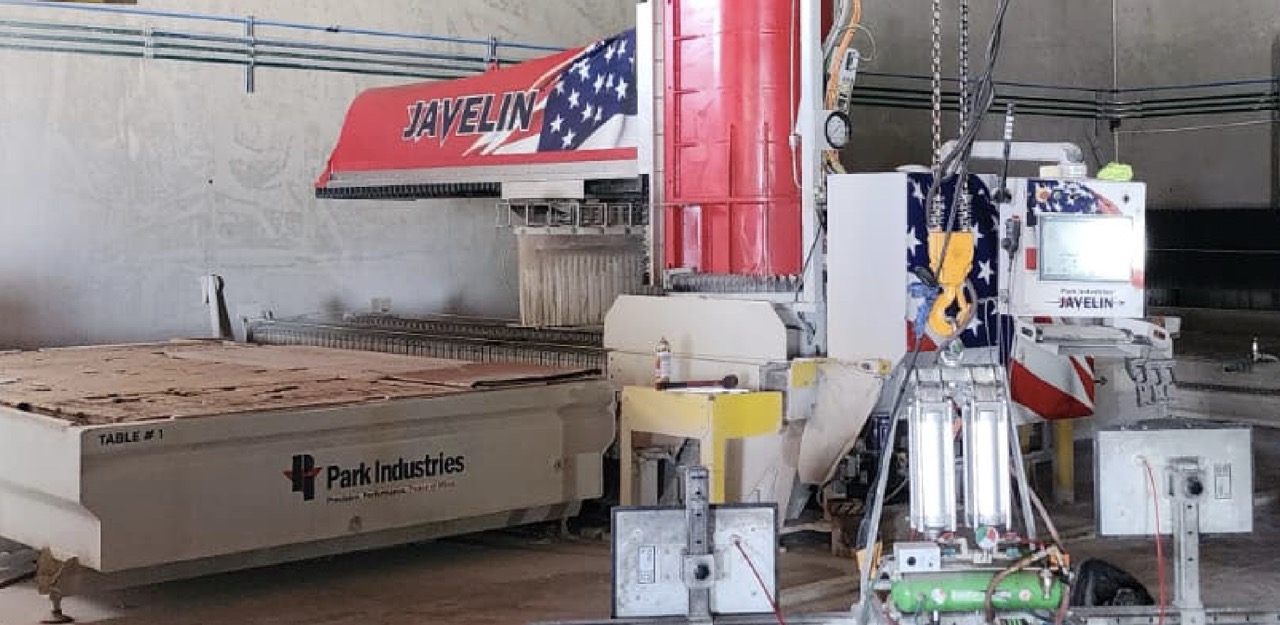

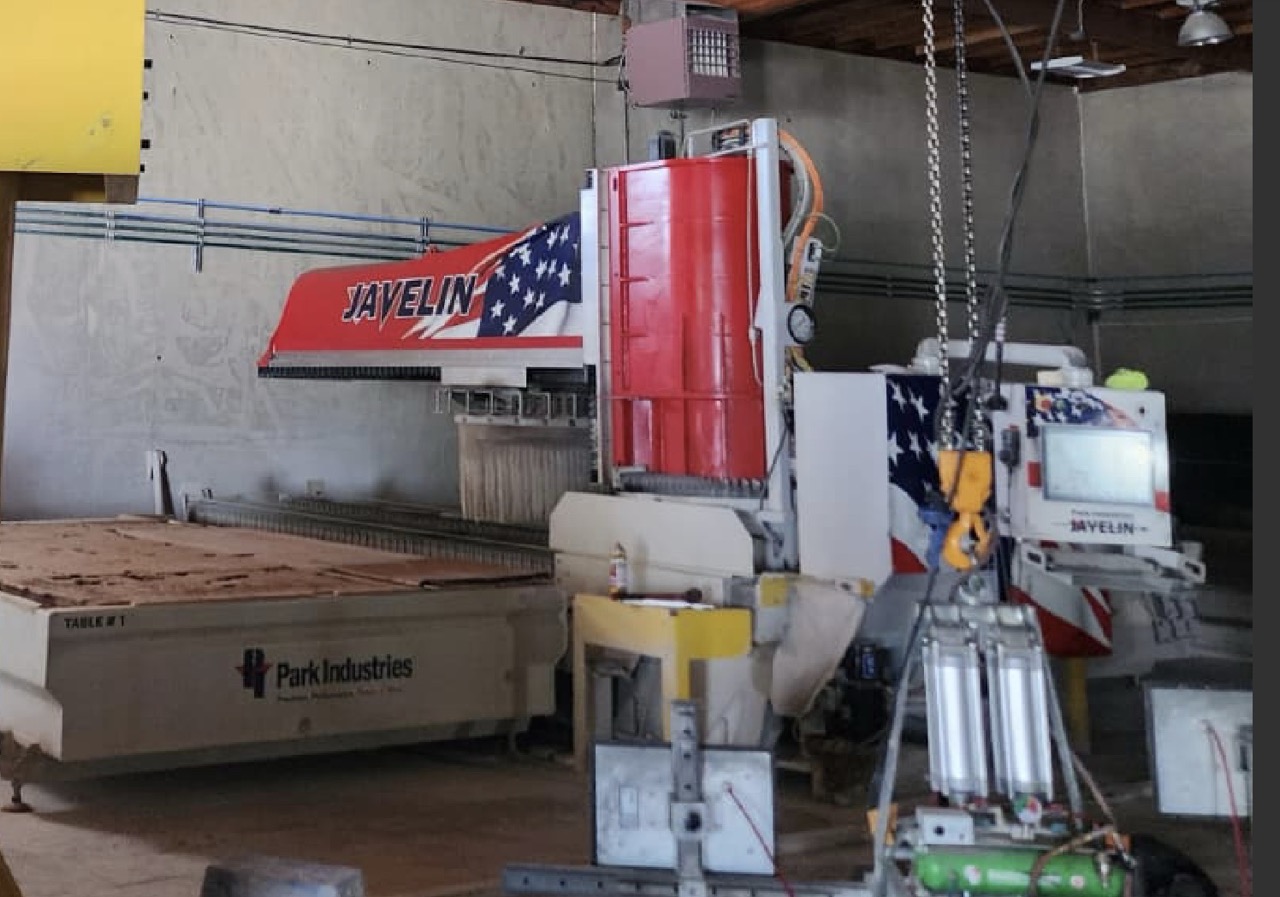

Dual cutting tables

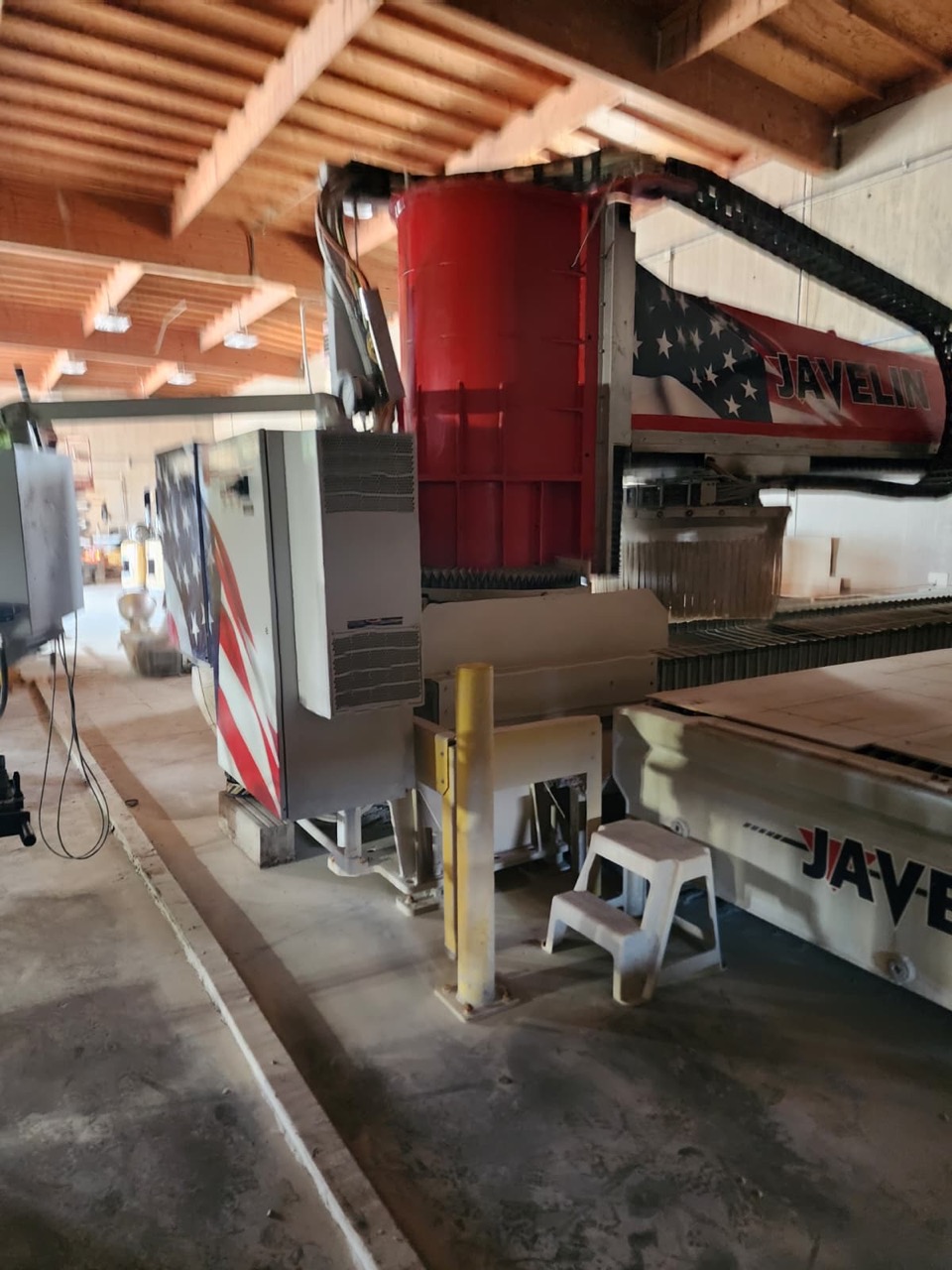

Three-sided machine access

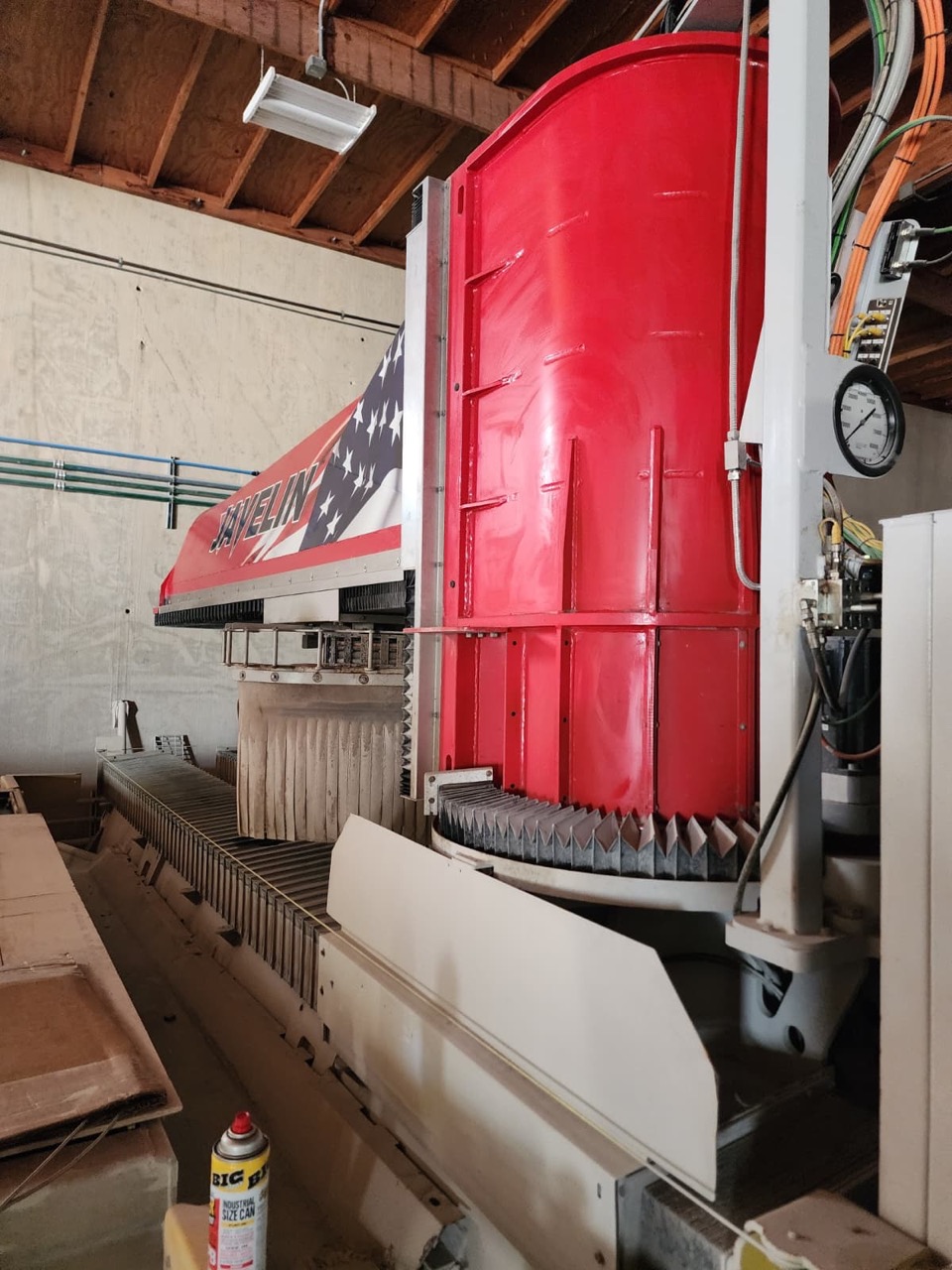

Heavy-duty bridge construction
CNC touchscreen/operator control
Automatic cutting sequence capability
Nesting and programming capability
Designed for high-production countertop and architectural stone fabrication
Approximate Machine Specifications
Work envelope: 144″ x 88″
Blade capacity: 14″–16″
Saw motor: 27 HP
Machine weight: approximately 21,000 lb. excluding ancillary equipment
Electrical requirements: configuration dependent
Waterjet pump horsepower: configuration dependent
