Tormach 1100MX CNC Milling Machine, 2024 – Coolant System, 4th Axis, Never Used!
$31,000.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Travels:
X-axis: 18″
Y-axis: 11″
Z-axis: 16.25″
Spindle:
Power: 2 HP (1.49 kW).
Maximum Speed: 10,000 RPM.
Taper: BT30.
Transmission: Poly-V belt.
Feed Rates:
X and Y axes: 300 inches per minute (IPM).
Z axis: 230 IPM.
Table:
Size: 34″ x 9.5″
Slots: Three 5/8-inch slots.
Maximum weight capacity: 500 lbs.
Power Requirements:
Single-phase 230V, 50/60 Hz, 20A breaker.
Machine Dimensions:
Footprint: 69″ x 56.5″
Height: 96″
Weight: 1,600 lbs.

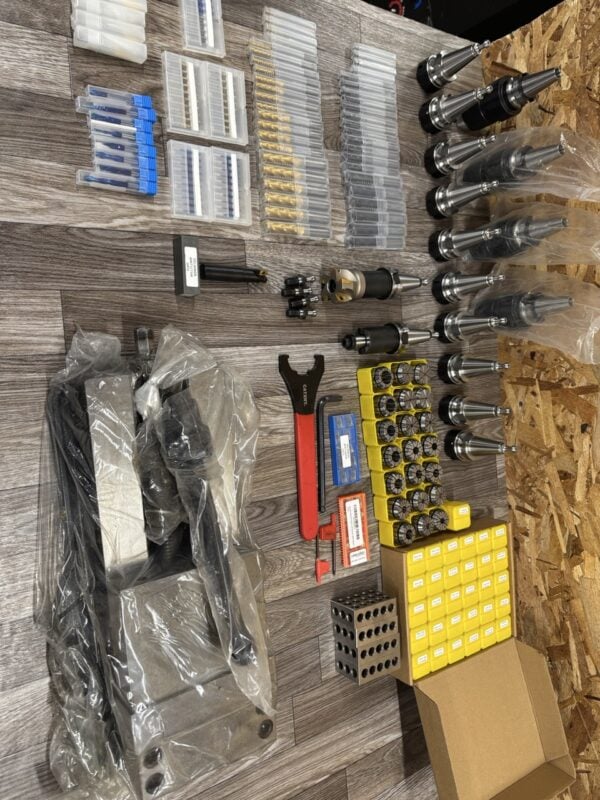

Equipped With:
PathPilot Control Software
System Control
Flood Coolant System
Oil Skimmer Kit
microARC 4-100 mm 4th Axis
Rigid Tapping
Automatic Oiler Kit
Lifting Bar Kit
Printed Manuals
