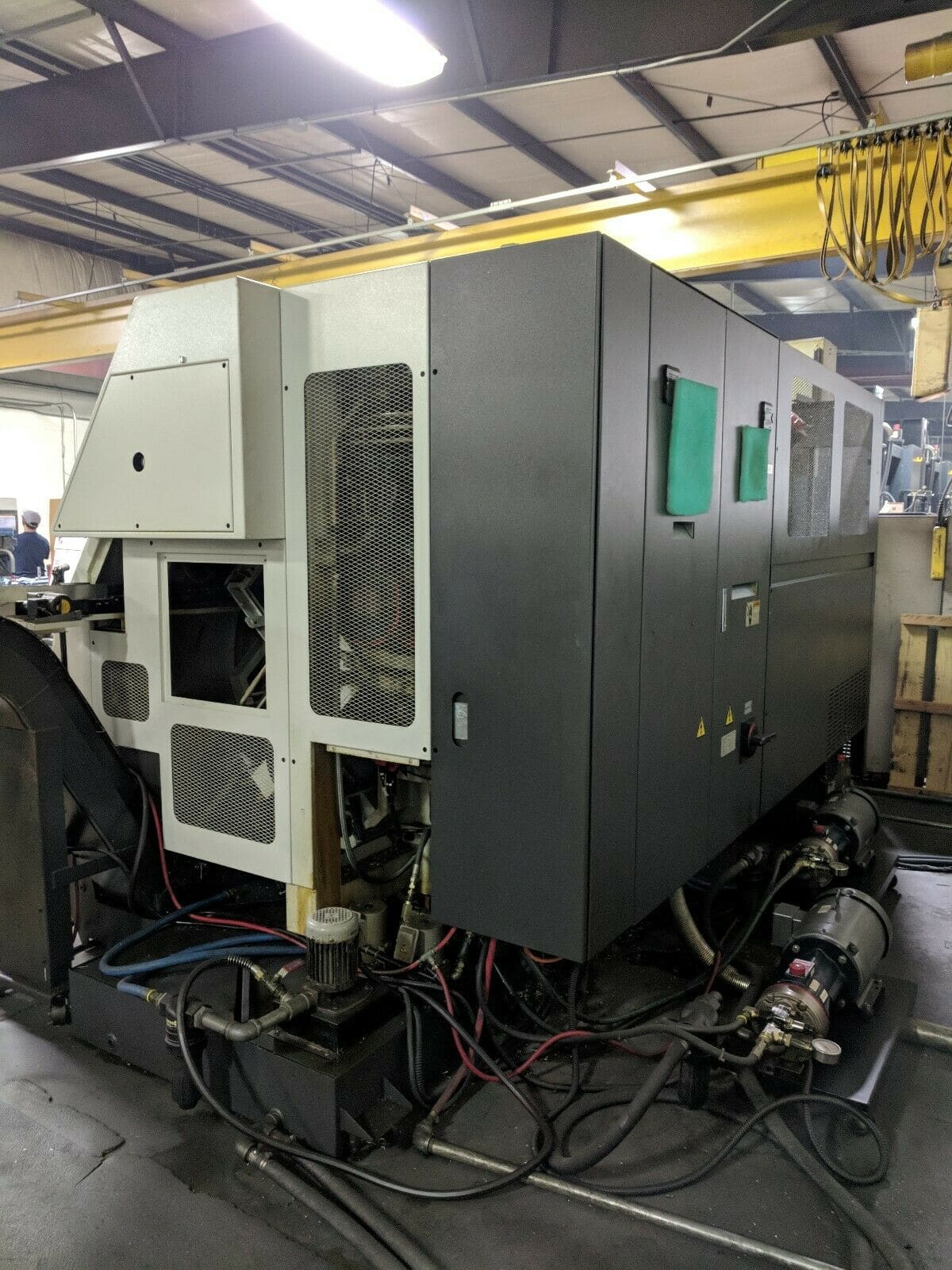

Nakamura Tome WT-300 Twin Turret Twin Spindle Turning Center, 2005

$179,900.00

This product is no longer available. For additional information, please fill out the form below.

MAX. SWING OVER BED: 12.2″
MAX. TURNING CAPACITY: 10.6″
MAXIMUM CENTER DISTANCE: 30.7″

UPPER TURRET: 30.7″
LOWER TURRET: 30.77
UPPER TURRET: 7.6″
LOWER TURRET: 7.6″

Y-AXIS TRAVEL (UPPER TURRET ONLY): 2.36″
B-AXIS SUB SPINDLE SLIDE: 33.46″
C-AXIS ON BOTH SPINDLES: .001º

NO. OF TURRETS: 2

TOOL POSITIONS ON EACH TURRET: 12
NO. OF STATIONS ON EACH TURRET: 24

SPINDLE BORE: 3.1″
SPINDLE NOSE: A2-6
SPINDLE SPEED RANGE: 50-4500 RPM

LIVE TOOLING HORSEPOWER: 5 HP

MACHINE DIMENSIONS: 166″ X 100″ X 89″ H (APPROX.)
WEIGHT: 28,000 LBS (APPROX.)

The machine on power up throws an error as you can see in the pictures. It is easily cleared out by the reset switch in the back cabinet. After it’s cleared out it doesn’t come back until the machine is powered down. We believe this happens because there was a fanuc robot used in the same cell and the error is a result of removing the robot from the cell. Something that if you wanted to fix, should be simple.
