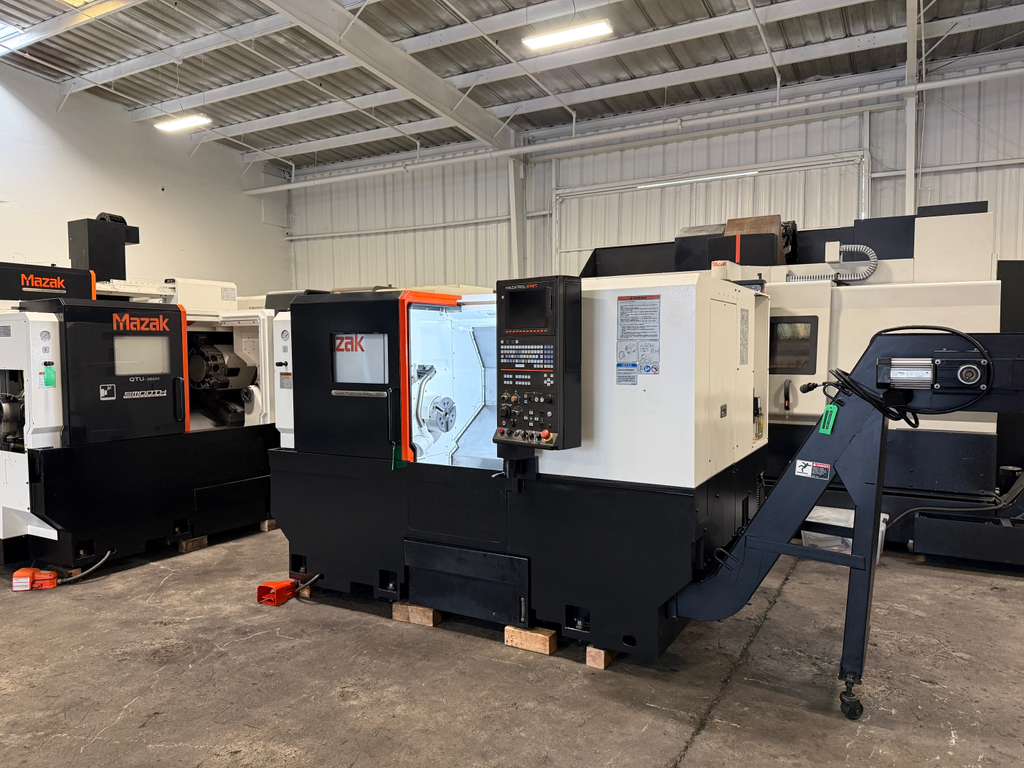

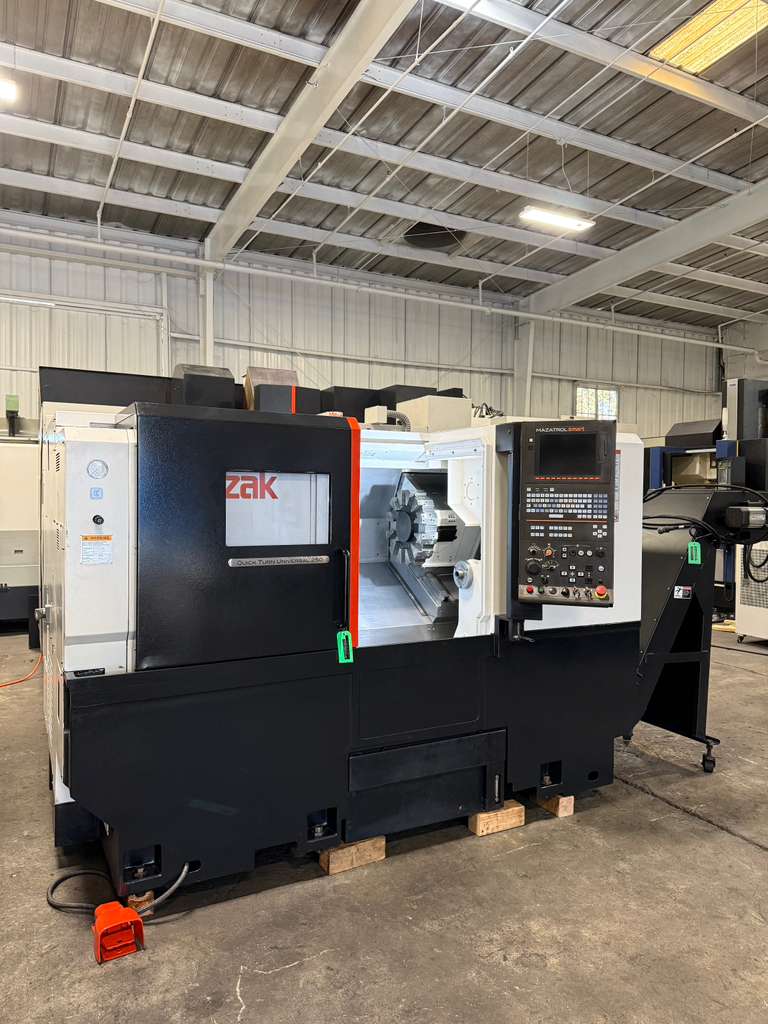

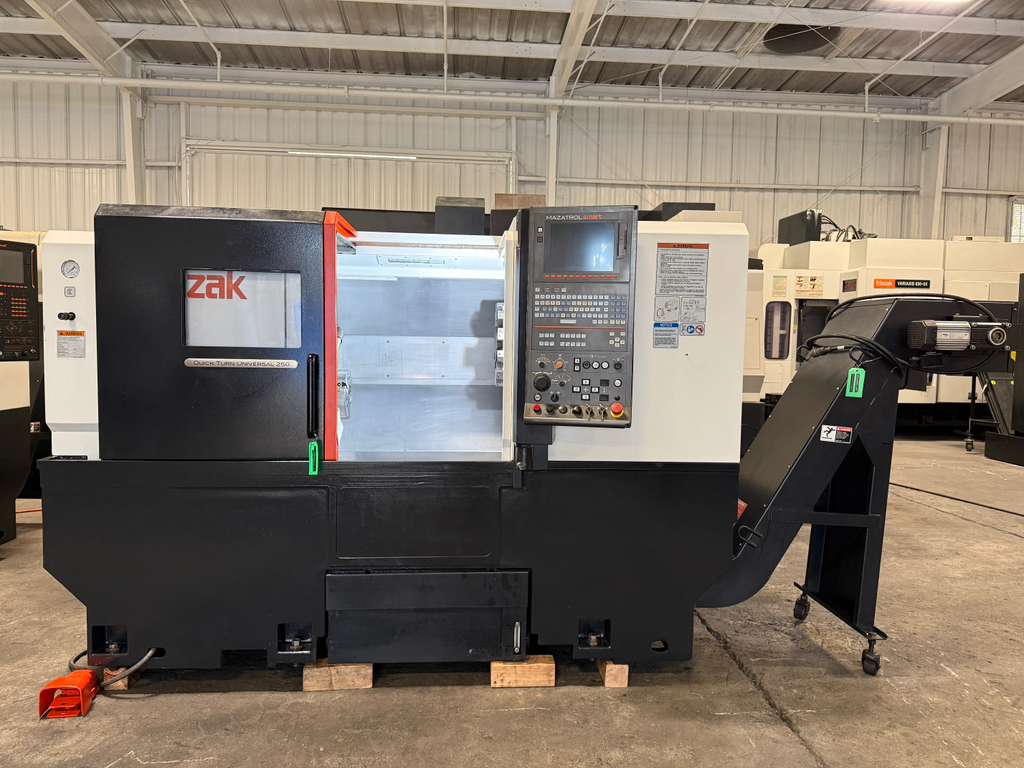

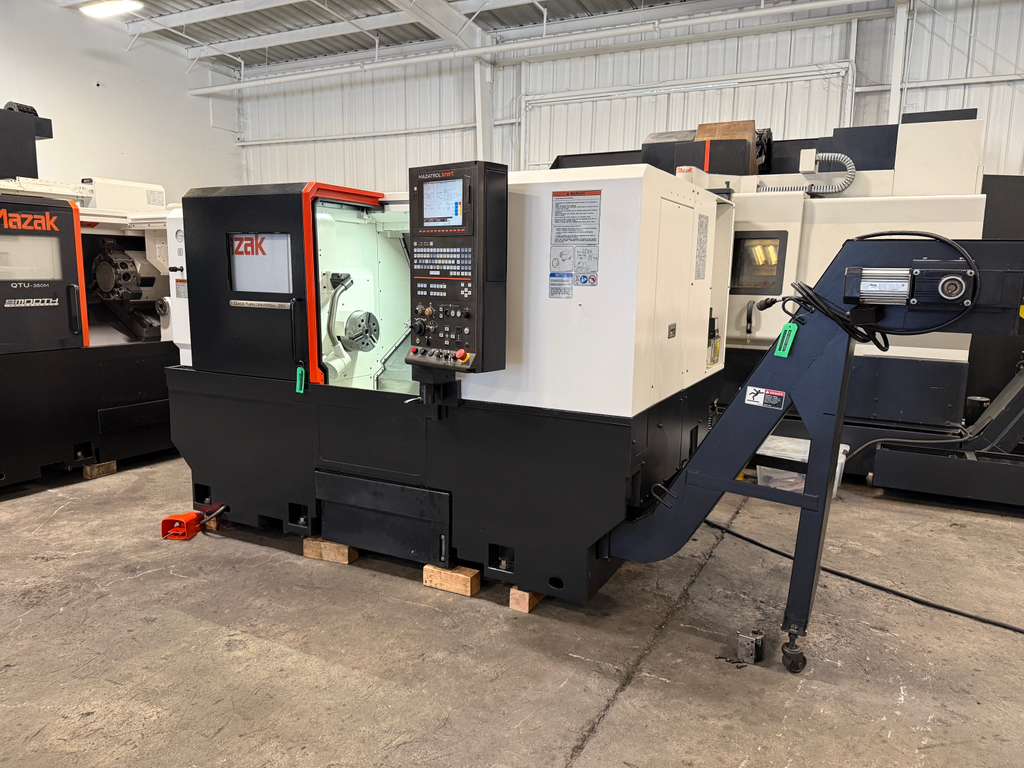

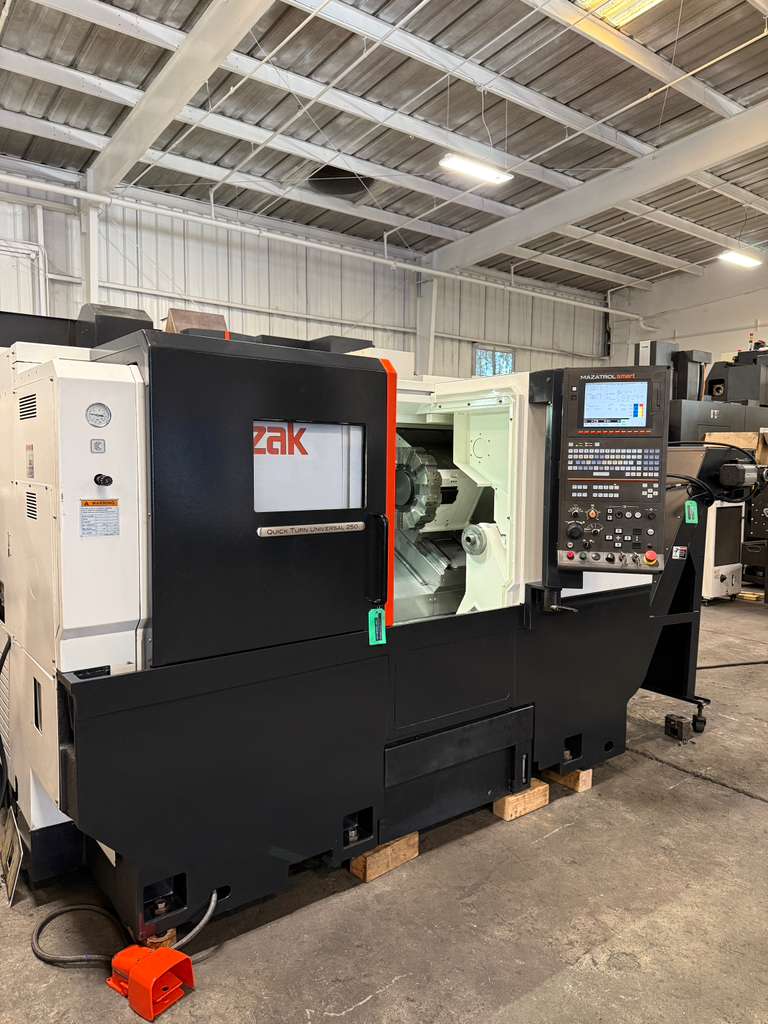

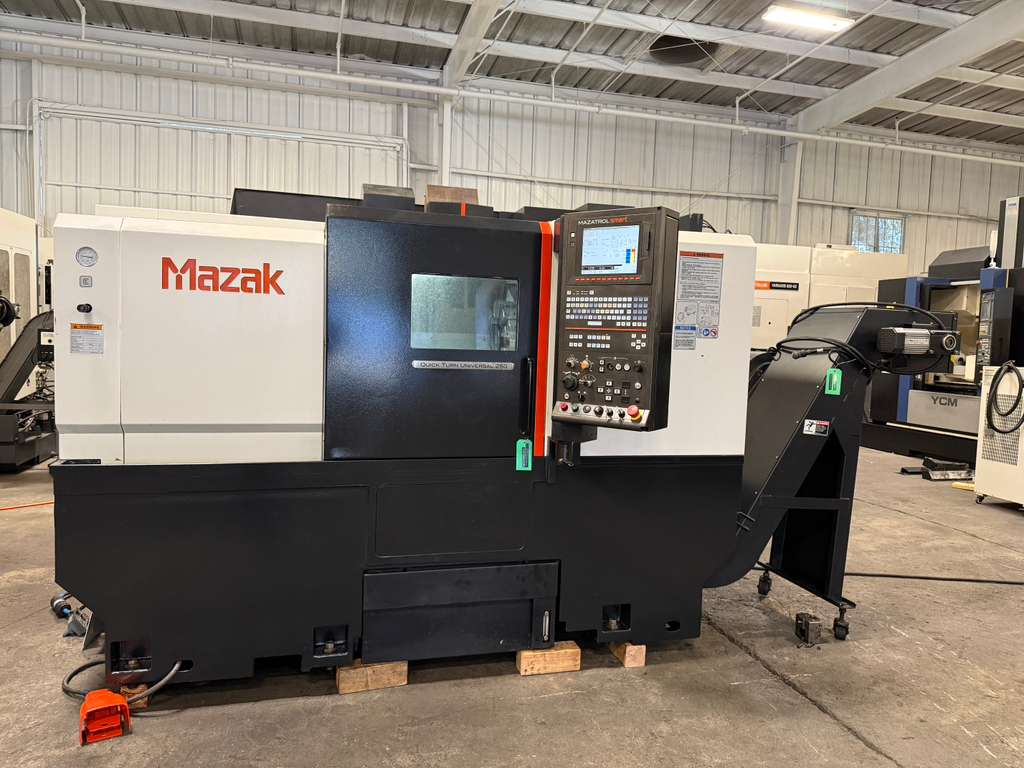

MAZAK QUICK TURN UNIVERSAL 250 CNC LATHE, 2015 – Tool Setter, Tailstock, W-Axis

Name: MAZAK QUICK TURN UNIVERSAL 250 CNC LATHE, 2015 - Tool Setter, Tailstock, W-Axis
SKU: 47564328826

$18,799.20

MAZAK QUICK TURN UNIVERSAL 250 CNC LATHE, 2015 - Tool Setter, Tailstock, W-Axis - Image 2

MAZAK QUICK TURN UNIVERSAL 250 CNC LATHE, 2015 - Tool Setter, Tailstock, W-Axis - Image 3

MAZAK QUICK TURN UNIVERSAL 250 CNC LATHE, 2015 - Tool Setter, Tailstock, W-Axis - Image 4

MAZAK QUICK TURN UNIVERSAL 250 CNC LATHE, 2015 - Tool Setter, Tailstock, W-Axis - Image 5

MAZAK QUICK TURN UNIVERSAL 250 CNC LATHE, 2015 - Tool Setter, Tailstock, W-Axis - Image 6

MAZAK QUICK TURN UNIVERSAL 250 CNC LATHE, 2015 - Tool Setter, Tailstock, W-Axis - Image 7

MAZAK QUICK TURN UNIVERSAL 250 CNC LATHE, 2015 - Tool Setter, Tailstock, W-Axis - Image 8

MAZAK QUICK TURN UNIVERSAL 250 CNC LATHE, 2015 - Tool Setter, Tailstock, W-Axis - Image 9

MAZAK QUICK TURN UNIVERSAL 250 CNC LATHE, 2015 - Tool Setter, Tailstock, W-Axis - Image 10

MAZAK QUICK TURN UNIVERSAL 250 CNC LATHE, 2015 - Tool Setter, Tailstock, W-Axis - Image 11

MAZAK QUICK TURN UNIVERSAL 250 CNC LATHE, 2015 - Tool Setter, Tailstock, W-Axis - Image 12

MAZAK QUICK TURN UNIVERSAL 250 CNC LATHE, 2015 - Tool Setter, Tailstock, W-Axis - Image 13

MAZAK QUICK TURN UNIVERSAL 250 CNC LATHE, 2015 - Tool Setter, Tailstock, W-Axis - Image 14

MAZAK QUICK TURN UNIVERSAL 250 CNC LATHE, 2015 - Tool Setter, Tailstock, W-Axis - Image 15

MAZAK QUICK TURN UNIVERSAL 250 CNC LATHE, 2015 - Tool Setter, Tailstock, W-Axis - Image 16

MAZAK QUICK TURN UNIVERSAL 250 CNC LATHE, 2015 - Tool Setter, Tailstock, W-Axis - Image 17

MAZAK QUICK TURN UNIVERSAL 250 CNC LATHE, 2015 - Tool Setter, Tailstock, W-Axis - Image 18

MAZAK QUICK TURN UNIVERSAL 250 CNC LATHE, 2015 - Tool Setter, Tailstock, W-Axis - Image 19

MAZAK QUICK TURN UNIVERSAL 250 CNC LATHE, 2015 - Tool Setter, Tailstock, W-Axis - Image 20

MAZAK QUICK TURN UNIVERSAL 250 CNC LATHE, 2015 - Tool Setter, Tailstock, W-Axis - Image 21

MAZAK QUICK TURN UNIVERSAL 250 CNC LATHE, 2015 - Tool Setter, Tailstock, W-Axis - Image 22

MAZAK QUICK TURN UNIVERSAL 250 CNC LATHE, 2015 - Tool Setter, Tailstock, W-Axis - Image 23

MAZAK QUICK TURN UNIVERSAL 250 CNC LATHE, 2015 - Tool Setter, Tailstock, W-Axis - Image 24

MAZAK QUICK TURN UNIVERSAL 250 CNC LATHE, 2015 - Tool Setter, Tailstock, W-Axis - Image 25

MAZAK QUICK TURN UNIVERSAL 250 CNC LATHE, 2015 - Tool Setter, Tailstock, W-Axis - Image 26

MAZAK QUICK TURN UNIVERSAL 250 CNC LATHE, 2015 - Tool Setter, Tailstock, W-Axis - Image 27

MAZAK QUICK TURN UNIVERSAL 250 CNC LATHE, 2015 - Tool Setter, Tailstock, W-Axis - Image 28

This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:

Max Swing Over Bed: 27.4″
Max Turning Diameter: 16.25″
Max Distance Between Centers: 23.6″
Max Turning Length: 19.7″
X-Axis (Cross Travel): 8.5″
Z-Axis (Longitudinal Travel): 25″

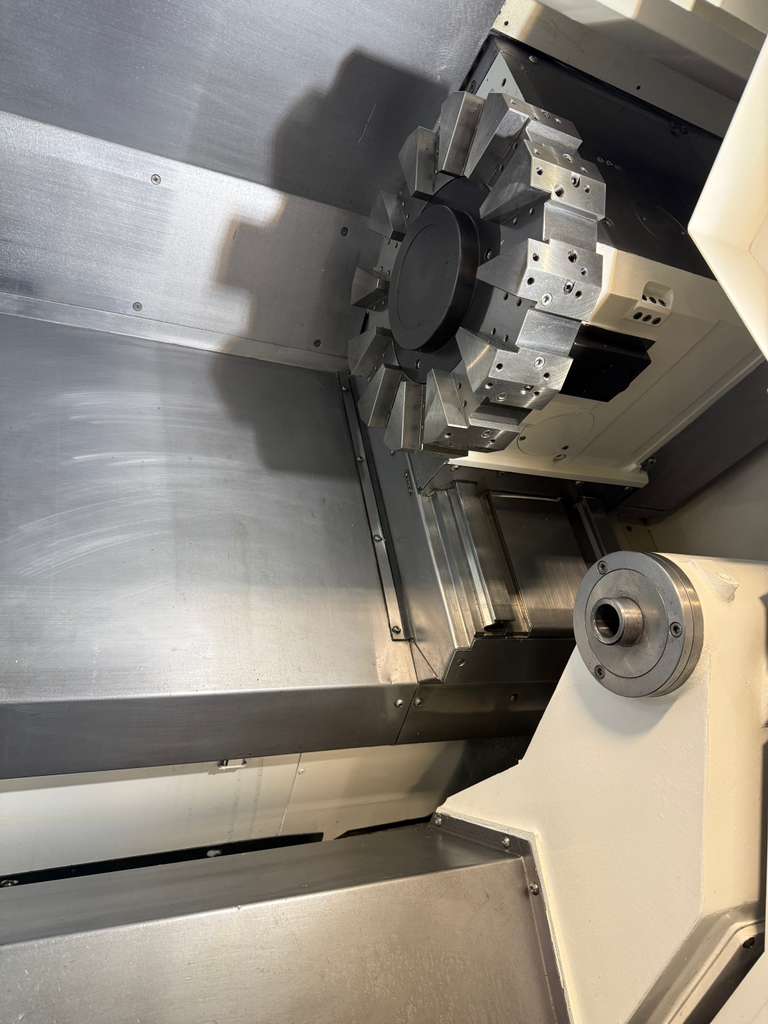

Tool Turret Positions: 12
Spindle Nose: A2-6
Chuck Size: 8″
Bar Capacity: 2″
Max Spindle Speed: 4,500 Rpm
Spindle Horsepower: 20 Hp
Approximate Machine Dimensions: 108″ X 84″ X 90″
Approximate Machine Weight: 11,500lb

Equipped With:

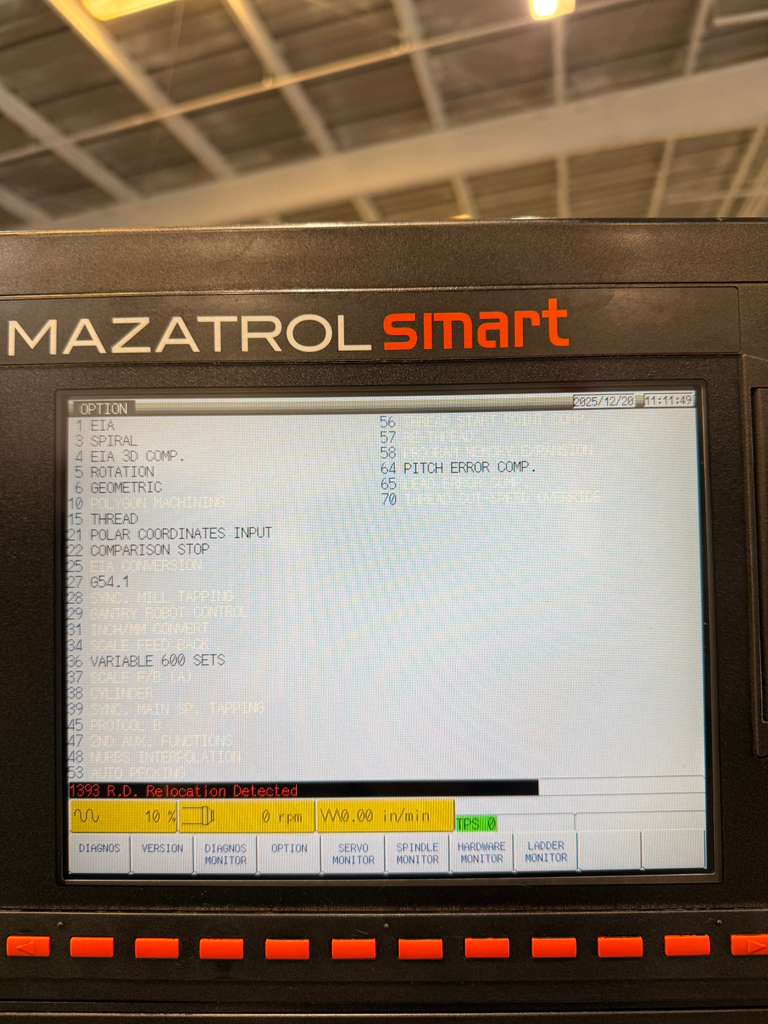

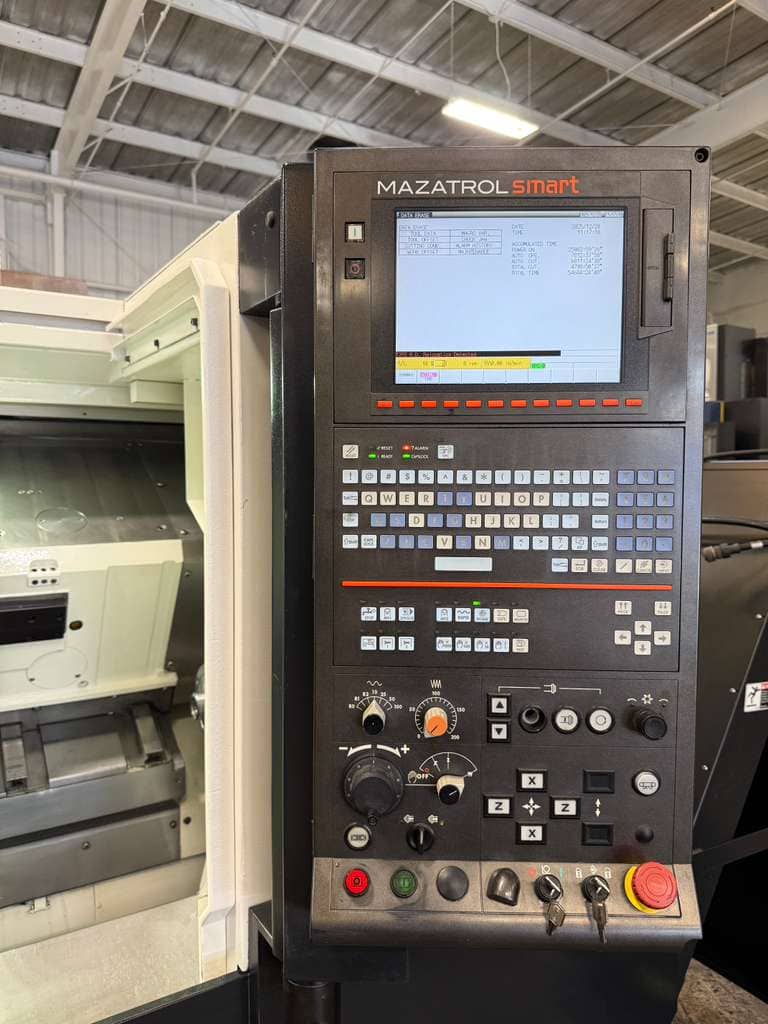

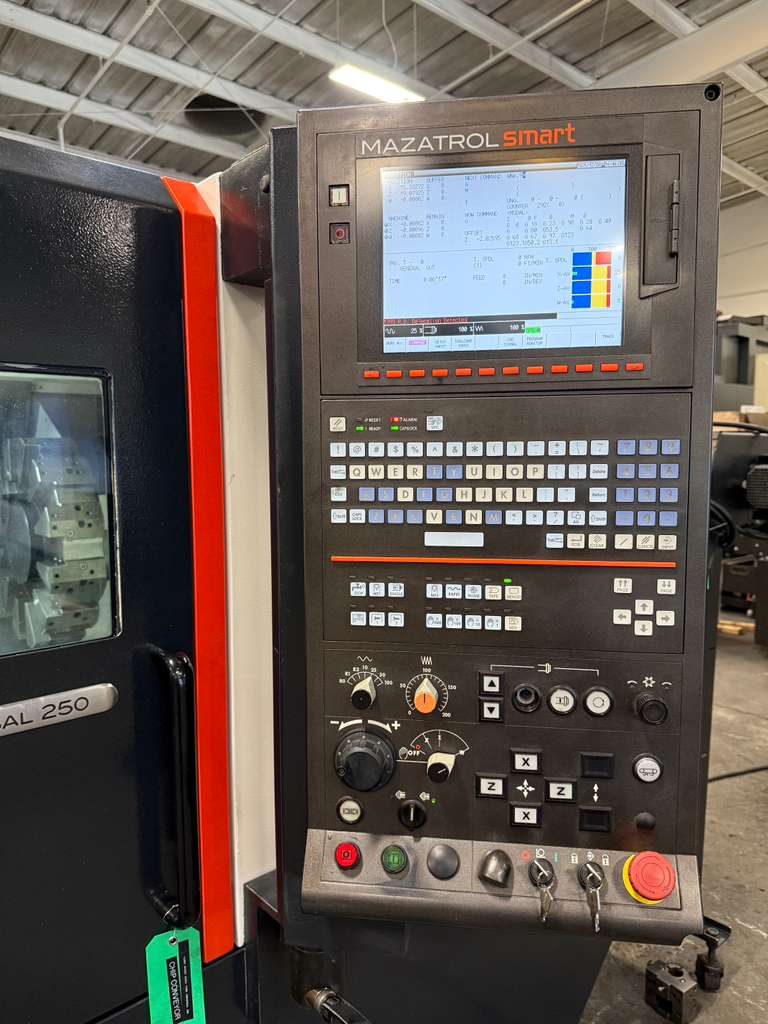

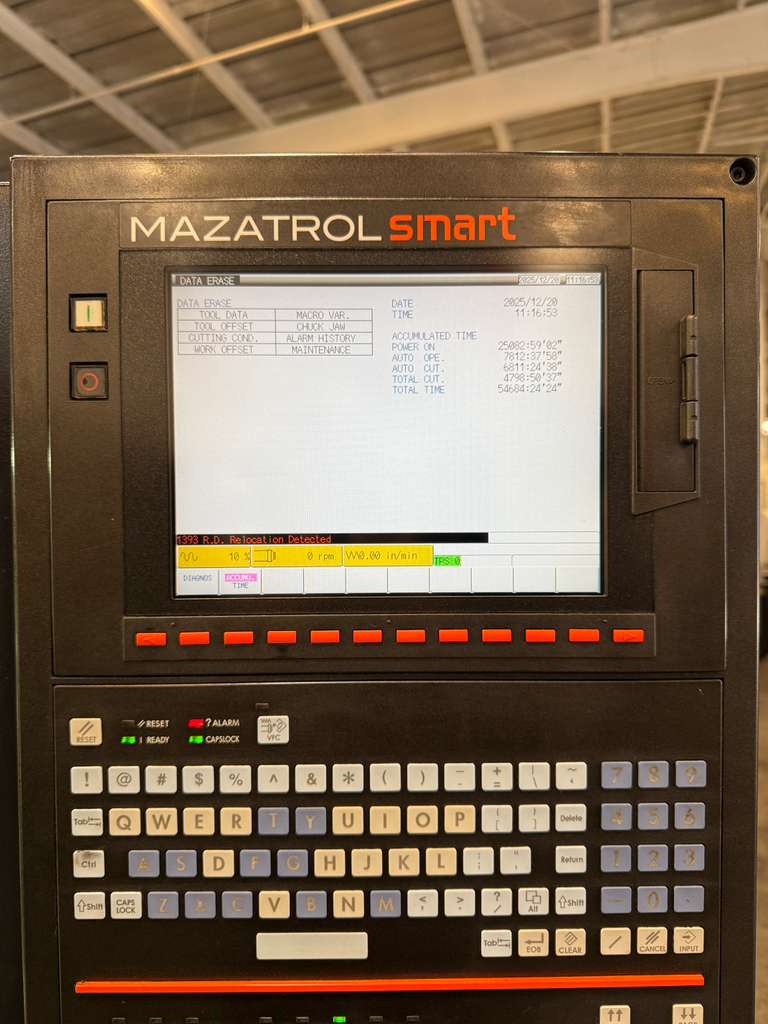

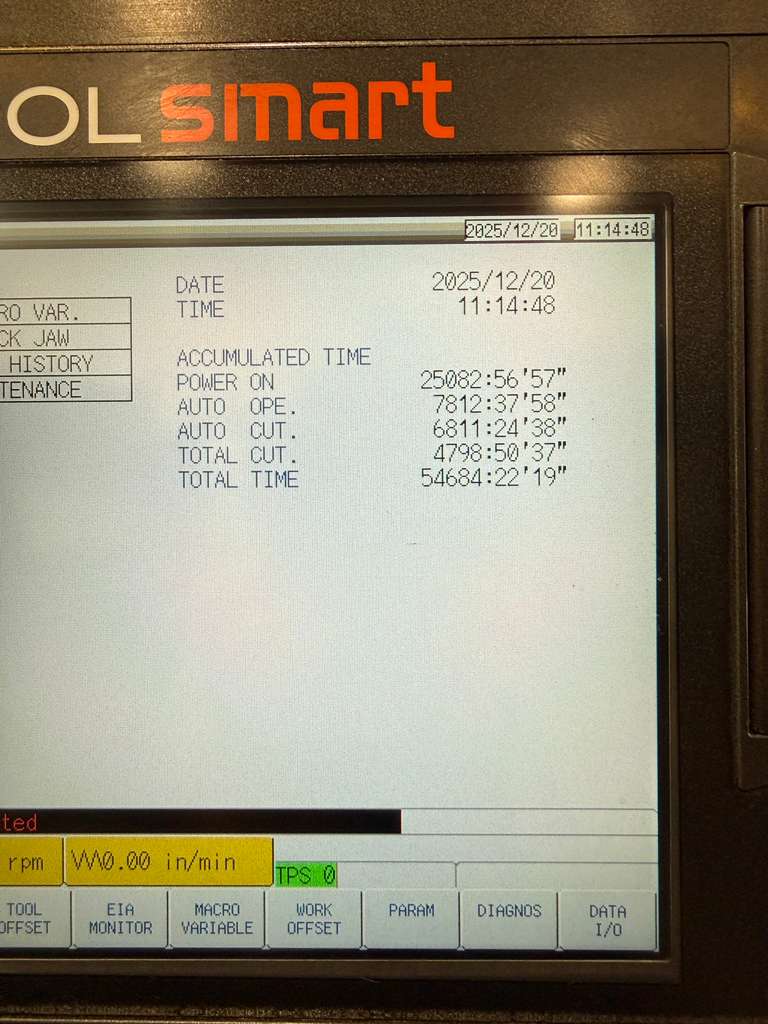

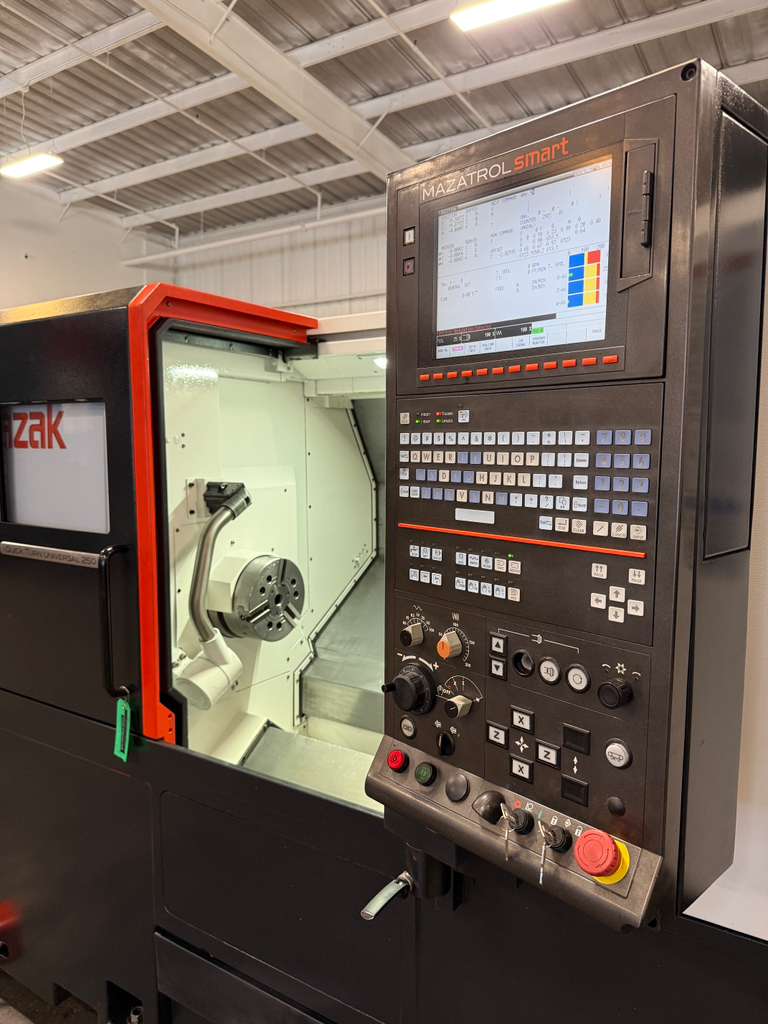

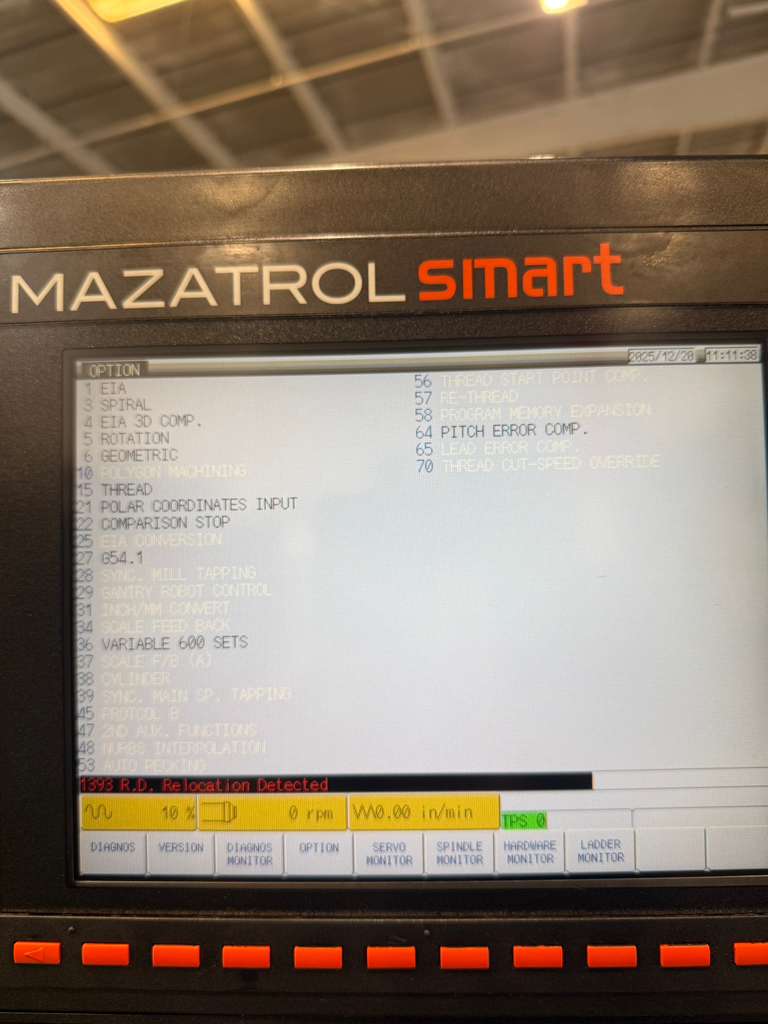

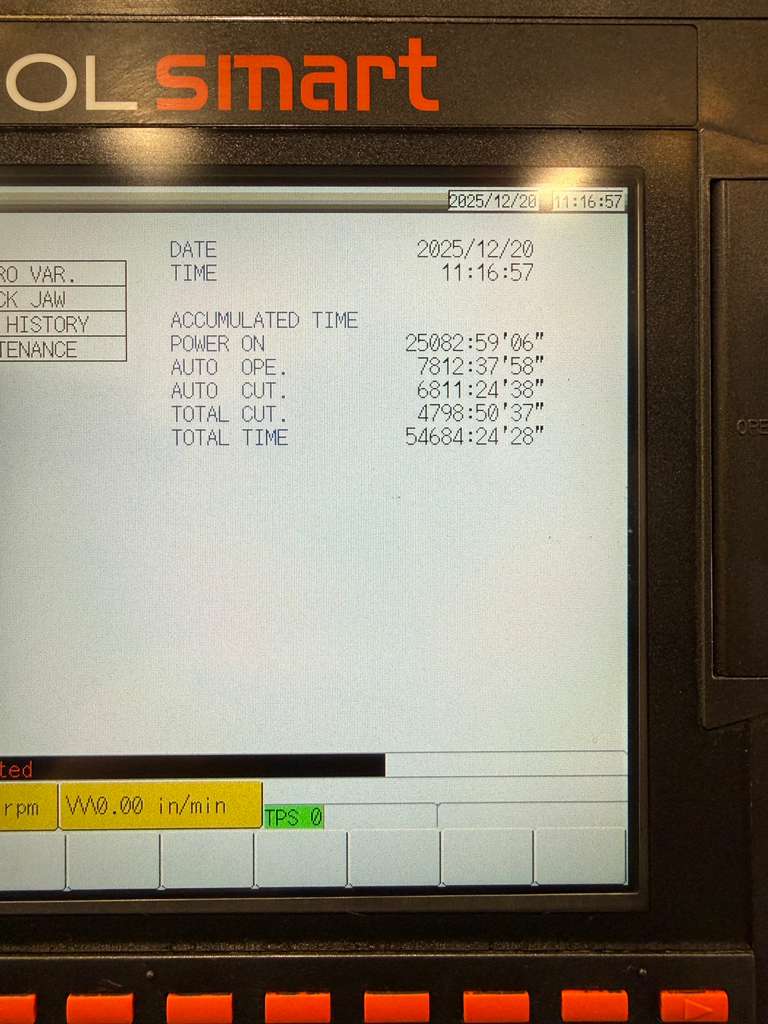

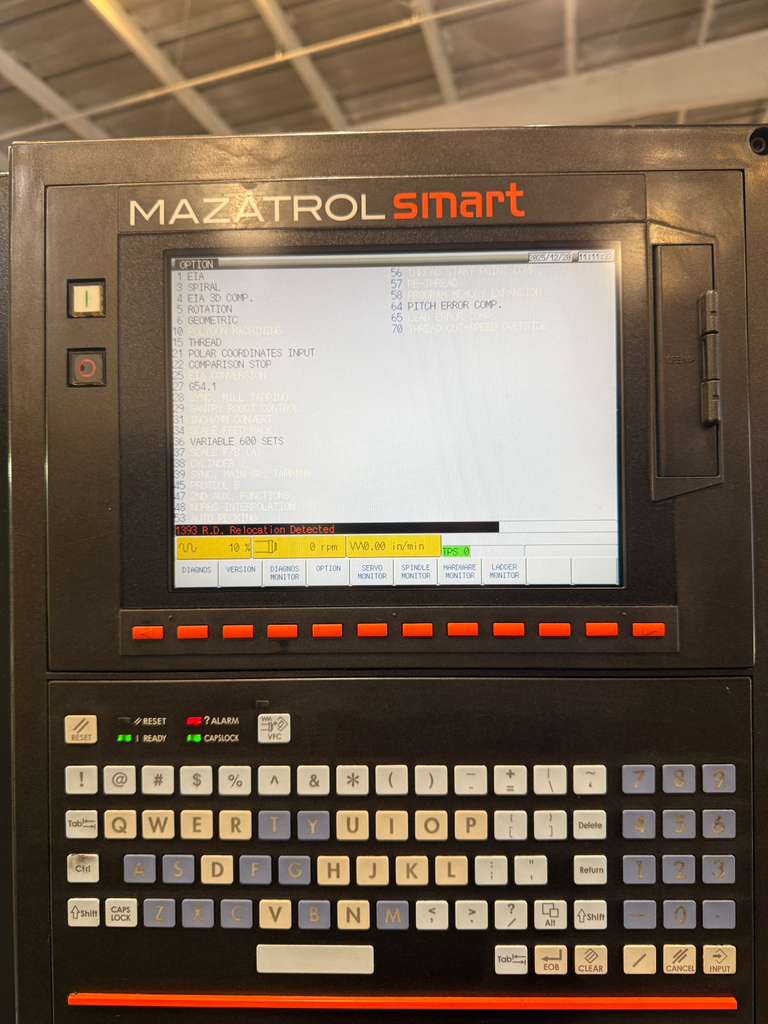

Mazatrol Smart Cnc Control
W Axis Control

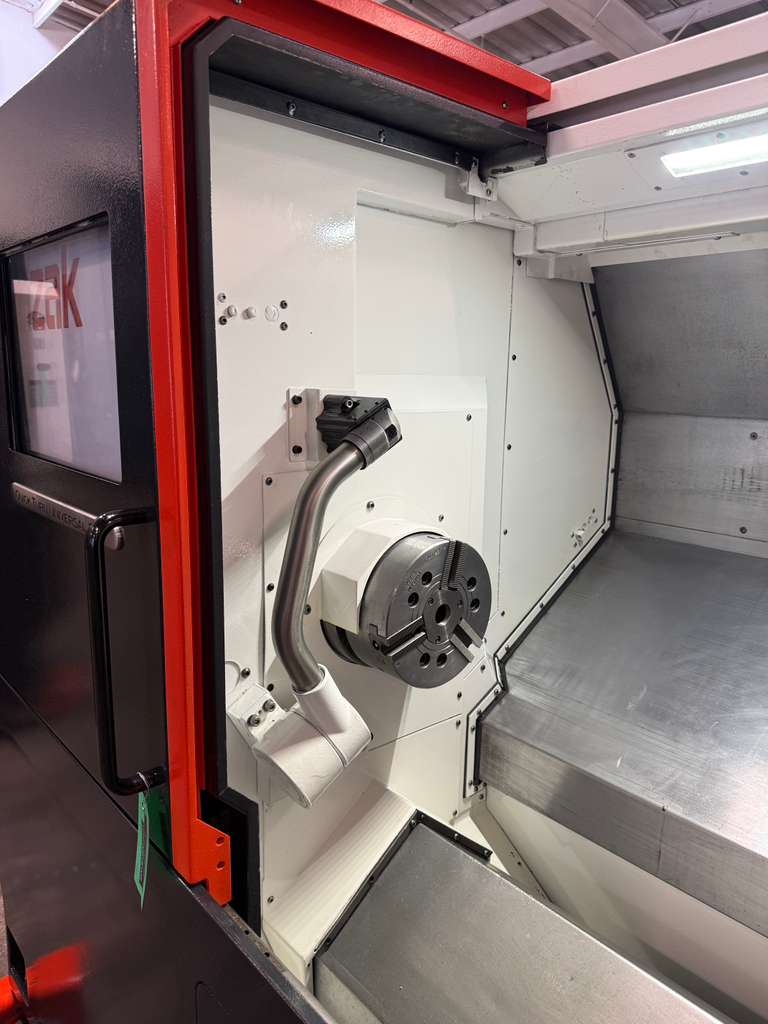

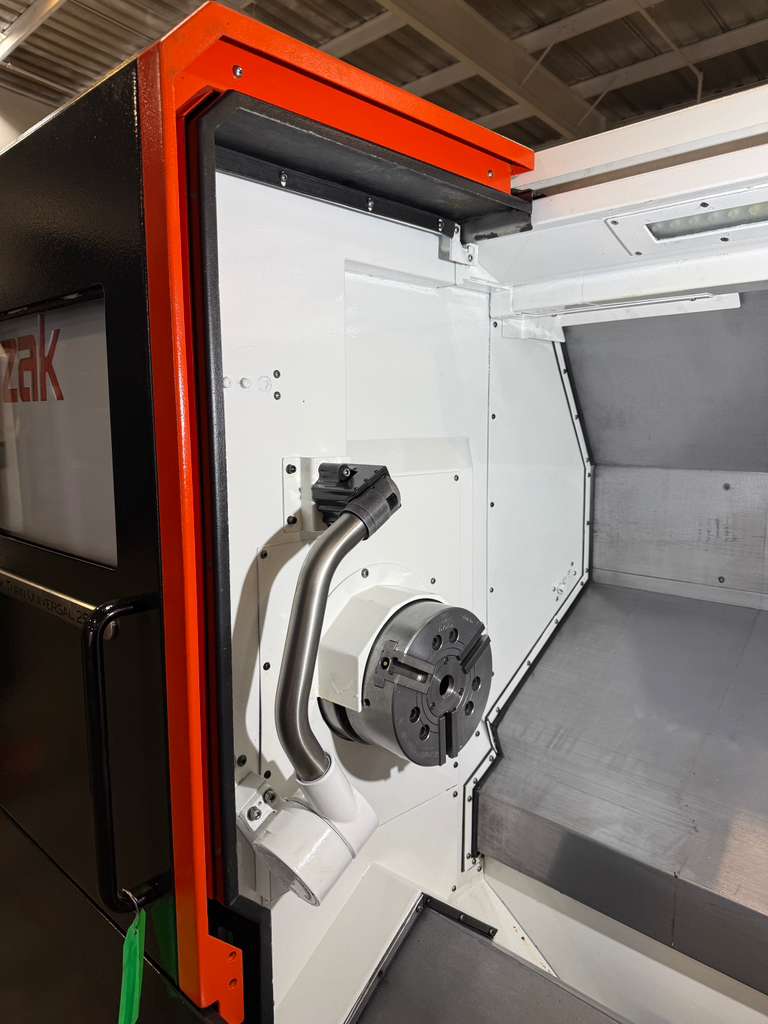

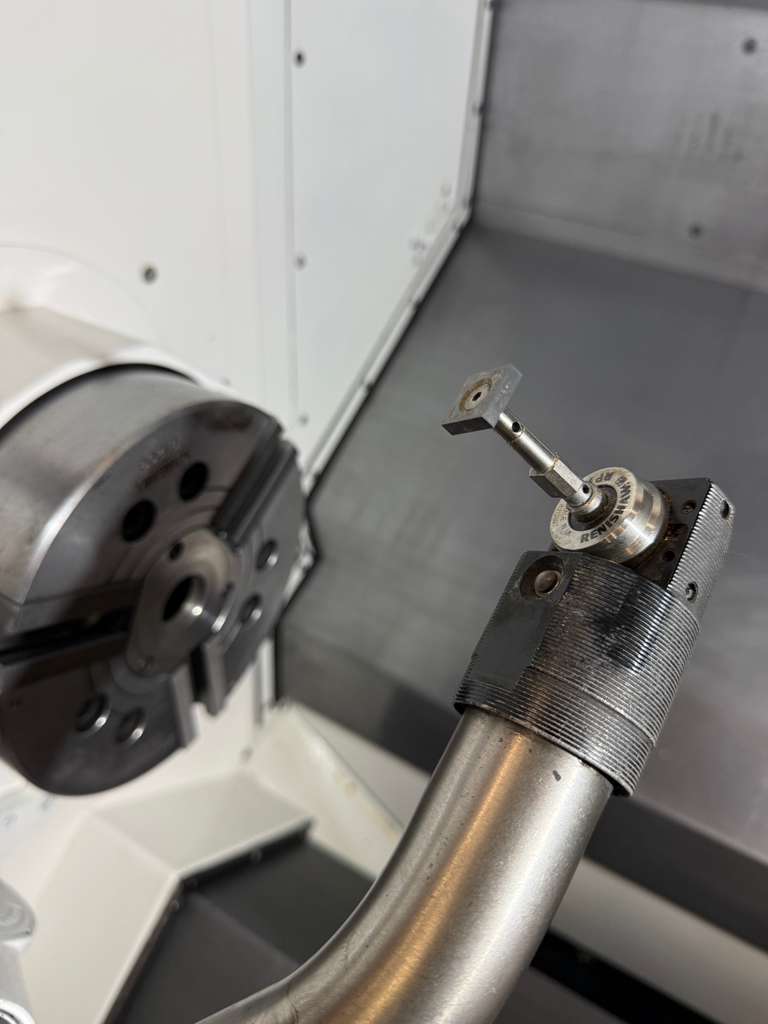

Tool Setter
Tailstock
Chip Conveyor

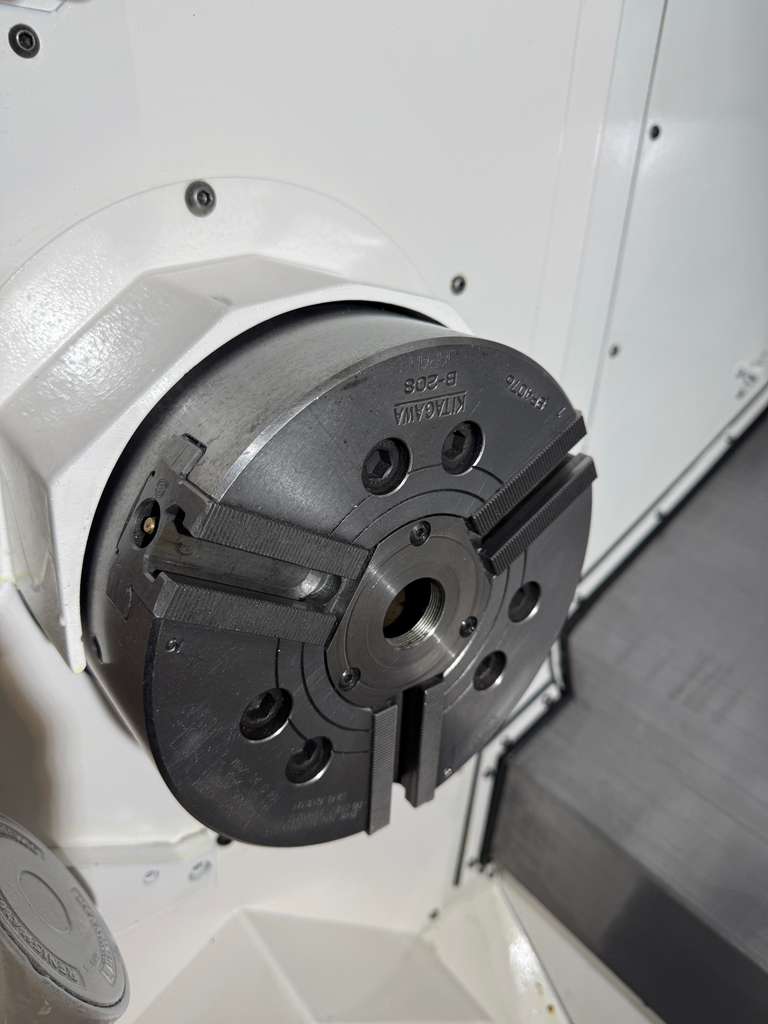

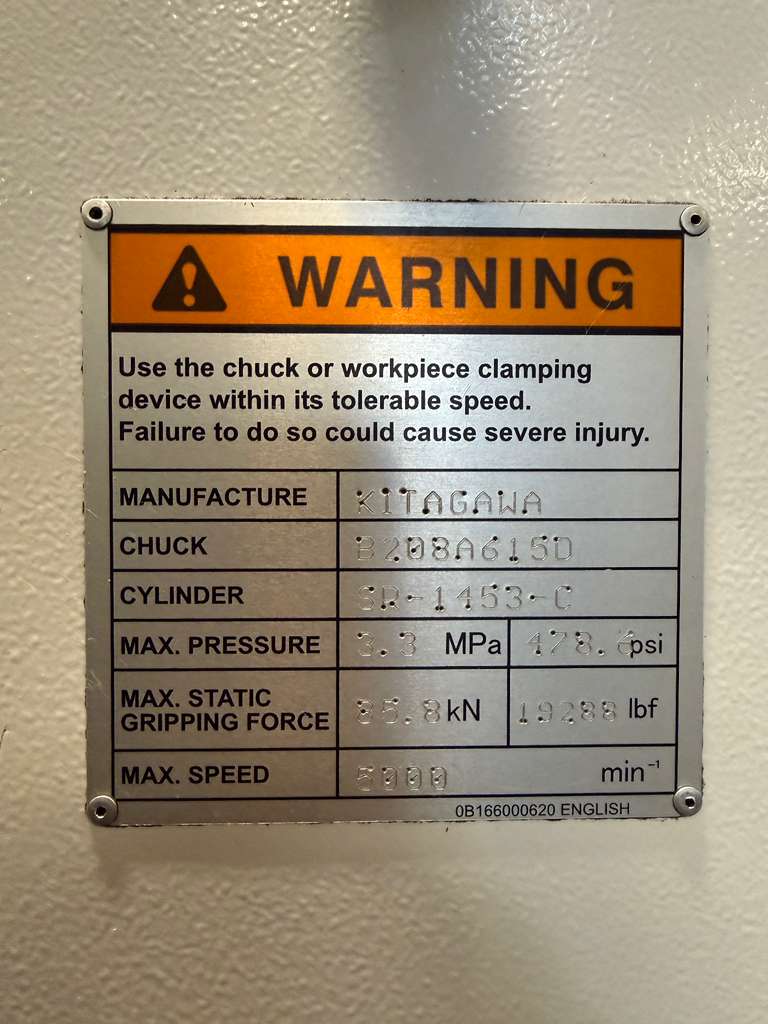

Kitagawa B-208 8″ Chuck
